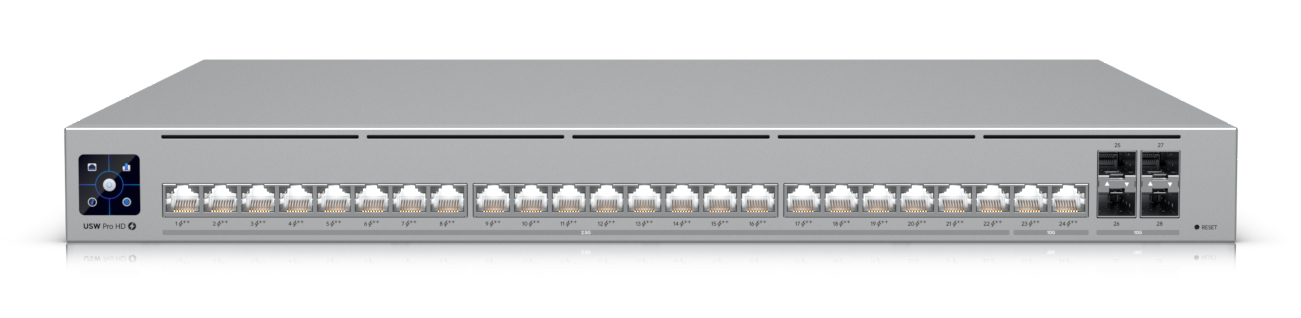

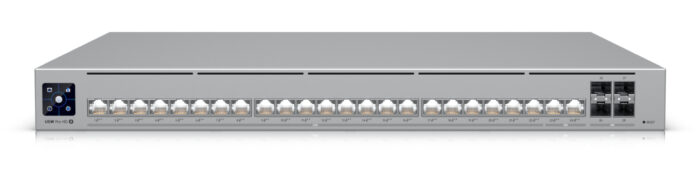

Ubiquiti Switch Pro HD 24 PoE
Write a review below |
5/5
Excl. VAT: £860.00
Incl. VAT: £1,032.00
DISCOUNTED QUOTE
Want it by Tomorrow? Order before 4:00 PM for Next Business Day Delivery.
Availability
In stock
Condition New
In stock
Other Range of Ubiquiti Unifi 24 Ports Switches
Ubiquiti Networks UniFi Enterprise XG 24 Managed L3 10G Ethernet Stainless steel (USW-ENTERPRISEXG-24)
SKU:
USW-ENTERPRISEXG-24
Available on backorder
Call For Price
Ubiquiti ECS-24-PoE UniFi Enterprise 24-Port L3 Managed Switch
SKU:
ECS-24-POE
Out of stock
Call For Price
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design
SKU:
ECS-24S-PoE
In stock
Call For Price
Ubiquiti UniFi network switch Managed L2 Gigabit Ethernet (10/100/1000) (USW-24)
SKU:
USW-24
In stock
Excl. VAT: £171.00Incl. VAT: £205.20
Ubiquiti UniFi 24-Port PoE Switch (USW-24-POE)
SKU:
USW-24-POE
In stock
Excl. VAT: £295.00Incl. VAT: £354.00
Ubiquiti UniFi network switch Managed L2/L3 Gigabit Ethernet Silver (USW-PRO-24)
SKU:
USW-Pro-24
In stock
Excl. VAT: £305.00Incl. VAT: £366.00
Ubiquiti Unifi 24 Port Switch (USW-PRO-MAX-24)
SKU:
USW-Pro-Max-24
In stock
Excl. VAT: £340.00Incl. VAT: £408.00
Ubiquiti UniFi 24port Gigabit PoE Switch (US-24-250W)
SKU:
US-24-250W
In stock
Excl. VAT: £379.00Incl. VAT: £454.80
Ubiquiti Networking Switch USW-Pro-HD-24
SKU:
USW-Pro-HD-24
In stock
Excl. VAT: £515.00Incl. VAT: £618.00
Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (PoE) (USW-Pro-24-POE)
SKU:
USW-Pro-24-POE
In stock
Excl. VAT: £596.00Incl. VAT: £715.20
Ubiquiti L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Switch (USW-Pro-Max-24-PoE)
SKU:
USW-Pro-Max-24-PoE
In stock
Excl. VAT: £608.00Incl. VAT: £729.60
Ubiquiti USW-Enterprise-24-PoE Network Switch Managed L3 Gigabit Ethernet
SKU:
USW-Enterprise-24-PoE
In stock
Excl. VAT: £621.34Incl. VAT: £745.61
Ubiquiti Switch Pro HD 24 PoE
Specification
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) |
| Weight | Without mounting brackets: 6.4 kg (14.1 lb) With mounting brackets: 6.5 kg (14.3 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports (22) 2.5/1 GbE, 100/10 MbE RJ45 ports (4) 10/1G SFP+ ports |
| PoE interface | (24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 115 Gbps |
| Switching capacity | 230 Gbps |
| Forwarding rate | 171.12 Mpps |
| Power method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power supply | AC/DC, internal, 660W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 56W (Excluding PoE output) |
| Total available PoE | 600W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs QoS Pro AV |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.6.9 and later |
