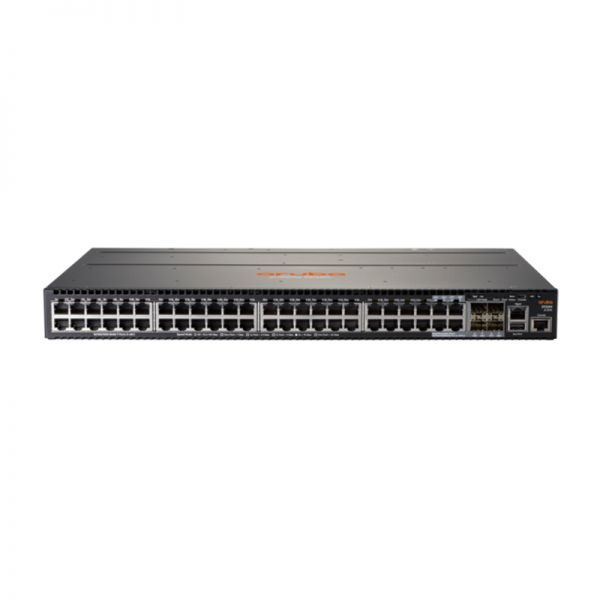

HPE Aruba JL321A 2930M Series 48G with 1-slot Managed Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch – Managed |
| Ports | 48 |
| Switch layer | L3 |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption | 111 W |
| Power over Ethernet (PoE) | No |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 112 Mpps |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 111 W |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 185 BTU/h |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 324.3 mm |
| Height | 43.9 mm |
| Weight | 4.6 kg |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
Buy new:
Excl. VAT: £3,517.65
Excl Sale. VAT: £2,990.00
Incl. VAT: £4,221.18
Incl Sale. VAT: £3,588.00
Delivery Date:
Monday, May 18
Order Within:
Loading timer...
Deliver to:
2 In Stock
2 In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
-15%
SALE
[product_pdf]
HPE Aruba JL321A 2930M Series 48G with 1-slot Managed Switch
| Brand | HPE |
| Type | Network Switch – Managed |
| Ports | 48 |
| Switch layer | L3 |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption | 111 W |
| Power over Ethernet (PoE) | No |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 112 Mpps |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 111 W |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 185 BTU/h |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 324.3 mm |
| Height | 43.9 mm |
| Weight | 4.6 kg |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
Description
HPE Aruba JL321A 2930M Series 48G with 1-slot Managed Switch
Performance and Power at the Edge
The HPE Aruba Networking 2930M Switch Series is designed with a powerful ProVision ASIC, to enable the mobile campus with low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
Plug and play with up to 10 chassis stacking allowing automated failover enhances network resiliency and RPS support delivers power redundancy.
Supports hot swappable and redundant PoE power for wireless access points, cameras and phones and can easily scale to 1440W with choice of power supplies. High power PoE models deliver up to 60W of PoE per port.
High-Performance Layer 3 Access Switches
The HPE Aruba Networking 2930M Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Dynamic Segmentation, sFlow, IPv6 with no software licensing required.
Modular stacking (10 chassis) and modular 10 GbE (SFP+) and 40 GbE (QSFP+) uplinks. HPE Smart Rate multi-gigabit Ethernet models support high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE is needed.
Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.
Technical Table
| Brand | HPE |
| Type | Network Switch – Managed |
| Ports | 48 |
| Switch layer | L3 |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power consumption | 111 W |
| Power over Ethernet (PoE) | No |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 112 Mpps |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 111 W |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 185 BTU/h |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 324.3 mm |
| Height | 43.9 mm |
| Weight | 4.6 kg |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
