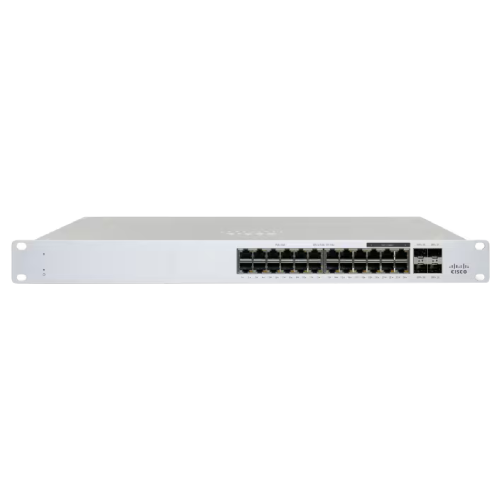

Cisco Meraki MS130-24P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White(MS130-24P-HW)
Write a review below |
5/5
Excl. VAT: £961.59
Incl. VAT: £1,153.91
DISCOUNTED QUOTE
Want it by Tomorrow? Order before 4:00 PM for Next Business Day Delivery.
Availability
In stock
Condition New
In stock
Cisco Meraki MS130-24P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Description
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3bt |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| Virtual LAN features | |
| Virtual LAN features | Voice VLAN |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Mean time between failures (MTBF) | 768152 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Number of management ports | 1 pc(s) |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Security | |
| Authentication | MAC-based authentication |
| Security algorithms | SNMP |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast features | Multicast traffic suppression |
| Protocols | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 768152 h |
| Firmware upgradeable | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 406 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 34 mm |
| Weight | 5.5 kg |
