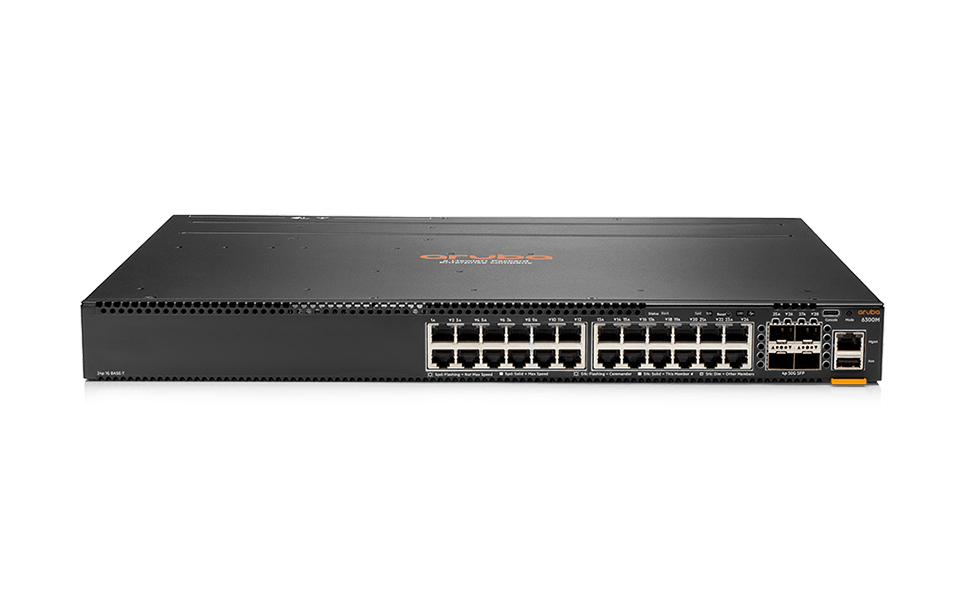

HPE Aruba JL664A CX 6300M 24 Ports Manageable Ethernet Switch (JL664A)

Name: HPE Aruba JL664A CX 6300M 24 Ports Manageable Ethernet Switch (JL664A) - T.I Digital Solution LTD
Brand: simple
SKU: JL664A
Price: 4587.14 GBP
Availability: InStock

Write a review below |

 5/5

SKU: JL664A

Excl. VAT: £4,587.14
Incl. VAT: £5,504.56

DISCOUNTED QUOTE

Want it by Tomorrow? Order before 4:00 PM for Next Business Day Delivery.

Availability

In stock

Condition New

In stock

Description
Reviews (0)

HPE Aruba JL664A CX 6300M 24 Ports Manageable Ethernet Switch

Specifications

Management features
Multicast support	Yes
Switch type	Managed
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Configuring Location Settings (CLI)	Yes
Network
MLD entries	4000
IPv6 multicast entries	8000
IPv4 multicast entries	8000
IGMP entries	8000
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Policy-based routing	Yes
Virtual LAN features
VLAN support	Yes
Data transmission
Number of multicast groups filtered	8000
Throughput	334 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Packet buffer memory	8 MB
MAC address table	32000 entries
Switching capacity	448 Gbit/s
Number of queues	8
Performance
Packet buffer memory	8 MB
Stackable	Yes
Physical stacking (units)	10
Processor frequency	1800 MHz
Noise level	28.6 dB
Internal memory	8192 MB
Flash memory	32000 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Technical details
Physical stacking (units)	10
Product colour	Black
Stackable	Yes
Processor frequency	1800 MHz
Noise level	28.6 dB
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Console port	USB
Optical fiber
Transmission distance (max)	10 km
Security
SSH/SSL support	Yes
Access Control List (ACL)	Yes
IGMP entries	8000
DHCP features	DHCP relay, DHCP server
Multicast features
Number of multicast groups filtered	8000
Multicast support	Yes
MLD entries	4000
IPv6 multicast entries	8000
IPv4 multicast entries	8000
Protocols
Routing protocols	OSPF, OSPFv3
Certificates
Certification	EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010
Memory
Packet buffer memory	8 MB
Internal memory	8192 MB
Flash memory	32000 MB
Design
Product colour	Black
Stackable	Yes
Certification	EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010
Rack mounting	Yes
Airflow direction	Front-to-back airflow
Number of fans	2 fan(s)
Power
Power consumption (max)	64 W
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Input current	3/1.2 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	15 – 90%
Operating temperature (T-T)	0 – 45 °C
Operating relative humidity (H-H)	15 – 95%
Operating altitude	0 – 3040 m
Non-operating altitude	0 – 4600 m
Weight & dimensions
Width	442 mm
Depth	385 mm
Height	44 mm
Weight	5.43 kg
Packaging data
Rack mount kit	Yes
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
