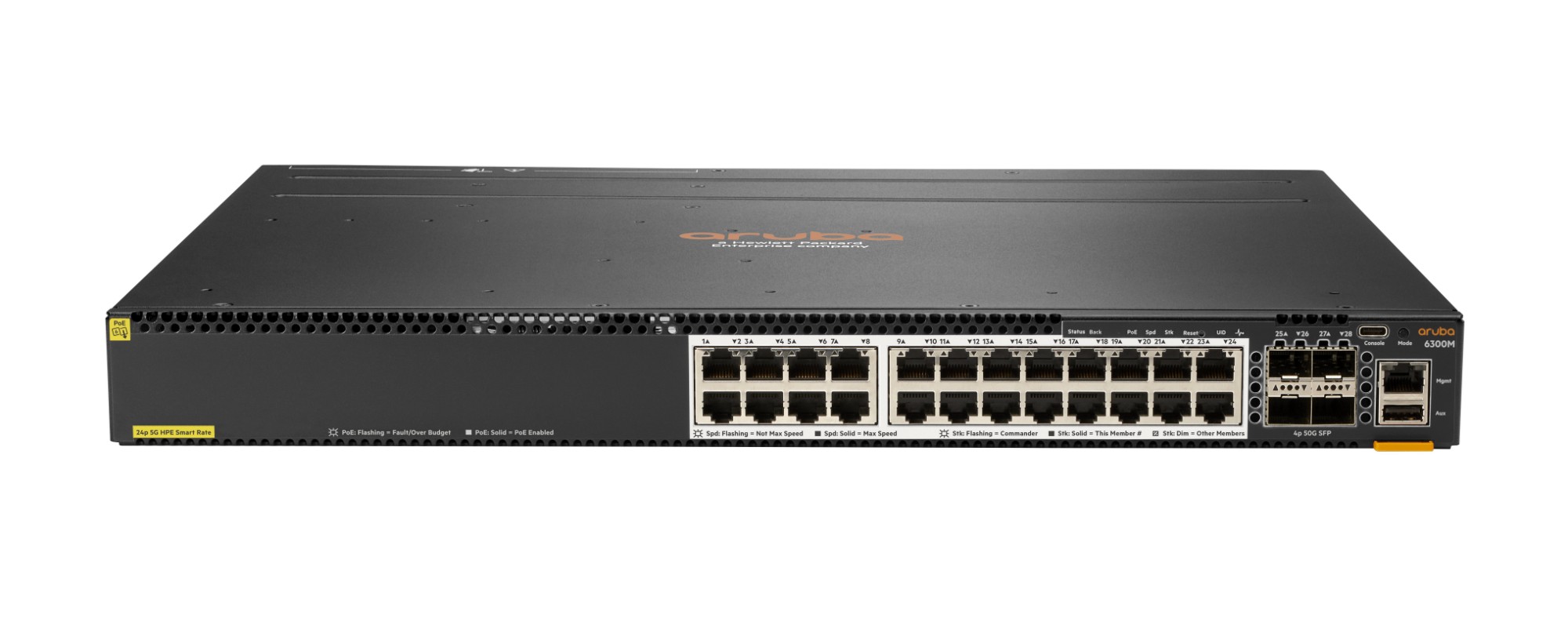

Aruba 6300M Managed L3 Power over Ethernet (JL660A)
Write a review below |
5/5
Excl. VAT: £4,374.85
Incl. VAT: £5,249.82
DISCOUNTED QUOTE
Want it by Tomorrow? Order before 4:00 PM for Next Business Day Delivery.
Availability
In stock
Condition New
In stock
Aruba 6300M Managed L3 Power over Ethernet (PoE) (JL660A)
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Physical stacking (units) | 10 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Optical fiber | |
| Transmission distance (max) | 10 km |
| Data transmission | |
| Throughput | 476 Mpps |
| Latency (1 Gbps) | 4.24 µs |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 29490 entries |
| Switching capacity | 640 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP, BGP4, IP, OSPF |
| Memory | |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 32 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Weight & dimensions | |
| Width | 252 mm |
| Depth | 381 mm |
| Height | 43.9 mm |
| Weight | 5.42 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Aruba JL660A 6300M Managed L3 PoE Switch UK
The JL660A Aruba 6300M is a powerful, modular Layer 3 switch designed to provide advanced networking capabilities with the flexibility to grow alongside your business. This Aruba CX switch is ideal for UK enterprises seeking high-performance, scalable solutions with Power over Ethernet (PoE) capabilities to support next-gen devices and applications.
Key Features of JL660A Aruba 6300M:
- 48-Port PoE+: Equipped with 48 high-speed PoE+ ports, the JL660A delivers seamless connectivity for a variety of devices, from IP phones and surveillance cameras to access points and IoT equipment.
- Modular Design with Expansion Slots: Featuring two expansion slots, the Aruba 6300M provides flexible options for uplinks and stacking modules, allowing the network to adapt to changing requirements and grow with your infrastructure.
- Advanced Layer 3 Routing: The switch supports advanced Layer 3 routing protocols, enabling efficient data routing across complex networks and ensuring reliable communication throughout the enterprise.
- Powerful Aruba CX Software: The JL660A operates on Aruba’s CX operating system, which offers intuitive, automated management, and simplified troubleshooting capabilities, enhancing network stability and reducing admin workload.
- Virtual Switching Framework (VSF): Aruba’s VSF technology allows for the virtual stacking of multiple switches, enabling simplified management and high availability with added redundancy.
- Comprehensive Security and Reliability: With features like MACsec encryption, Access Control Lists (ACLs), and robust port-based security, the JL660A provides a secure foundation for modern, data-driven businesses in the UK.
- Flexible Management Options: Managed through Aruba Central for cloud-based monitoring or a local interface, this switch allows IT administrators to choose the management method that best fits their needs, offering complete control over network performance and security.
The JL660A Aruba 6300M offers exceptional value for UK businesses needing reliable performance and scalability at an affordable price. Designed to optimize your network’s power efficiency, security, and manageability, this switch future-proofs your enterprise’s connectivity infrastructure, making it a powerful asset for both data-intensive environments and growing business networks.
