Aruba 3810M 16SFP+ 2-slot Managed L3 1U Black (JL075A)
Write a review below |
5/5
Call For Price
DISCOUNTED QUOTE
Want it by Tomorrow? Order before 4:00 PM for Next Business Day Delivery.
Availability
Out of stock
Condition New
Out of stock

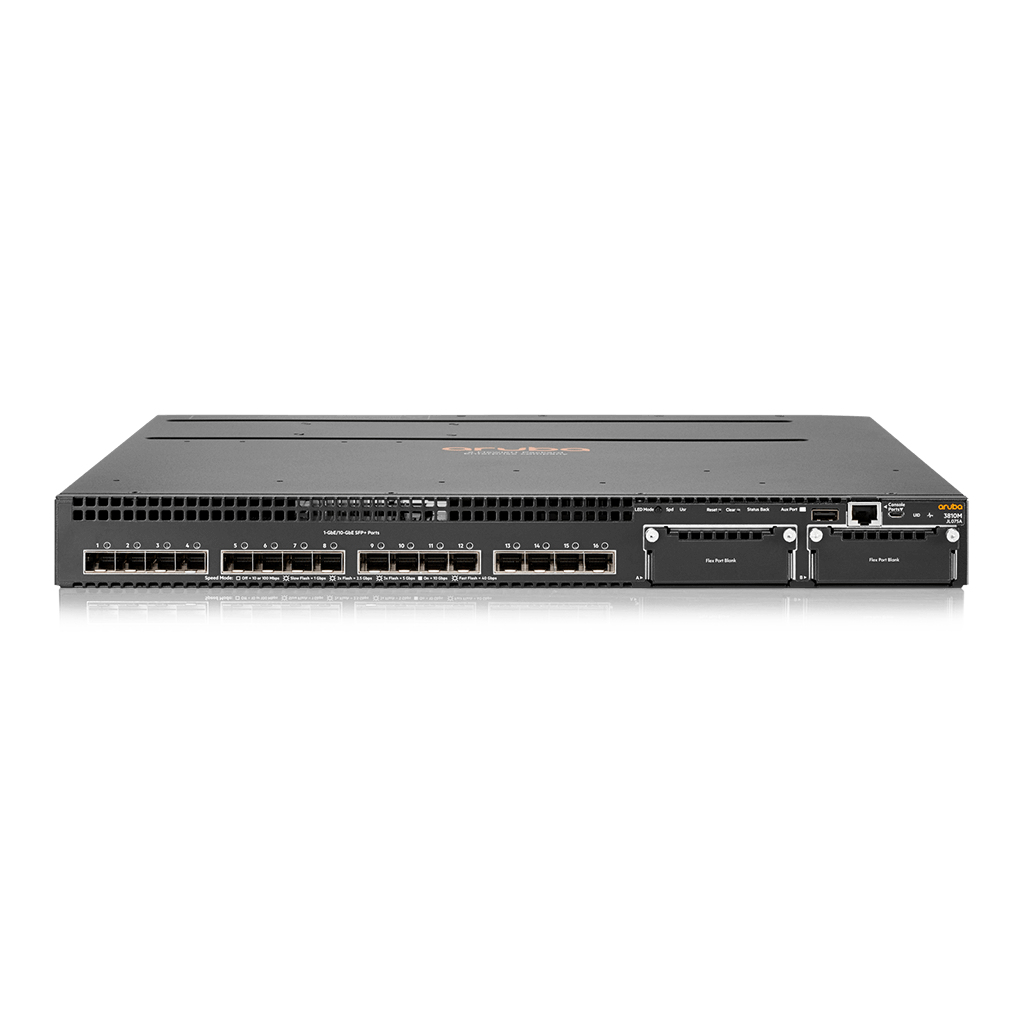

Aruba 3810M 16SFP+ 2-slot Managed L3 1U Black
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| SFP+ module slots quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 13.5 MB |
| Stackable | Yes |
| Physical stacking (units) | 10 |
| Virtual stacking (units) | 10 |
| Processor frequency | 1000 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Physical stacking (units) | 10 |
| Virtual stacking (units) | 10 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1000 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Data transmission | |
| Throughput | 285.7 Mpps |
| Latency (1 Gbps) | 2.8 µs |
| Latency (10 Gbps) | 1.8 µs |
| Packet buffer memory | 13.5 MB |
| MAC address table | 64000 entries |
| Switching capacity | 480 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Memory | |
| Packet buffer memory | 13.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | No |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 431.3 mm |
| Height | 43.9 mm |
| Weight | 6.02 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Aruba JL075A 3810M 16SFP+ 2-Slot Managed L3 Switch UK
The Aruba JL075A 3810M 16SFP+ 2-Slot Managed L3 Switch is an enterprise-grade switch designed to deliver high-performance networking with advanced flexibility for growing infrastructures. Equipped with 16 SFP+ ports that support 1GbE or 10GbE fiber connections, this switch is ideal for data-intensive environments requiring robust, high-speed connectivity. Its 2-module slot design allows for additional uplinks and stacking options, making it a scalable and versatile choice for businesses in the UK.
Key Features:
- 16 High-Speed SFP+ Ports: The JL075A provides 16 SFP+ ports that offer up to 10GbE speeds, ideal for connecting to high-bandwidth devices and ensuring reliable data transmission across your network.
- Modular Expandability: With two open module slots, the JL075A enables users to add expansion modules such as additional uplinks or stacking modules, making it easy to expand the network without needing to replace existing hardware.
- Layer 3 Managed Capabilities: This switch includes advanced Layer 3 routing features, including static and dynamic routing protocols, enabling seamless traffic handling and optimized network performance in complex environments.
- High Availability with Virtual Switching Framework (VSF): Aruba’s VSF technology allows the JL075A to create a single, virtualized switch across multiple units, simplifying network management while enhancing redundancy and availability.
- Energy Efficient and Compact Design: The JL075A’s compact 1U form factor allows for easy rack installation, while its energy-efficient design reduces power consumption, helping businesses lower their operational costs.
- Enhanced Security: With comprehensive security protocols such as ACLs, MACsec, and port authentication, the JL075A ensures data integrity and prevents unauthorized access, providing businesses with peace of mind.
- Easy Management Options: The Aruba JL075A switch supports management via CLI, web interface, and Aruba Central, offering flexible control options for administrators. Its compatibility with Aruba Central also facilitates cloud-based management and monitoring.
Engineered for performance, scalability, and secure networking, the Aruba JL075A 3810M 16SFP+ 2-Slot Managed L3 Switch is the perfect choice for businesses in the UK looking to future-proof their network infrastructure. Whether supporting high-speed connections or facilitating complex routing, this switch is built to meet the demands of modern enterprises.
