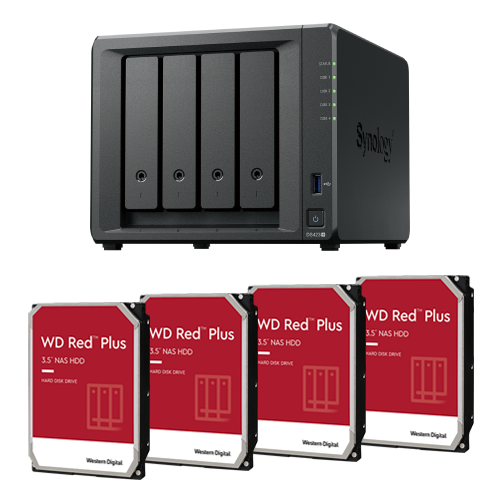

Synology DS423+ 4-Bay 40TB NAS w/ 4x10TB Red Plus Hard Drive Bundle(DS423+/40TB-RPL)

Write a review below |
5/5
SKU: DS423+/40TB-RPL

Excl. VAT: £1,170.00
Incl. VAT: £1,404.00

DISCOUNTED QUOTE

Want it by Tomorrow? Order before 4:00 PM for Next Business Day Delivery.


Availability

In stock

Condition New

In stock

    DISCOUNTED QUOTE

    Fill in the details below for discounted price

    Synology DS423+ 4-Bay 40TB NAS w/ 4x10TB Red Plus Hard Drive Bundle

    Specifications

    CPU

    CPU Model

    • Intel Celeron J4125

    CPU Quantity

    • 1

    CPU Architecture

    • 64-bit

    CPU Frequency

    • 4-core 2.0 (base) / 2.7 (turbo) GHz

    Hardware Encryption Engine (AES-NI)

    • Yes

    Memory

    System Memory

    • 2 GB DDR4 non-ECC SODIMM

    Total Memory Slots

    • 1

    Maximum Memory Capacity

    • 6 GB (2 GB + 4 GB)

    Notes

    • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
    • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

    Storage

    Drive Bays

    • 4
    • Bundled with 40TB of storage capacity (includes 4 x 10TB WD Red Plus HDDs).

    M.2 Drive Slots

    • 2 (NVMe)

    Compatible Drive Type

    • 3.5-inch SATA HDD
    • 2.5-inch SATA SSD
    • M.2 2280 NVMe SSD

    Hot Swappable Drive

    • Yes

    Notes

    • The hot swappable drive feature is not supported by M.2 SSD slots.
    • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

    External Ports

    RJ-45 1GbE LAN Port

    • 2 (with Link Aggregation / Failover support)

    USB 3.2 Gen 1 Port

    • 2

    Notes

    • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

    File System

    Internal Drives

    • Btrfs
    • EXT4

    External Drives

    • Btrfs
    • EXT4
    • EXT3
    • FAT
    • NTFS
    • HFS+
    • exFAT

    Appearance

    Size (Height x Width x Depth)

    • 166 mm x 199 mm x 223 mm

    Weight

    • 2.18 kg

    Others

    System Fan

    • 92 mm x 92 mm x 2 pcs

    Fan Speed Mode

    • Full-Speed Mode
    • Cool Mode
    • Quiet Mode

    Brightness Adjustable Front LED Indicators

    • Yes

    Power Recovery

    • Yes

    Noise Level

    • 19.8 dB(A)

    Scheduled Power On / Off

    • Yes

    Wake on LAN / WAN

    • Yes

    Power Supply Unit / Adapter

    • 90 W

    AC Input Power Voltage

    • 100V to 240V AC

    Power Frequency

    • 50/60 Hz, Single Phase

    Power Consumption

    • 28.3 W (Access)
    • 8.45 W (HDD Hibernation)

    British Thermal Unit

    • 96.5 BTU/hr (Access)
    • 28.81 BTU/hr (HDD Hibernation)

    Notes

    • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

    Temperature

    Operating Temperature

    • 0°C to 40°C (32°F to 104°F)

    Storage Temperature

    • -20°C to 60°C (-5°F to 140°F)

    Relative Humidity

    • 5% to 95% RH

    Certification

    • FCC
    • CE
    • BSMI
    • VCCI
    • RCM
    • UKCA
    • EAC
    • CCC
    • KC

    Environment

    • RoHS Compliant

    DSM Specifications

    Storage Management

    Maximum Single Volume Size

    • 108 TB

    Maximum Internal Volume Number

    • 64

    M.2 SSD Storage Pool Support

    • Yes

    SSD Read / Write Cache (White Paper)

    • Yes

    SSD TRIM

    • Yes

    Supported RAID Type

    • Synology Hybrid RAID
    • Basic
    • JBOD
    • RAID 0
    • RAID 1
    • RAID 5
    • RAID 6
    • RAID 10

    RAID Migration

    • Basic to RAID 1
    • Basic to RAID 5
    • RAID 1 to RAID 5
    • RAID 5 to RAID 6

    Volume Expansion with Larger HDDs

    • Synology Hybrid RAID
    • RAID 1
    • RAID 5
    • RAID 6
    • RAID 10

    Volume Expansion by Adding a HDD

    • Synology Hybrid RAID
    • JBOD
    • RAID 5

    Global Hot Spare Supported RAID Type

    • Synology Hybrid RAID
    • RAID 1
    • RAID 5

    Notes

    • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
    • Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments.
    • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.

    File Services

    File Protocol

    • SMB/AFP/NFS/FTP/WebDAV

    Maximum Concurrent SMB/AFP/FTP Connections

    • 500

    Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)

    • 1,500

    Windows Access Control List (ACL) Integration

    • Yes

    NFS Kerberos Authentication

    • Yes

    Notes

    • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
    • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.

    Account & Shared Folder

    Maximum Local User Accounts

    • 2,048

    Maximum Local Groups

    • 256

    Maximum Shared Folder

    • 512

    Maximum Shared Folder Sync Tasks

    • 8

    Hybrid Share

    Hybrid Share Folder Number

    • 10

    High Availability

    Synology High Availability

    • Yes

    Log Centre

    Syslog Events per Second

    • 800

    Virtualization

    VMware vSphere with VAAI

    • Yes

    Windows Server 2016

    • Yes

    Windows Server 2019

    • Yes

    Citrix Ready

    • Yes

    OpenStack

    • Yes

    General Specifications

    Networking Protocols

    • SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

    Supported Browsers

    • Google Chrome
    • Firefox
    • Microsoft Edge
    • Safari

    Supported Language

    • English, German, French, Italian, Spanish, Danish, Norwegian, Swedish, Dutch, Russian, Poland, Hungarian, Portuguese (Brazil), Portuguese (Europe), Turkish, Czech, Thai, Japanese, Korean, Chinese (Traditional & Simplified)

    Add-on Packages

    Antivirus by McAfee (Trial)

    • Yes

    Central Management System

    • Yes

    Synology Chat

    Maximum Number of Concurrent Users

    • 100

    Notes

      • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.

    When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.

    Document Viewer

    • Yes

    Download Station

    Maximum Concurrent Download Tasks

    • 80

    SAN Manager

    Maximum iSCSI Target Number

    • 128

    Maximum LUN

    • 256

    LUN Clone/Snapshot, Windows ODX

    • Yes

    Synology MailPlus / MailPlus Server

    Free Email Accounts

    • 5 (Licences required for additional accounts)

    Maximum Number of Concurrent Users

    • 100

    Maximum Server Performance

    • 1,224,000 emails per day, approx. 37GB

    Notes

    • For tested models with expandable memory, the maximum amount of RAM was installed.
    • The performance of the mail system will slightly decrease in high-availability mode due to data synchronisation between the two servers.
    • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

    Media Server

    DLNA Compliance

    • Yes

    Synology Photos

    Facial Recognition

    • Yes

    Snapshot Replication

    Maximum Snapshots per Shared Folder

    • 1,024

    Maximum of System Snapshots

    • 65,536

    Surveillance Station

    Maximum IP cam (Licences required)

    • 40 (including 2 Free Licence)

    Total FPS (H.264)

    • 1200 FPS @ 720p (1280×720)
    • 800 FPS @ 1080p (1920×1080)
    • 350 FPS @ 3M (2048×1536)
    • 280 FPS @ 5M (2591×1944)
    • 170 FPS @ 4K (3840×2160)

    Total FPS (H.265)

    • 1200 FPS @ 720p (1280×720)
    • 1200 FPS @ 1080p (1920×1080)
    • 600 FPS @ 3M (2048×1536)
    • 480 FPS @ 5M (2591×1944)
    • 200 FPS @ 4K (3840×2160)

    Notes

    • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
    • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.

    Synology Drive

    Recommended Number of Concurrent Sync Clients

    • 350 (the number of connections that can be maintained when the recommended number of hosted files was reached)

    Recommended Number of Hosted Files

    • 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

    Notes

    • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
    • Utilising SSD cache can significantly improve performance.
    • For tested models with expandable memory, the maximum amount of RAM was installed.
    • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

    Synology Office

    Maximum Users

    • 1,200

    Notes

    • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
    • For tested models with expandable memory, the maximum amount of RAM was installed.
    • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

    Video Station

    • Yes

    Virtual Machine Manager

    Recommended Virtual Machine Instances

    • 2

    Recommended Virtual DSM Number (Licences required)

    • 2 (including 1 Free Licence)

    Notes

    • The specifications vary depending on system configuration and memory size.

    VPN Server

    Maximum Connections

    • 40

    Package Contents

    • 1 x DS423+ 4-Bay NAS
    • 4 x WD Red Plus HDDs
    • 1 x Accessory Pack
    • 1 x AC Power Adapter
    • 1 x AC Power Cord
    • 2 x RJ-45 LAN Cable
    • 1 x Quick Installation Guide
