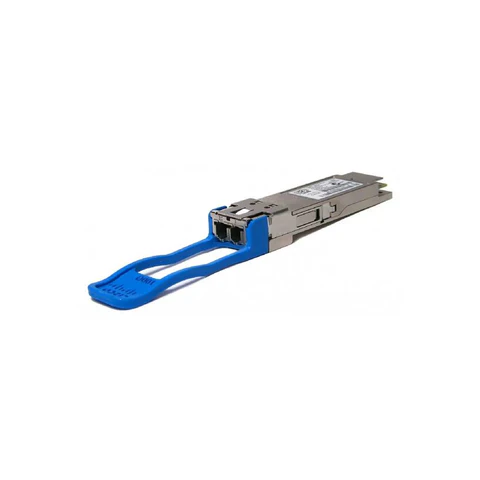

Cisco QSFP-100G-SR4-S network transceiver module
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Cisco |
| Product Type | Transceiver Module |
|
Connector |
MTP/MPO-12 |
|
Transmitter Type |
VCSEL |
|
Receiver Type |
PIN |
|
TX Power |
-4~4dBm |
|
RX Power |
-12~2.4dBm |
|
Power Consumption |
≤2.5W |
|
Core Size |
50um/125um |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
Cisco QSFP-100G-SR4-S network transceiver module
| Brand | Cisco |
| Product Type | Transceiver Module |
|
Connector |
MTP/MPO-12 |
|
Transmitter Type |
VCSEL |
|
Receiver Type |
PIN |
|
TX Power |
-4~4dBm |
|
RX Power |
-12~2.4dBm |
|
Power Consumption |
≤2.5W |
|
Core Size |
50um/125um |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Description
Cisco QSFP-100G-SR4-S network transceiver module
The Cisco QSFP-100G-SR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fibre (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. It is verified to interoperate with original Cisco switches, including the Catalyst 9400/9500/9600 and Nexus 9200/9300/9500/3000 series. This 100G SR4 QSFP28 optics also supports breakout to 4x25GBASE-SR SFP28 via MTP/MPO-8 to 4xLC duplex OM3/OM4 breakout cables. Compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards, it provides digital diagnostics via the I2C interface, as defined by the QSFP28 MSA, for real-time monitoring. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centres, high-performance computing networks, enterprise core and distribution layer applications.
Technical Table
| Brand | Cisco |
| Product Type | Transceiver Module |
|
Connector |
MTP/MPO-12 |
|
Transmitter Type |
VCSEL |
|
Receiver Type |
PIN |
|
TX Power |
-4~4dBm |
|
RX Power |
-12~2.4dBm |
|
Power Consumption |
≤2.5W |
|
Core Size |
50um/125um |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Reviews
There are no reviews yet.
Description
Cisco QSFP-100G-SR4-S network transceiver module
The Cisco QSFP-100G-SR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fibre (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. It is verified to interoperate with original Cisco switches, including the Catalyst 9400/9500/9600 and Nexus 9200/9300/9500/3000 series. This 100G SR4 QSFP28 optics also supports breakout to 4x25GBASE-SR SFP28 via MTP/MPO-8 to 4xLC duplex OM3/OM4 breakout cables. Compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards, it provides digital diagnostics via the I2C interface, as defined by the QSFP28 MSA, for real-time monitoring. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centres, high-performance computing networks, enterprise core and distribution layer applications.
Technical Table
| Brand | Cisco |
| Product Type | Transceiver Module |
|
Connector |
MTP/MPO-12 |
|
Transmitter Type |
VCSEL |
|
Receiver Type |
PIN |
|
TX Power |
-4~4dBm |
|
RX Power |
-12~2.4dBm |
|
Power Consumption |
≤2.5W |
|
Core Size |
50um/125um |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
