| Brand | Cisco |
| Product Type | Transceiver Module |
| Form Factor | XFP |
| Wavelength | 1550 nm |
| Max Distance | 80 km |
| Transmitter Power | 0 ~ 5 dBm |
| Receiver Sensitivity | < -24 dBm |
| Connector | LC Duplex |
| Optcore Part Number | OXP10G-5580DCR-CSC |
| Data Rate | 10Gb/s |
| Fiber Type | SMF |
| Optical Components | EML/APD |
| Extinction ratio | > 7 dB |
| Receiver Overload | > -7 dBm |
| Digital Diagnostic Monitoring | Yes |
| Weight | 0.05 kg |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
| Brand | Cisco |
| Product Type | Transceiver Module |
| Form Factor | XFP |
| Wavelength | 1550 nm |
| Max Distance | 80 km |
| Transmitter Power | 0 ~ 5 dBm |
| Receiver Sensitivity | < -24 dBm |
| Connector | LC Duplex |
| Optcore Part Number | OXP10G-5580DCR-CSC |
| Data Rate | 10Gb/s |
| Fiber Type | SMF |
| Optical Components | EML/APD |
| Extinction ratio | > 7 dB |
| Receiver Overload | > -7 dBm |
| Digital Diagnostic Monitoring | Yes |
| Weight | 0.05 kg |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Description

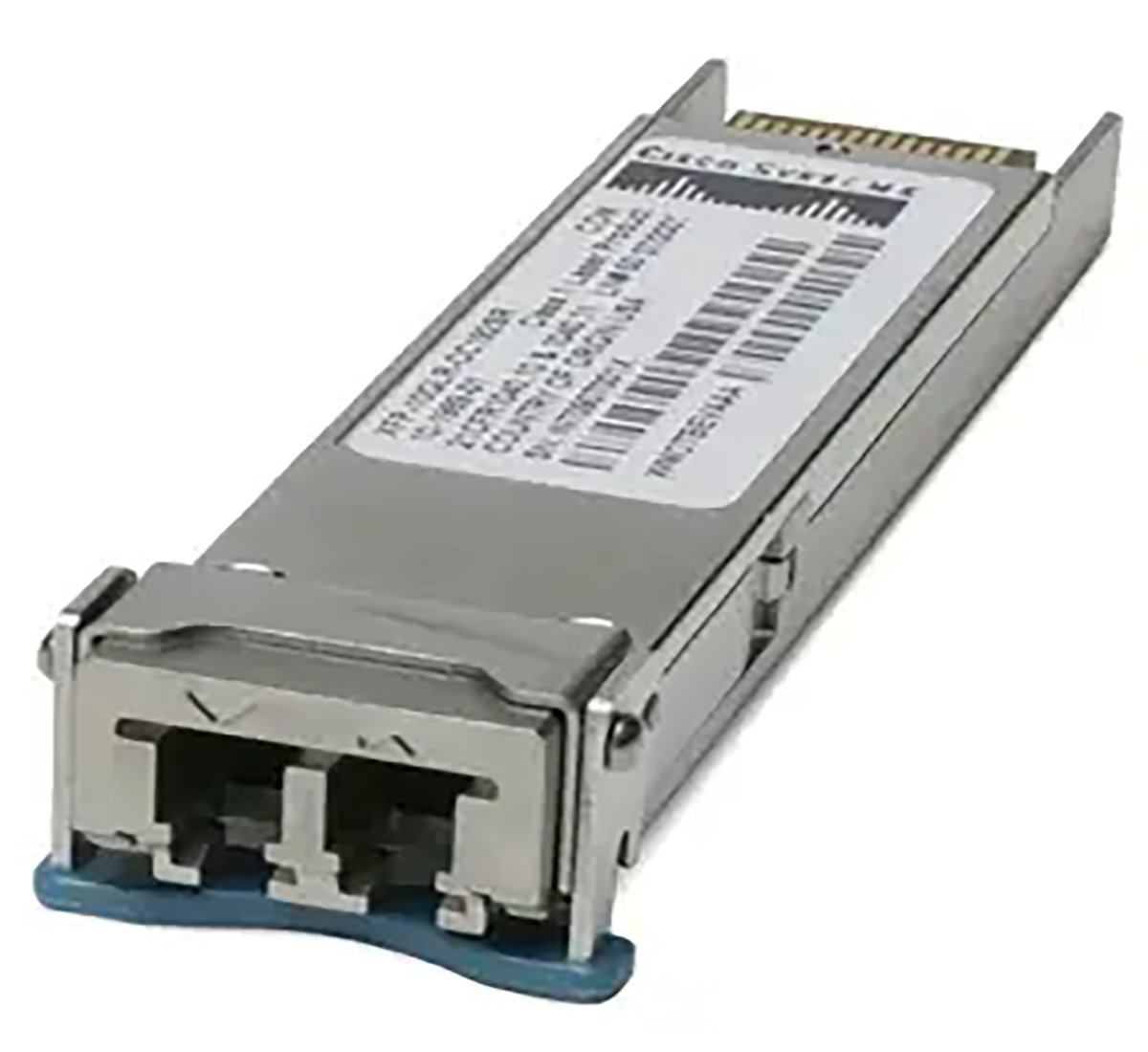

Cisco XFP-10GZR-OC192LR Compatible Transceiver Module
OXP10G-5580DCR-CSC is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fiber Channel. It provides 10-Gigabit connectivity up to 80km on single mode fiber (SMF) at 1550nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Technical Table
| Brand | Cisco |
| Product Type | Transceiver Module |
| Form Factor | XFP |
| Wavelength | 1550 nm |
| Max Distance | 80 km |
| Transmitter Power | 0 ~ 5 dBm |
| Receiver Sensitivity | < -24 dBm |
| Connector | LC Duplex |
| Optcore Part Number | OXP10G-5580DCR-CSC |
| Data Rate | 10Gb/s |
| Fiber Type | SMF |
| Optical Components | EML/APD |
| Extinction ratio | > 7 dB |
| Receiver Overload | > -7 dBm |
| Digital Diagnostic Monitoring | Yes |
| Weight | 0.05 kg |
