Cisco GLC-LX-SM-RGD network transceiver module
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Cisco |
| Type | Network Modules |
| Fiber optic connector | LC, PC |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
| Cabling technology | 100BASE-LX/LH |
| Fiber optic connector | LC, PC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance (Single-mode) | 10000 m |
| Maximum transfer distance (Multi-mode) | 550 m |
| Harmonized System (HS) code | 85369010 |
| Operating temperature (T-T) | -40 – 85 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Weight | 75 g |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
| Brand | Cisco |
| Type | Network Modules |
| Fiber optic connector | LC, PC |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
| Cabling technology | 100BASE-LX/LH |
| Fiber optic connector | LC, PC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance (Single-mode) | 10000 m |
| Maximum transfer distance (Multi-mode) | 550 m |
| Harmonized System (HS) code | 85369010 |
| Operating temperature (T-T) | -40 – 85 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Weight | 75 g |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Description

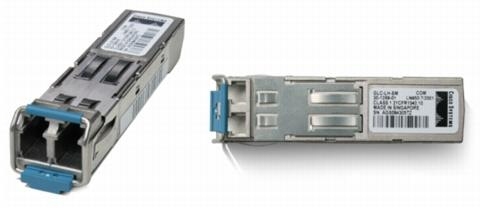

Cisco GLC-LX-SM-RGD network transceiver module
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.1000BASE-LX/LH SFP for Both Multimode and Single-Mode FibersThe 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.
Technical Table
| Brand | Cisco |
| Type | Network Modules |
| Fiber optic connector | LC, PC |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
| Cabling technology | 100BASE-LX/LH |
| Fiber optic connector | LC, PC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Cabling technology | 100BASE-LX/LH |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance (Single-mode) | 10000 m |
| Maximum transfer distance (Multi-mode) | 550 m |
| Harmonized System (HS) code | 85369010 |
| Operating temperature (T-T) | -40 – 85 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Weight | 75 g |
BESTSELLER PRODUCTS
Available on Backorder
Available on Backorder
Key Features:
| Brand | AddOn Networks |
| Product Type | Network Transceiver Modules |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Form Factor | Plug-in module |
| Interface type | SFP |
| Hot-swap | Yes |
| Compatible products | Cisco 7300, Catalyst 2940-8TF-S, Catalyst 2970G-24TS, Catalyst 3750G-24TS, Catalyst 3750-24TS, Catalyst 3750-48TS, Catalyst 3750G-12S, Supervisor Engine 720, WS-X6724-SFP, 10720-GE-FE-TX, 10720-GE-FE-TX-B |
| Cabling Type | 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Width | 13.7 mm |
| Depth | 71.1 mm |
| Height | 14 mm |
