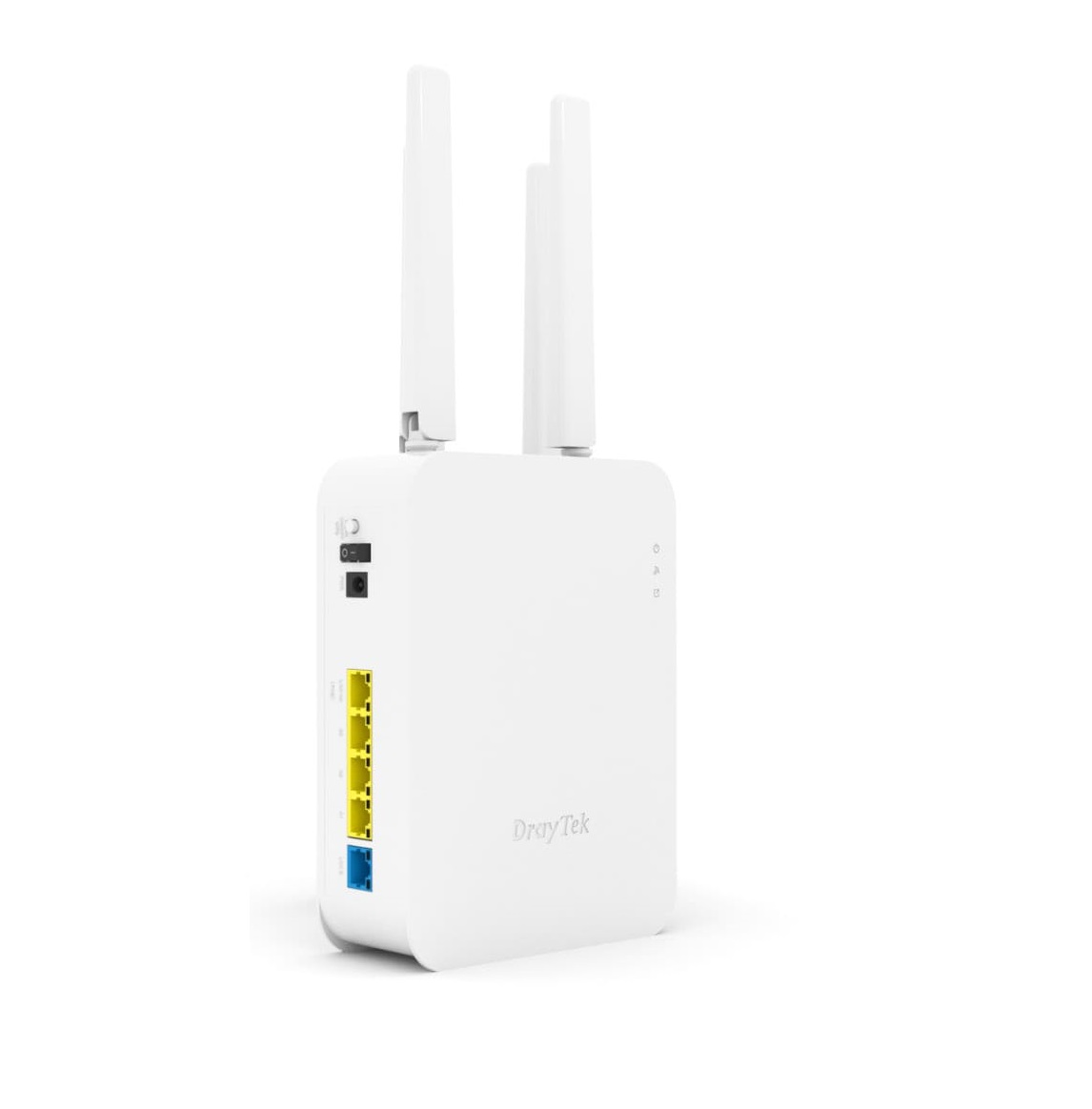

Draytek Vigor AP906 Wireless Access Point

Physical Interfaces/Controls

• 5 x Gigabit Ethernet LAN Ports (port A4 accepts PoE power)
• WLAN On/Off & WPS Button
• Power On/Off Rocker Switch
• Factory Reset Button (recessed)
• DC Power Socket

Wireless Performance

• AX3000 Class Wireless Access Point
• Max Concurrent Clients: 254 total, 127 per band
• Max Wireless Networks (SSIDs): 8 total, 4 per band
• 2.4GHz: Up to 574Mb/s PHY Rate
• 5GHz: Up to 2402Mb/s PHY Rate

Wireless Antennas

• 2 x External Dipole Dual-Band Antennas
• 2.4GHz Gain: 2.7dBi
• 5GHz Gain: 2.5dBi

Wireless LAN Compatibility

• 2.4GHz Standards: IEEE 802.11ax / b / g / n, 2×2 MIMO, up to 1024-QAM
• 5GHz Standards: IEEE 802.11ax / ac Wave 2 / a / n, 2×2 MU-MIMO, up to 1024-QAM

Wireless LAN Features

• WiFi 6
• Dual Band 802.11ax – 2.4 GHz & 5Ghz
• Backwards compatible with 802.11ac, 802.11b, 802.11g, 802.11n
• 2.4GHz Channel Bandwidth: 20 / 40 MHz
• 5GHz Channel Bandwidth: 20 / 40 / 80 / 160 MHz
• 2.4GHz Channels: 1 to 13
• 5GHz Channels: Extended 5Ghz Band – Channels 36-48, 52-64, 100-140
• DFS/TPC Support for 5GHz channels 52 to 140
• OFDMA – Higher Efficiency
• BSS Colouring – Improves Interference Handling
• TX Beamforming
• 1024-QAM
• Multi-User MIMO

Security Features

• Wireless Encryption:
  • WPA2: Personal, Enterprise (802.1x)
  • WPA3: Personal, Enterprise, OWE
  • WPA/WEP for legacy applications
• Built in 802.1x server (PEAP / EAP-TLS)
• 802.1x RADIUS Proxy (PEAP / EAP-TLS)
• PMK Caching & Pre-authentication
• Wireless Client Isolation
• Controllable Isolation of 2.4GHz and 5GHz bands
• Hidden SSIDs (Selectable)
• WPS – WiFi Protected Setup
• MAC Address Filtering (ACL) – Up to 256 entries
• Mobile Device Management
• EAPOL Key Retry – Protect unpatched WLAN clients from KRACK

Access Point Modes

• Access Point
• Mesh Root
• Mesh Node
• Range Extender

Wireless Control Features

• Wireless Client Status List in WUI
• Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
• Client Limit: Per Radio & Per SSID
• MAC Cloning
• 802.1q VLAN
• Built-in DHCP Server & DHCP Relay
• Station Control – Time limit wireless connectivity per Station (e.g. 1 hour) & set allowed Reconnection time (e.g. 1 day)
• Device Object/Group Control – Schedule access for individual devices or groups

Wireless Performance Optimisation

• Airtime Fairness
• Band Steering
• AP-Assisted Client Mobility
• WMM (Wireless MultiMedia)
• Bandwidth Management (Per Station / Per SSID)
• Fast Roaming 802.11r

Mesh Features

• Up to 8 APs per Mesh Group
• Up to 3 Mesh Hops per chain with optional Wired Uplinks
• Config Sync
• Self-Healing
• Can be configured & managed with the DrayTek Wireless App
• Mesh Syslog

Diagnostic Features

• Dashboard: Traffic Graph & Client Usage
• System Log
• Speed Test
• Traffic Graph
• Wireless LAN Statistics
• Interference Monitor – Built-in Site Surveyor

Management

• Web Interface (HTTP/HTTPS)
• DHCP Client
• TR-069 Control (For VigorACS or another TR-069 platform)
• CLI (Command Line Interface) – Telnet
• Firmware upgrade by TR-069/HTTP
• Central AP Management (from compatible DrayTek router/AP/controller)
• Central AP Management – manage up to 30 VigorAPs
• SNMP v2, v2c, v3
• Management VLAN
• Configuration File Export (with password) & Import
• Wireless Auto On/Off
• Schedule: WiFi Up/Down, Auto-Reboot, LED On/Off

Power Requirements

• Maximum Power Consumption: 17.3 Watts
• DC 12V via external 100-240v AC/DC PSU (supplied)
• 802.3at PoE+ via LAN port. Requires PoE+ injector or a PoE+ switch such as the VigorSwitch P2100 (sold separately)

Environmental & Physical

• Operating Temperature: 0°C to 45°C
• Operating Humidity: 10% to 90% (Non-condensing)
• Physical Dimensions (H x W x D): 194 x 155 x 50 mm
• Weight: 680g
• Fitting: Wall Mountable or Free Standing

Package Contents

• 1 x VigorAP 906 Wireless Access Point
• 1 x Wall Mount Bracket & Fittings Kit
• 1 x Quick Start Guide
• 1 x DC 12V PSU
