Cisco QSFP-40/100-SRBD network transceiver module
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Cisco |
| Product type | Network Modules |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Hot-swap | Yes |
| Maximum transfer distance | 100 m |
| Wavelength | 908 nm |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS, WEEE |
| Product colour | Grey |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum transfer distance | 100 m |
| Wavelength | 908 nm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Multi-mode fiber (MMF) supported | Yes |
| Power consumption (typical) | 3.5 W |
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
| Brand | Cisco |
| Product type | Network Modules |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Hot-swap | Yes |
| Maximum transfer distance | 100 m |
| Wavelength | 908 nm |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS, WEEE |
| Product colour | Grey |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum transfer distance | 100 m |
| Wavelength | 908 nm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Multi-mode fiber (MMF) supported | Yes |
| Power consumption (typical) | 3.5 W |
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Description

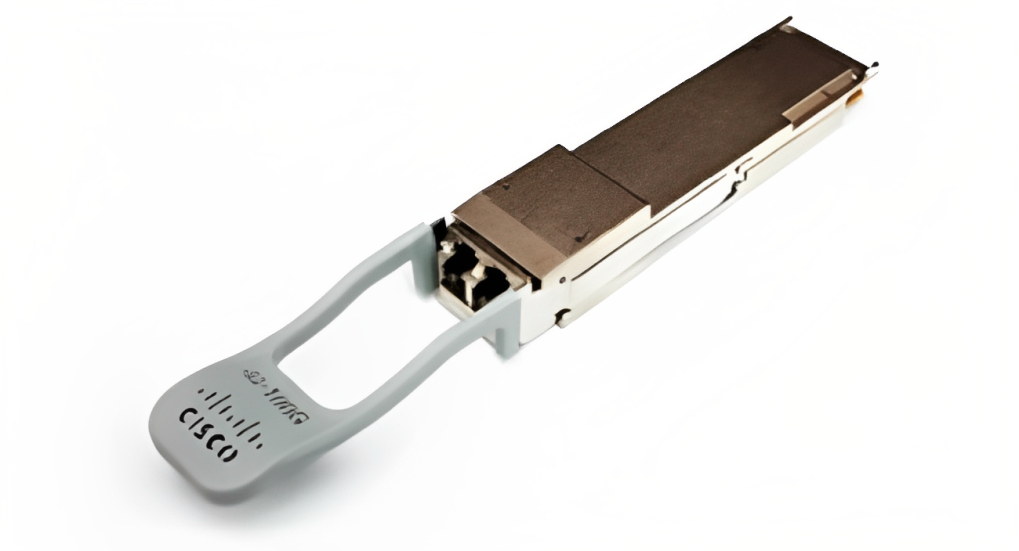

Cisco QSFP-40/100-SRBD network transceiver module
The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.
Cisco QSFP-40/100G-SRBD
The Cisco QSFP 40/100 Gb dual-rate Bi-Directional (BiDi) transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to either 40 or 100 Gigabit Ethernet connectivity.
In 40-Gbps mode, the Cisco QSFP 40/100-Gbps BiDi transceiver supports link lengths of 100 and 150 meters on laser-optimized OM3 and OM4 multimode fibers, respectively. In 100-Gbps mode, it supports 70 and 100 meters on OM3 and OM4, respectively.
Each Cisco QSFP 40/100-Gbps BiDi transceiver consists of two transmit and receive channels in the 832-918 nanometer wavelength range, enabling an aggregated 40 or 100-Gbps link over a two-strand multimode fiber connection.
Technical Table
| Brand | Cisco |
| Product type | Network Modules |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Hot-swap | Yes |
| Maximum transfer distance | 100 m |
| Wavelength | 908 nm |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS, WEEE |
| Product colour | Grey |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum transfer distance | 100 m |
| Wavelength | 908 nm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Multi-mode fiber (MMF) supported | Yes |
| Power consumption (typical) | 3.5 W |
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
