Cisco QSFP-100G-SM-SR network transceiver module Fiber optic
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Cisco |
| Product type | Network Modules |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Ethernet interface type | 100 Gigabit Ethernet |
| Hot-swap | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Tx power (min) | -6.9 dBmW |
| Tx power (max) | 2.5 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | 2.5 dBmW |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS, WEEE |
| Product colour | Green |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Tx power (min) | -6.9 dBmW |
| Tx power (max) | 2.5 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | 2.5 dBmW |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Single-mode fiber (SMF) supported | Yes |
| Ethernet interface type | 100 Gigabit Ethernet |
| SFP transceiver standard | SR |
| Fiber ethernet cabling technology | 100GBASE |
| Product colour | Green |
| Hot-swap | Yes |
| Power consumption (typical) | 3.5 W |
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
Buy new:
Get Instant Price
Delivery Date:
Friday, Jun 12
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
| Brand | Cisco |
| Product type | Network Modules |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Ethernet interface type | 100 Gigabit Ethernet |
| Hot-swap | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Tx power (min) | -6.9 dBmW |
| Tx power (max) | 2.5 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | 2.5 dBmW |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS, WEEE |
| Product colour | Green |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Tx power (min) | -6.9 dBmW |
| Tx power (max) | 2.5 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | 2.5 dBmW |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Single-mode fiber (SMF) supported | Yes |
| Ethernet interface type | 100 Gigabit Ethernet |
| SFP transceiver standard | SR |
| Fiber ethernet cabling technology | 100GBASE |
| Product colour | Green |
| Hot-swap | Yes |
| Power consumption (typical) | 3.5 W |
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
Buy new:
Get Instant Price
Delivery Date:
Friday, Jun 12
Dispatch time:
Loading timer...
Delivery Date & Time for:
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Description

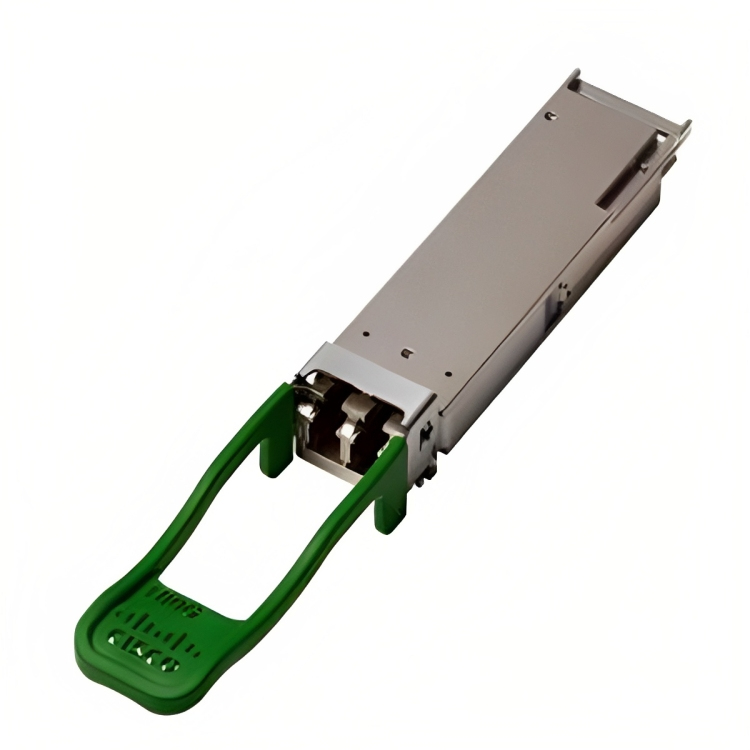

Cisco QSFP-100G-SM-SR network transceiver module Fiber optic
Cisco QSFP-100G-SM-SR
The Cisco QSFP-100G-SM-SR QSFP module supports link lengths of up to 2 kilometers over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The operating temperature range is from +10 to +60°C with an optical link budget of 4.2 decibels. This 4.2-decibel link budget offers the ability to support the loss from patch panels in the link in a data center environment. QSFP 100G SM-SR is interoperable with QSFP-100G-CWDM4-S.
Technical Table
| Brand | Cisco |
| Product type | Network Modules |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Ethernet interface type | 100 Gigabit Ethernet |
| Hot-swap | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Tx power (min) | -6.9 dBmW |
| Tx power (max) | 2.5 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | 2.5 dBmW |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS, WEEE |
| Product colour | Green |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum transfer distance | 2000 m |
| Wavelength | 1331 nm |
| Tx power (min) | -6.9 dBmW |
| Tx power (max) | 2.5 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | 2.5 dBmW |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP |
| Single-mode fiber (SMF) supported | Yes |
| Ethernet interface type | 100 Gigabit Ethernet |
| SFP transceiver standard | SR |
| Fiber ethernet cabling technology | 100GBASE |
| Product colour | Green |
| Hot-swap | Yes |
| Power consumption (typical) | 3.5 W |
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
