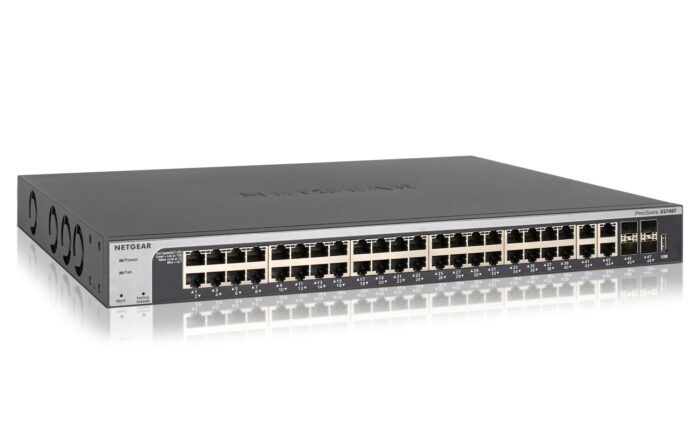

NETGEAR 48-Port 10G Ethernet Smart Switch(XS748T-100NES)
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Buy new:
Get Instant Price
Delivery Date:
Monday, May 18
Order Within:
Loading timer...
Deliver to:
Available on Backorder
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
Description
NETGEAR 48-Port 10G Ethernet Smart Switch(XS748T-100NES)
NETGEAR 48-Port 10G Ethernet Smart Switch
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10GBASE-T |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat7 |
| Copper ethernet cabling technology | 10GBASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 512 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 512 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN |
| Data transmission | |
| Number of VLANs | 512 |
| Jumbo frames | 10000 |
| Latency (10 Gbps) | 3.674 µs |
| Number of static routes | 64 |
| Packet buffer memory | 3 MB |
| MAC address table | 16000 entries |
| Switching capacity | 960 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 3 MB |
| Processor frequency | 800 MHz |
| Noise level | 47.8 dB |
| Mean time between failures (MTBF) | 483808 h |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Processor frequency | 800 MHz |
| Noise level | 47.8 dB |
| Mean time between failures (MTBF) | 483808 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Security | |
| Access Control List (ACL) rules | 164 |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Certificates | |
| Certification | CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC |
| Memory | |
| Packet buffer memory | 3 MB |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Certification | CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC |
| Rack mounting | Yes |
| Number of fans | 4 fan(s) |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power | |
| Power consumption (max) | 262.8 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Operating altitude | 0 – 3000 m |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 6.25 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
Technical Table
