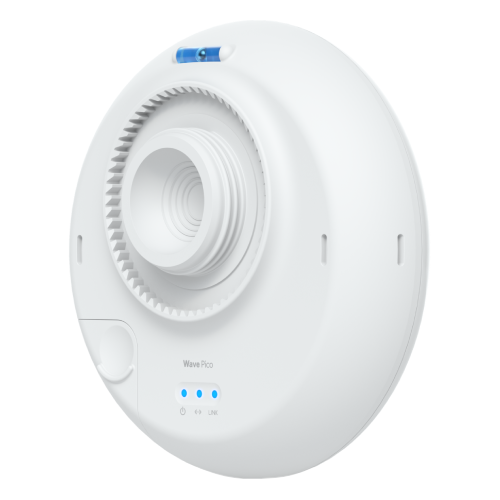

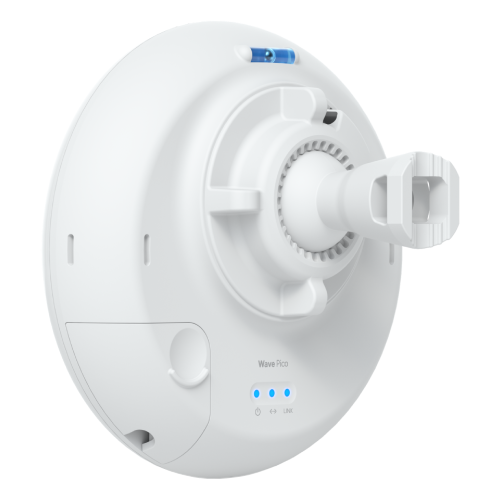

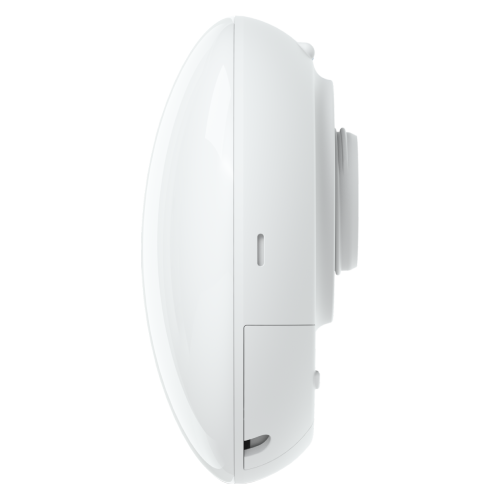

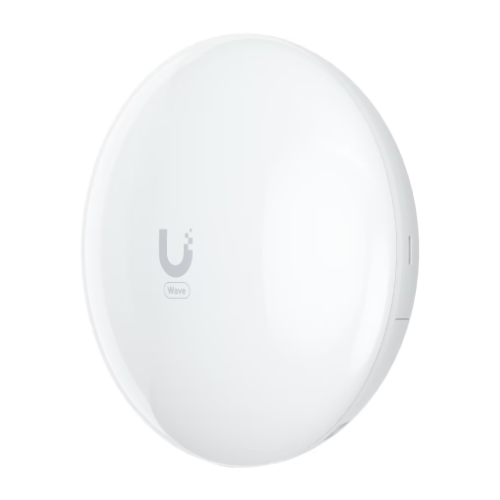

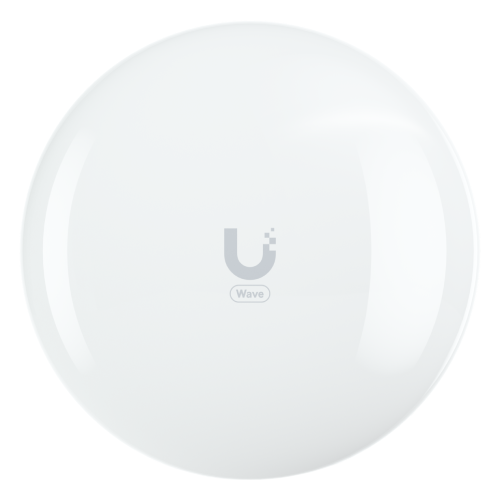

Ubiquiti Wave-Pico 60GHz PtMP station WiFi Point-to-Multi-Point Link
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Dimensions | ⌀152.1 × 55.8 mm (⌀6 × 2.2″) |
| Weight (Without Mount) | 347 g (12.2 oz) |
| Weight (With Mount) | 409 g (14.4 oz) |
| Enclosure Material | UV Stabilized Polycarbonate |
| Mount Material | UV Stabilized Polycarbonate |
| Mounting | Pole Mount |
| Pole Diameter | 20 to 53.1 mm (0.8 to 2.1″) |
| Weatherproofing | IPX6 |
| Wind Loading | 31.3 N @ 200 km/h (7 lbf @ 125 mph) |
| Processor | Dual-Core ARM Cortex-A53 @ 1 GHz |
| Memory | 512 MB |
| Networking Interface | 1 × Gigabit Ethernet (RJ45) |
| Max Power Consumption | 10 W |
| Power Method | Passive PoE (2-pair & 4-pair) |
| Supported Voltage | 22–27V DC / 44–54V DC |
| Power Supply | 48V DC, 0.5A Gigabit PoE Adapter (Included) |
| GPS | No |
| Reset Button | 1 × Factory Reset |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 5–95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Operating Modes | PtP, PtMP Station |
| Total Throughput | 2 Gbps |
| Max Range (PtP) | Up to 1.5 km (1 mile) |
| Max Range (PtMP – Wave AP) | Up to 1.3 km |
| Max Range (PtMP – Wave AP Micro/Gen2) | Up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| 60 GHz Frequency | 57–71 GHz |
| 60 GHz Channel Bandwidth | 2160, 1080, 540 MHz |
| 60 GHz Antenna Gain | 27.7 dBi |
| 60 GHz Polarization | Vertical Linear |
| 60 GHz Beamwidth | 6° Azimuth / 6° Elevation |
| 60 GHz Modulation | 16QAM, QPSK |
| Backup Radio Standard | Wi-Fi 6 (802.11ax) |
| Backup Radio Frequency | 5180–5875 MHz |
| Backup Radio Channel Width | 20, 40, 80 MHz |
| Backup Radio Antenna Gain | 9 dBi |
| Backup Radio Polarization | Dual Linear |
| Backup Radio Beamwidth | 50° Azimuth / 50° Elevation |
| Cross-Pol Isolation | 15 dB |
| Max Wi-Fi Modulation | 1024-QAM |
| Discovery Protocol | Yes |
| Traffic Shaping with Burst | Yes |
| UISP Management | Yes |
| SNMP | Yes |
| NTP Client | Yes |
| Ping Watchdog | Yes |
| Cable Test | Yes |
| Wave AI | Yes |
| Antenna Alignment | Yes |
| Site Survey | Yes |
| Speed Test | Yes |
| Ping Utility | Yes |
| Traceroute | Yes |
| Discovery Utility | Yes |
| Bridge/Router Mode | Yes |
| Application Requirement (UISP Web) | Version 2.4.61+ |
| Application Requirement (UISP Mobile iOS) | Version 2.32.0+ |
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, Jun 19
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
New
[product_pdf]
| Dimensions | ⌀152.1 × 55.8 mm (⌀6 × 2.2″) |
| Weight (Without Mount) | 347 g (12.2 oz) |
| Weight (With Mount) | 409 g (14.4 oz) |
| Enclosure Material | UV Stabilized Polycarbonate |
| Mount Material | UV Stabilized Polycarbonate |
| Mounting | Pole Mount |
| Pole Diameter | 20 to 53.1 mm (0.8 to 2.1″) |
| Weatherproofing | IPX6 |
| Wind Loading | 31.3 N @ 200 km/h (7 lbf @ 125 mph) |
| Processor | Dual-Core ARM Cortex-A53 @ 1 GHz |
| Memory | 512 MB |
| Networking Interface | 1 × Gigabit Ethernet (RJ45) |
| Max Power Consumption | 10 W |
| Power Method | Passive PoE (2-pair & 4-pair) |
| Supported Voltage | 22–27V DC / 44–54V DC |
| Power Supply | 48V DC, 0.5A Gigabit PoE Adapter (Included) |
| GPS | No |
| Reset Button | 1 × Factory Reset |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 5–95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Operating Modes | PtP, PtMP Station |
| Total Throughput | 2 Gbps |
| Max Range (PtP) | Up to 1.5 km (1 mile) |
| Max Range (PtMP – Wave AP) | Up to 1.3 km |
| Max Range (PtMP – Wave AP Micro/Gen2) | Up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| 60 GHz Frequency | 57–71 GHz |
| 60 GHz Channel Bandwidth | 2160, 1080, 540 MHz |
| 60 GHz Antenna Gain | 27.7 dBi |
| 60 GHz Polarization | Vertical Linear |
| 60 GHz Beamwidth | 6° Azimuth / 6° Elevation |
| 60 GHz Modulation | 16QAM, QPSK |
| Backup Radio Standard | Wi-Fi 6 (802.11ax) |
| Backup Radio Frequency | 5180–5875 MHz |
| Backup Radio Channel Width | 20, 40, 80 MHz |
| Backup Radio Antenna Gain | 9 dBi |
| Backup Radio Polarization | Dual Linear |
| Backup Radio Beamwidth | 50° Azimuth / 50° Elevation |
| Cross-Pol Isolation | 15 dB |
| Max Wi-Fi Modulation | 1024-QAM |
| Discovery Protocol | Yes |
| Traffic Shaping with Burst | Yes |
| UISP Management | Yes |
| SNMP | Yes |
| NTP Client | Yes |
| Ping Watchdog | Yes |
| Cable Test | Yes |
| Wave AI | Yes |
| Antenna Alignment | Yes |
| Site Survey | Yes |
| Speed Test | Yes |
| Ping Utility | Yes |
| Traceroute | Yes |
| Discovery Utility | Yes |
| Bridge/Router Mode | Yes |
| Application Requirement (UISP Web) | Version 2.4.61+ |
| Application Requirement (UISP Mobile iOS) | Version 2.32.0+ |
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, Jun 19
Dispatch time:
Loading timer...
Delivery Date & Time for:
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Description
Ubiquiti Wave-Pico 60GHz PtMP station WiFi Point-to-Multi-Point Link
The Ubiquiti Wave-Pico Outdoor 60GHz 27.7dBi WiFi Point-to-Multi-Point Link is a lightweight, compact 60 GHz PtMP station powered by Wave Technology. It is designed for seamless deployment in outdoor environments, offering unparalleled performance and reliability.
Key Features
- Max. link range:
- Wave AP: 1.3 km (sold separately, see accessories tab)
- Wave AP Micro: 0.9 km (sold separately, see accessories tab)
- Max. throughput: 2 Gbps (1 Gbps duplex).
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps).
- One (1) GbE RJ45 port.
- Includes 48V DC 0.5A Gigabit PoE adapter.
- Integrated Bluetooth.
Exceptional Mechanical Design
The Wave-Pico boasts a meticulously engineered mechanical design, ensuring durability and versatility in outdoor installations. The lightweight profile offers easy handling and deployment. Constructed from UV stabilised polycarbonate, both the enclosure and mount are built to withstand harsh environmental conditions, making the Wave-Pico ideal for deployment in diverse settings. Its IPX6 weatherproof rating ensures reliable operation even in challenging weather conditions.
Powerful Hardware Components
Equipped with cutting-edge hardware components, the Ubiquiti Wave-Pico delivers robust performance and seamless connectivity. Featuring a dual-core ARM Cortex-A53 processor clocked at 1 GHz and DDR3L 512 MB memory, it ensures efficient data processing and smooth operation. With a GbE RJ45 port and support for a maximum power consumption of 10W, the Wave-Pico provides reliable network connectivity and efficiency. The passive PoE, along with the included 48V DC, 0.5A Gigabit PoE adapter, offer flexible power supply options, catering to various deployment scenarios.
Advanced RF Technology and Backup RF Capabilities
The Wave-Pico harnesses advanced RF technology to deliver high-speed, secure, and reliable wireless connectivity. Operating in the 57–71 GHz frequency range, with a channel bandwidth of 2160, 1080 MHz, and support for modulation schemes such as 16QAM and QPSK, it ensures exceptional signal strength and coverage. With an antenna gain of 27.7 dBi and vertically linear polarisation, the Wave-Pico offers precise targeting and reduced interference, making it ideal for point-to-multi-point deployments. Moreover, its backup RF capabilities supporting WiFi 6 (802.11ax) standard ensure seamless connectivity and redundancy, enhancing network resilience and performance in dynamic outdoor environments.
Technical Table
| Dimensions | ⌀152.1 × 55.8 mm (⌀6 × 2.2″) |
| Weight (Without Mount) | 347 g (12.2 oz) |
| Weight (With Mount) | 409 g (14.4 oz) |
| Enclosure Material | UV Stabilized Polycarbonate |
| Mount Material | UV Stabilized Polycarbonate |
| Mounting | Pole Mount |
| Pole Diameter | 20 to 53.1 mm (0.8 to 2.1″) |
| Weatherproofing | IPX6 |
| Wind Loading | 31.3 N @ 200 km/h (7 lbf @ 125 mph) |
| Processor | Dual-Core ARM Cortex-A53 @ 1 GHz |
| Memory | 512 MB |
| Networking Interface | 1 × Gigabit Ethernet (RJ45) |
| Max Power Consumption | 10 W |
| Power Method | Passive PoE (2-pair & 4-pair) |
| Supported Voltage | 22–27V DC / 44–54V DC |
| Power Supply | 48V DC, 0.5A Gigabit PoE Adapter (Included) |
| GPS | No |
| Reset Button | 1 × Factory Reset |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 5–95% Non-Condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Operating Modes | PtP, PtMP Station |
| Total Throughput | 2 Gbps |
| Max Range (PtP) | Up to 1.5 km (1 mile) |
| Max Range (PtMP – Wave AP) | Up to 1.3 km |
| Max Range (PtMP – Wave AP Micro/Gen2) | Up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| 60 GHz Frequency | 57–71 GHz |
| 60 GHz Channel Bandwidth | 2160, 1080, 540 MHz |
| 60 GHz Antenna Gain | 27.7 dBi |
| 60 GHz Polarization | Vertical Linear |
| 60 GHz Beamwidth | 6° Azimuth / 6° Elevation |
| 60 GHz Modulation | 16QAM, QPSK |
| Backup Radio Standard | Wi-Fi 6 (802.11ax) |
| Backup Radio Frequency | 5180–5875 MHz |
| Backup Radio Channel Width | 20, 40, 80 MHz |
| Backup Radio Antenna Gain | 9 dBi |
| Backup Radio Polarization | Dual Linear |
| Backup Radio Beamwidth | 50° Azimuth / 50° Elevation |
| Cross-Pol Isolation | 15 dB |
| Max Wi-Fi Modulation | 1024-QAM |
| Discovery Protocol | Yes |
| Traffic Shaping with Burst | Yes |
| UISP Management | Yes |
| SNMP | Yes |
| NTP Client | Yes |
| Ping Watchdog | Yes |
| Cable Test | Yes |
| Wave AI | Yes |
| Antenna Alignment | Yes |
| Site Survey | Yes |
| Speed Test | Yes |
| Ping Utility | Yes |
| Traceroute | Yes |
| Discovery Utility | Yes |
| Bridge/Router Mode | Yes |
| Application Requirement (UISP Web) | Version 2.4.61+ |
| Application Requirement (UISP Mobile iOS) | Version 2.32.0+ |
