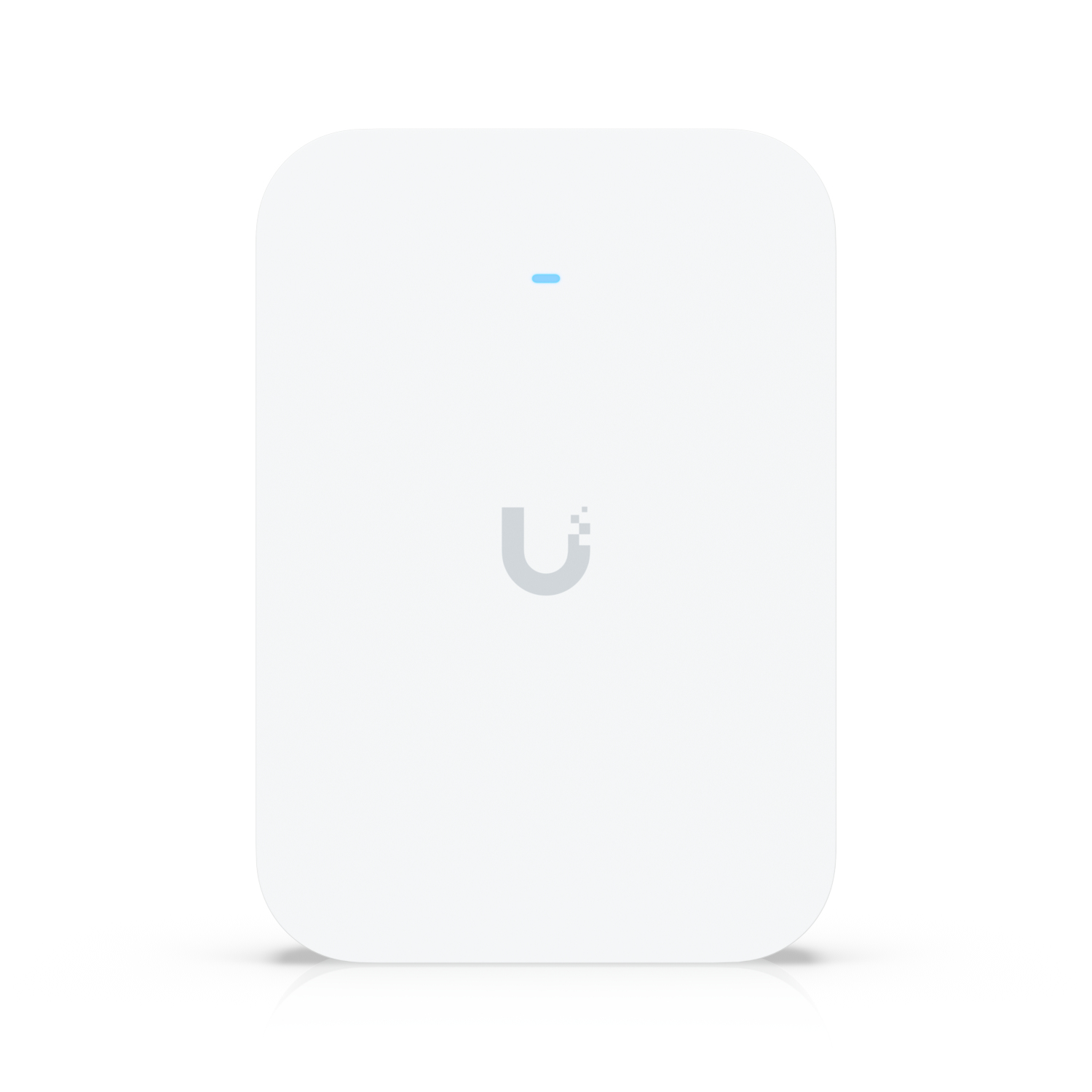

Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Ubiquiti |
| Product type | Wireless Access Points |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 42.5 – 57 V |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Width | 155 mm |
| Depth | 108 mm |
| Weight | 505 g |
| Height | 33.5 mm |
Buy new:
Excl. VAT: £235.80
Incl. VAT: £282.96
Delivery Date:
Order Within:
Deliver to:
In Stock
In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
| Brand | Ubiquiti |
| Product type | Wireless Access Points |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 42.5 – 57 V |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Width | 155 mm |
| Depth | 108 mm |
| Weight | 505 g |
| Height | 33.5 mm |
Description
Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
The Ubiquiti U7-Pro-XG-Wall UniFi Tri-Band WiFi 7 Access Point is a wall-mounted 6 GHz-ready WiFi 7 Access Point with 1/2.5/10 GbE support.
Key Features
- WiFi 7 with 6 GHz support.
- Six (6) spatial streams.
- 140 m2 (1,500 ft2) coverage.
- Supports 300+ connected devices.
- Powered using PoE+ (PoE injector sold separately, see accessories tab).
- One (1) 10GbE uplink port.
6GHz Band Support
Supporting the latest WiFi 7 standard, the U7-Pro-XG-Wall access point operates across the 2.4 GHz, 5 GHz, and 6 GHz bands, providing a combined maximum data rate of up to 10.7Gbps. This tri-band capability ensures optimal performance and minimal interference, making it ideal for environments with high device densities and substantial bandwidth requirements.
High-Capacity WiFi Network
The U7-Pro-XG-Wall features six (6) spatial streams, utilising 2×2 MU-MIMO on each band. This configuration enhances data throughput and reliability, allowing for efficient management of multiple simultaneous connections. The access point is capable of supporting over 300 concurrent clients within a coverage area of approximately 140 m2 (1,500 ft2), ensuring robust connectivity for a multitude of devices.
10GbE Multi-Rate Ethernet
Equipped with multi-rate Ethernet support, including 10G, 5G, 2.5G, and 1G, the U7-Pro-XG-Wall ensures high-speed, stable connections to your network infrastructure, optimising data throughput. Additionally, it is powered using PoE+, simplifying installation by reducing the need for additional power sources (see accessories tab for PoE injector).
Robust Security Features
Incorporating advanced features such as wireless meshing, band steering, and support for technologies like 802.11v BSS Transition Management, 802.11r Fast Roaming, and 802.11k Radio Resource Management, the U7-Pro-XG-Wall ensures seamless and efficient network performance. Security is also a priority, with support for WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK), guest network isolation, and dynamic VLAN assignment, providing a secure and customisable wireless networking solution.
Technical Table
| Brand | Ubiquiti |
| Product type | Wireless Access Points |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 42.5 – 57 V |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Width | 155 mm |
| Depth | 108 mm |
| Weight | 505 g |
| Height | 33.5 mm |
Excl. VAT: £235.80
Incl. VAT: £282.96
Delivery Date:
Dispatch time:
Delivery Date & Time for:
In Stock
In Stock
Returns
Support
Payment
Secure transaction
Reviews
There are no reviews yet.
Description
Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
The Ubiquiti U7-Pro-XG-Wall UniFi Tri-Band WiFi 7 Access Point is a wall-mounted 6 GHz-ready WiFi 7 Access Point with 1/2.5/10 GbE support.
Key Features
- WiFi 7 with 6 GHz support.
- Six (6) spatial streams.
- 140 m2 (1,500 ft2) coverage.
- Supports 300+ connected devices.
- Powered using PoE+ (PoE injector sold separately, see accessories tab).
- One (1) 10GbE uplink port.
6GHz Band Support
Supporting the latest WiFi 7 standard, the U7-Pro-XG-Wall access point operates across the 2.4 GHz, 5 GHz, and 6 GHz bands, providing a combined maximum data rate of up to 10.7Gbps. This tri-band capability ensures optimal performance and minimal interference, making it ideal for environments with high device densities and substantial bandwidth requirements.
High-Capacity WiFi Network
The U7-Pro-XG-Wall features six (6) spatial streams, utilising 2×2 MU-MIMO on each band. This configuration enhances data throughput and reliability, allowing for efficient management of multiple simultaneous connections. The access point is capable of supporting over 300 concurrent clients within a coverage area of approximately 140 m2 (1,500 ft2), ensuring robust connectivity for a multitude of devices.
10GbE Multi-Rate Ethernet
Equipped with multi-rate Ethernet support, including 10G, 5G, 2.5G, and 1G, the U7-Pro-XG-Wall ensures high-speed, stable connections to your network infrastructure, optimising data throughput. Additionally, it is powered using PoE+, simplifying installation by reducing the need for additional power sources (see accessories tab for PoE injector).
Robust Security Features
Incorporating advanced features such as wireless meshing, band steering, and support for technologies like 802.11v BSS Transition Management, 802.11r Fast Roaming, and 802.11k Radio Resource Management, the U7-Pro-XG-Wall ensures seamless and efficient network performance. Security is also a priority, with support for WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK), guest network isolation, and dynamic VLAN assignment, providing a secure and customisable wireless networking solution.
Technical Table
| Brand | Ubiquiti |
| Product type | Wireless Access Points |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 42.5 – 57 V |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Width | 155 mm |
| Depth | 108 mm |
| Weight | 505 g |
| Height | 33.5 mm |
