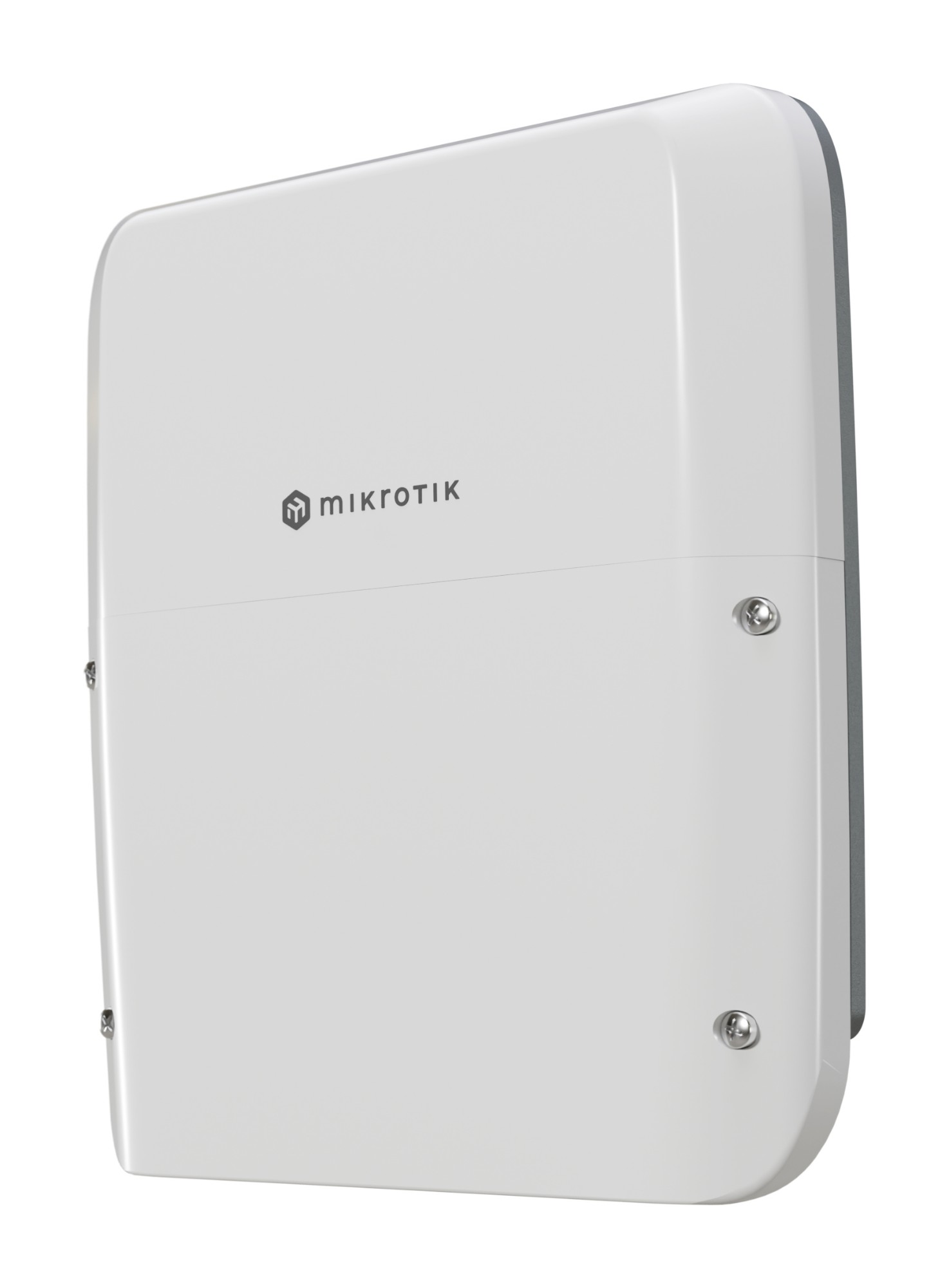

Mikrotik wired router 2.5 Gigabit Ethernet, Gigabit Ethernet White (RB5009UPR+S+OUT)
Mikrotik RB5009UPr+S+OUT wired router 2.5 Gigabit Ethernet, Gigabit Ethernet White
Description
– easy to deploy
– works well in ANY weather
– provides extensive power redundancy
– can be connected via most common networking interfaces
– has a CPU that is strong enough to take full advantage of the most powerful
– networking software in the world – RouterOS v7
– doesn’t cost a fortuneAdding an IP66-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market!
Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!
When we say “extensive power redundancy”, we really mean it: the unit offers 9 possible ways of powering. There’s a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy!
All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.
When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!
The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!
Specifications
| Memory | |
|---|---|
| Internal memory | 1024 MB |
| Performance | |
| Internal storage capacity | 1 GB |
| Voltage monitoring | Yes |
| Operating system installed | RouterOS |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| Mean time between failures (MTBF) | 200000 h |
| Temperature monitoring | Yes |
| Processor model | 88F7040 |
| WAN connection | |
| SFP WAN | No |
| Ethernet WAN | No |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 8 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports | 8 |
| DC-in jack | Yes |
| SFP+ module slots quantity | 1 |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| Mean time between failures (MTBF) | 200000 h |
| Product colour | White |
| Features | |
| Internal storage capacity | 1 GB |
| Voltage monitoring | Yes |
| Operating system installed | RouterOS |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| Mean time between failures (MTBF) | 200000 h |
| Certification | CE, EAC, ROHS |
| Processor manufacturer | Marvell |
| Temperature monitoring | Yes |
| Processor model | 88F7040 |
| Design | |
| Product colour | White |
| Power | |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 150 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 – 70 °C |
| Weight & dimensions | |
| Width | 222 mm |
| Depth | 239 mm |
| Height | 57 mm |
| Packaging data | |
| Manual | Yes |
| Certificates | |
| Certification | CE, EAC, ROHS |
| Packaging content | |
| Manual | Yes |
