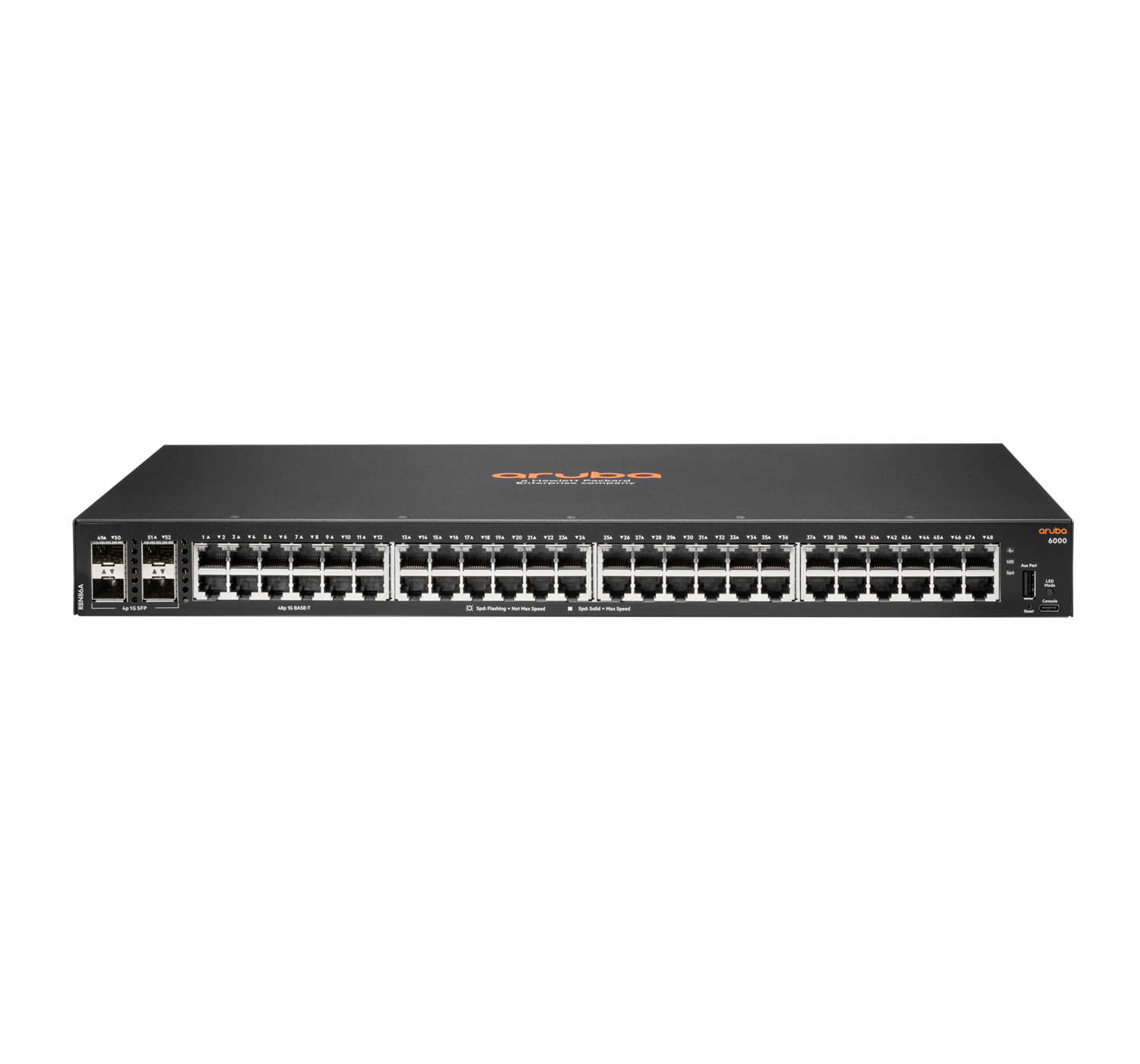

HPE Aruba Networking R8N86A 48 Port Managed Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 44.2 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 247.3 mm |
| Height | 44 mm |
| Weight | 3.02 kg |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Buy new:
Excl. VAT: £559.41
Excl Sale. VAT: £475.50
Incl. VAT: £671.29
Incl Sale. VAT: £570.60
Delivery Date:
Wednesday, May 6
Order Within:
Loading timer...
Deliver to:
7 In Stock
7 In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
-15%
[product_pdf]
HPE Aruba Networking R8N86A 48 Port Managed Switch
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 44.2 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 247.3 mm |
| Height | 44 mm |
| Weight | 3.02 kg |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Description
HPE Aruba Networking R8N86A 48 Port Managed Switch
Entry Level Layer 2 Access Switches
The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
Fully-managed enterprise vclass switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6000 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.
Up to four built-in wire speed 1 GbE uplinks remove bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Technical Table
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 44.2 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 247.3 mm |
| Height | 44 mm |
| Weight | 3.02 kg |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
