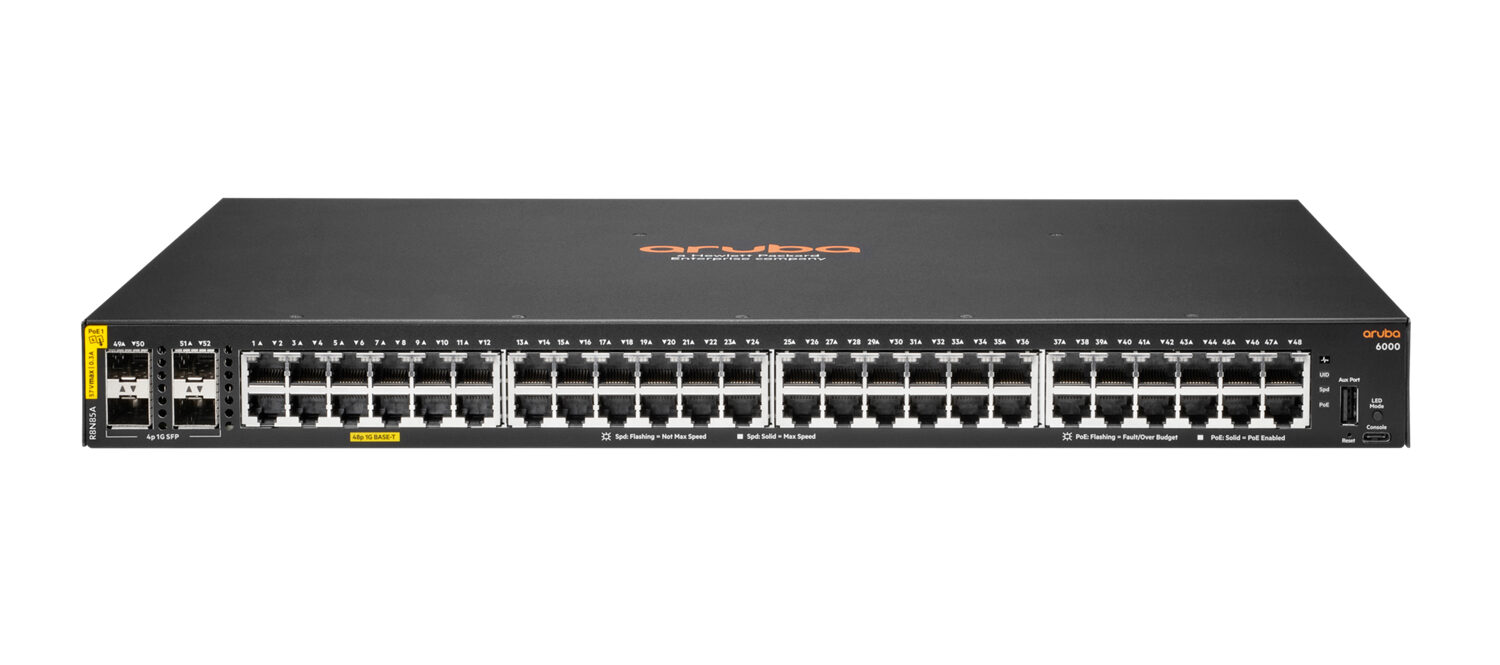

HPE Aruba 6000 R8N85A 48G Class4 PoE 4SFP 370W Managed Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L2 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 45 W |
| Web-based management | Yes |
| Cloud-managed | Yes |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Weight | 4.42 kg |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Buy new:
Original price was: £835.15£1,002.18.£767.50£921.00Current price is: £767.50£921.00. Ex VatInc Vat
Delivery Date:
Monday, Jun 15
Order Within:
Loading timer...
Deliver to:
5 In Stock
5 In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
-8%
[product_pdf]
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L2 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 45 W |
| Web-based management | Yes |
| Cloud-managed | Yes |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Weight | 4.42 kg |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Buy new:
Original price was: £835.15£1,002.18.£767.50£921.00Current price is: £767.50£921.00. Ex VatInc Vat
Delivery Date:
Monday, Jun 15
Dispatch time:
Loading timer...
Delivery Date & Time for:
5 In Stock
5 In Stock
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Description
HPE Aruba 6000 R8N85A 48G Class4 PoE 4SFP 370W Managed Switch
Entry Level Layer 2 Access Switches
The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
Fully-managed enterprise vclass switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6000 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.
Up to four built-in wire speed 1 GbE uplinks remove bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Technical Table
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L2 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 45 W |
| Web-based management | Yes |
| Cloud-managed | Yes |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Stackable | No |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| VLAN support | Yes |
| Width | 442.5 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Weight | 4.42 kg |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
BESTSELLER PRODUCTS
SKU: USW-FLEX
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 5 |
| Switch layer | L2 |
| Switching capacity | 10 Gbps |
| Power consumption (max) | 46 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Product colour | White |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Switch type | Managed |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames support | Yes |
| Wall mountable | Yes |
| International Protection (IP) code | IP55 |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Status |
| Rack mounting | No |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Status |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 122.5 mm |
| Depth | 107.1 mm |
| Height | 28 mm |
| Weight | 230 g |
Available on Backorder
Get Instant Price
SKU: USW-FLEX-MINI-3
In Stock
£67.22£80.66 Ex VatInc Vat
SKU: USW-FLEX-MINI-5
In Stock
£109.46£131.35 Ex VatInc Vat
SKU: USW-LITE-16-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 16 |
| Power consumption (max) | 45 W |
| Product colour | white |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Wall mountable | Yes |
| Product colour | White |
| LED indicators | Network, PoE, System |
| Certification | CE, FCC, IC |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 191.7 mm |
| Depth | 185 mm |
| Height | 43.7 mm |
| Weight | 1.2 kg |
| Product colour | White |
| Harmonized System (HS) code | 85176990 |
| Certification | CE, FCC, IC |
In Stock
£156.95£188.34 Ex VatInc Vat
SKU: USW-24
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power consumption (typical) | 25 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Product colour | Silver |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 120 W |
| Power source | AC |
| Product colour | Silver |
| Stackable | Yes |
| Rack mounting | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L2 |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
| Certification | CE, FCC, IC |
| Product colour | Silver |
| Stackable | Yes |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 2.7 kg |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
In Stock
£175.45£210.54 Ex VatInc Vat
SKU: USW-24-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L2 |
| Power consumption | 95 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Throughput | 26000 Mpps |
| Switching capacity | 52 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 38.69 Mpps |
| Authentication type | IEEE 802.1x, RADIUS |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Speed, System |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 92 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 3 kg |
In Stock
£285.50£342.60 Ex VatInc Vat
SKU: USW-48-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L2 |
| Power consumption | 195 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 77.38 Mpps |
| Throughput | 52 Gbit/s |
| Authentication type | RADIUS |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Stainless steel |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Fanless | Yes |
| LED indicators | Activity, Link, Speed |
| Power consumption (max) | 45 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC/DC |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 4.52 kg |
| Manual | Yes |
In Stock
£436.50£523.80 Ex VatInc Vat
SKU: USW-Pro-48
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Power consumption (max) | 60 W |
| Product colour | Silver |
| Switch type | Managed |
| VLAN support | Yes |
| Form factor | 1U |
| Rack mounting | Yes |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.944 Mpps |
| Authentication type | IEEE 802.1x, RADIUS |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, Speed |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.22 A |
| DC input voltage | 11.5 V |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4 kg |
| User guide | Yes |
| Harmonized System (HS) code | 85176990 |
| User guide | Yes |
In Stock
£460.06£552.07 Ex VatInc Vat
SKU: USW-Pro-24-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IPv4 routes | 64 |
| IGMP snooping | Yes |
| Throughput | 44000 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 88 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 65.472 Mpps |
| Number of VLANs | 1000 |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| Power consumption (max) | 450 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4.3 kg |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Form factor | 1U |
| Product colour | Silver |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| LED indicators | Activity, Link, PoE, Speed, System |
In Stock
£540.50£648.60 Ex VatInc Vat
Reviews
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
