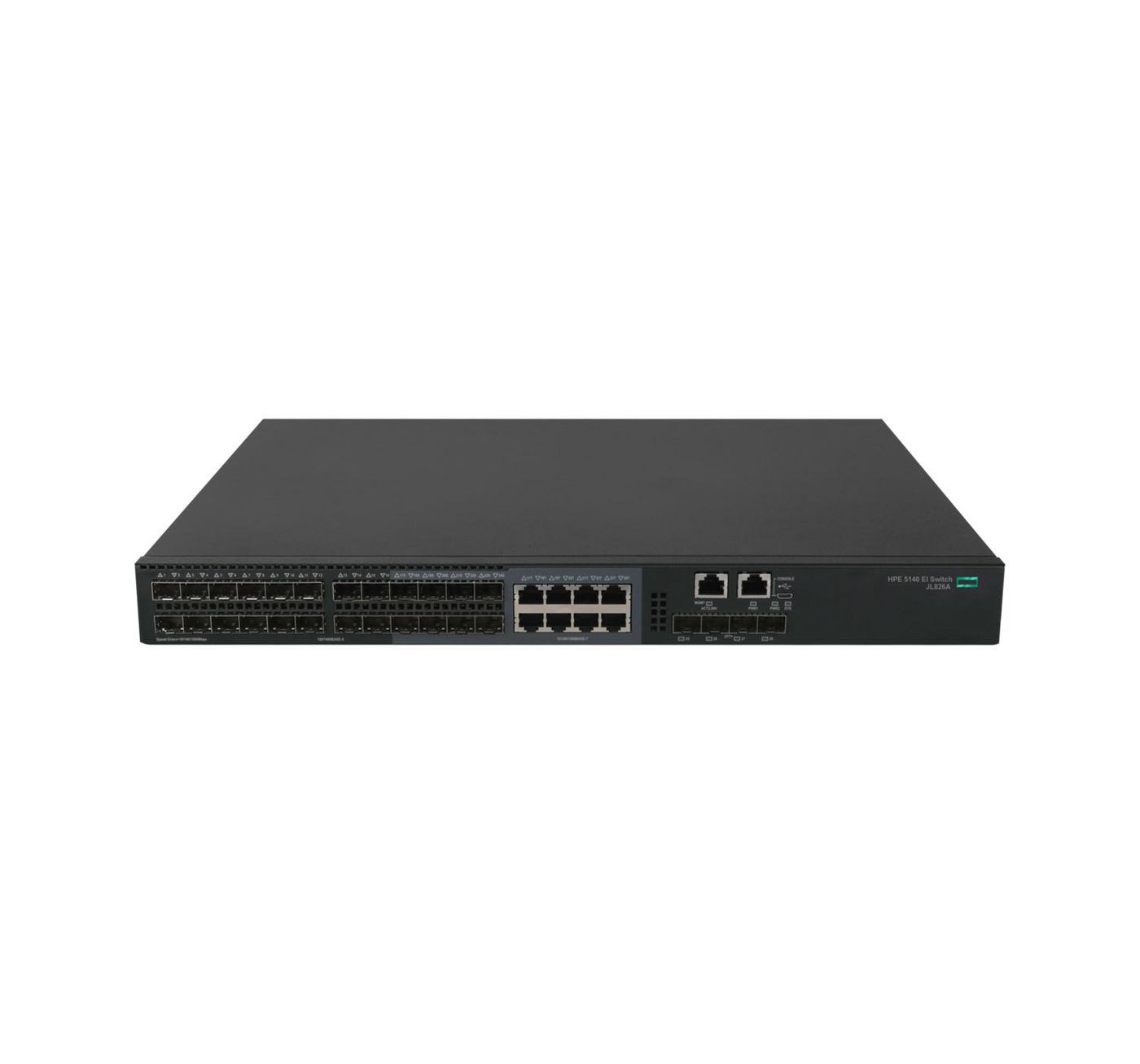

HPE FlexNetwork 5140 JL826A 24G SFP w/8G Combo 4SFP+ EI Managed Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, May 7
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
Description
HPE FlexNetwork 5140 JL826A 24G SFP w/8G Combo 4SFP+ EI Managed Switch
Hewlett Packard Enterprise FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI Managed L3 Gigabit Ethernet (10/100/1000) 1U (JL826A)
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| IPv6 FIB entries | 256 |
| IPv4 FIB entries | 512 |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 256 |
| IPv4 FIB entries | 512 |
| Performance | |
| Stackable | Yes |
| Physical stacking (units) | 9 |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Physical stacking (units) | 9 |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Data transmission | |
| Throughput | 96 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| MAC address table | 16384 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | HWTACACS, RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| IPv6 FIB entries | 256 |
| IPv4 FIB entries | 512 |
| Memory | |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 57 W |
| Power supply included | No |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 360 mm |
| Height | 43.6 mm |
| Weight | 6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Technical Table
