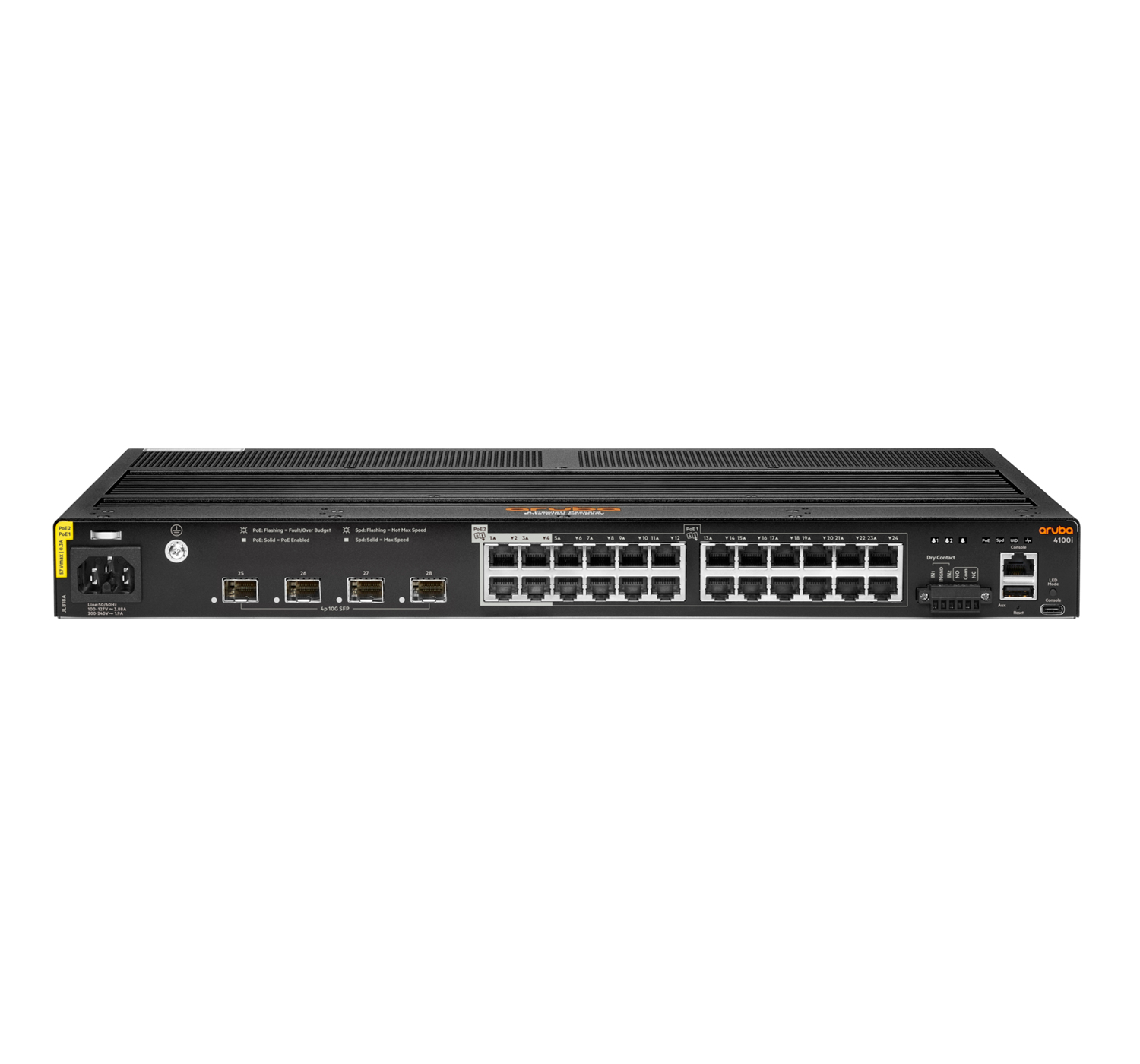

HPE Aruba JL818A 4100i 24G CL4/6 POE 4SFP+ Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L2 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 95 Mpps |
| Latency (1 Gbps) | 1.585 µs |
| Latency (10 Gbps) | 1.243 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 4200 m |
| Non-operating altitude | 0 – 4600 m |
| Heat dissipation | 117 BTU/h |
| VLAN support | Yes |
| Width | 444.5 mm |
| Depth | 304.4 mm |
| Height | 44 mm |
| Weight | 6.47 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
HPE Aruba JL818A 4100i 24G CL4/6 POE 4SFP+ Switch
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L2 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 95 Mpps |
| Latency (1 Gbps) | 1.585 µs |
| Latency (10 Gbps) | 1.243 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 4200 m |
| Non-operating altitude | 0 – 4600 m |
| Heat dissipation | 117 BTU/h |
| VLAN support | Yes |
| Width | 444.5 mm |
| Depth | 304.4 mm |
| Height | 44 mm |
| Weight | 6.47 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
Description
HPE Aruba JL818A 4100i 24G CL4/6 POE 4SFP+ Switch
The Aruba CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.
Based on the programmable AOS-CX operating system used across the Aruba CX portfolio, this IP30 ruggedized series helps deliver a more consistent, more efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the Aruba CX 4100i also simplifies ownership with no switch software licensing requirements.
Ruggedized Aruba CX Switches
– The Aruba CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.
– Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
– Achieve versatile , deployment with fan less 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10GbE uplinks and up to 360W Class 4 and Class 6 PoE.
– Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.
– Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
– The Aruba CX 4100i Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. ,
– Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet. ,
– Built-in wire speed 1/10GbE uplinks remove bottlenecks at the access layer where devices connect.
Simplified Configuration and Management
– The Aruba CX 4100i Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use built-in web GUI, or industry standard CLI. ,
– Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. ,
– Software-defined ready with REST APIs for fine-grained programmability of network tasks.
Smarter Segmentation
– The Aruba CX 4100i Switch Series supports Aruba Dynamic Segmentation1 that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. ,
– Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
– Reduces time-consuming and error-prone task of adds, moves and changes.
Technical Table
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L2 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 95 Mpps |
| Latency (1 Gbps) | 1.585 µs |
| Latency (10 Gbps) | 1.243 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 4200 m |
| Non-operating altitude | 0 – 4600 m |
| Heat dissipation | 117 BTU/h |
| VLAN support | Yes |
| Width | 444.5 mm |
| Depth | 304.4 mm |
| Height | 44 mm |
| Weight | 6.47 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Reviews
There are no reviews yet.
Description
HPE Aruba JL818A 4100i 24G CL4/6 POE 4SFP+ Switch
The Aruba CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.
Based on the programmable AOS-CX operating system used across the Aruba CX portfolio, this IP30 ruggedized series helps deliver a more consistent, more efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the Aruba CX 4100i also simplifies ownership with no switch software licensing requirements.
Ruggedized Aruba CX Switches
– The Aruba CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.
– Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
– Achieve versatile , deployment with fan less 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10GbE uplinks and up to 360W Class 4 and Class 6 PoE.
– Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.
– Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
– The Aruba CX 4100i Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. ,
– Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet. ,
– Built-in wire speed 1/10GbE uplinks remove bottlenecks at the access layer where devices connect.
Simplified Configuration and Management
– The Aruba CX 4100i Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use built-in web GUI, or industry standard CLI. ,
– Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. ,
– Software-defined ready with REST APIs for fine-grained programmability of network tasks.
Smarter Segmentation
– The Aruba CX 4100i Switch Series supports Aruba Dynamic Segmentation1 that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. ,
– Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
– Reduces time-consuming and error-prone task of adds, moves and changes.
Technical Table
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L2 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Throughput | 95 Mpps |
| Latency (1 Gbps) | 1.585 µs |
| Latency (10 Gbps) | 1.243 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 4200 m |
| Non-operating altitude | 0 – 4600 m |
| Heat dissipation | 117 BTU/h |
| VLAN support | Yes |
| Width | 444.5 mm |
| Depth | 304.4 mm |
| Height | 44 mm |
| Weight | 6.47 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
BESTSELLER PRODUCTS
Incl. VAT: £273.36
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 8 |
| Switch layer | L3 |
| Switching capacity | 80 Gbit/s |
| Power Consumption Max | 120 W |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -5 - 45 °C |
| Product colour | Stainless steel |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2:00 AM |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Width | 248 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
| Harmonized System (HS) code | 85176990 |
| Manual | Yes |
Incl. VAT: £419.66
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L2 |
| Power consumption | 195 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 77.38 Mpps |
| Throughput | 52 Gbit/s |
| Authentication type | RADIUS |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Stainless steel |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Fanless | Yes |
| LED indicators | Activity, Link, Speed |
| Power consumption (max) | 45 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC/DC |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 4.52 kg |
| Manual | Yes |
Incl. VAT: £523.80
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L3 |
| Ports | 8 |
| Power consumption | 60 W |
| Ports type | 2.5G Ethernet (100/1000/2500) |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Power connector | DC-in jack |
| 2.5G Ethernet (copper) ports quantity | 1 |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| 10G support | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | IP subnet–based VLAN |
| IGMP proxy | Yes |
| Throughput | 5 Gbit/s |
| IGMP proxy | Yes |
| DHCP features | DHCP relay, DHCP server |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Activity, Error, Link, Ready |
| Housing material | Aluminium, Galvanized steel |
| Rack mounting | Yes |
| Processor frequency | 2000 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Stackable | No |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Input current | 0.083333333 |
| DC input voltage | 12 V |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN |
| Width | 442.4 mm |
| Depth | 285.6 mm |
| Height | 43.7 mm |
| Weight | 4.7 kg |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Sustainability compliance | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| Processor frequency | 2000 MHz |
| Housing material | Aluminium, Galvanized steel |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| LED indicators | Activity, Error, Link, Ready |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Incl. VAT: £538.20
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IPv4 routes | 64 |
| IGMP snooping | Yes |
| Throughput | 44000 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 88 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 65.472 Mpps |
| Number of VLANs | 1000 |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| Power consumption (max) | 450 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4.3 kg |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Form factor | 1U |
| Product colour | Silver |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| LED indicators | Activity, Link, PoE, Speed, System |
Incl. VAT: £648.60
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP+ modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 2 |
| VLAN support | Yes |
| 10G support | Yes |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Link, Network, Speed, Status |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 50 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.1 kg |
| Rack mount kit | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| LED indicators | Link, Network, Speed, Status |
| Rack mount kit | Yes |
| Cables included | Power |
Incl. VAT: £691.08
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Power consumption | 720 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 167 Mpps |
| Throughput | 112 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 820 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 341.2 BTU/h |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Packet buffer memory | 2 MB |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| LED indicators | System |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
Incl. VAT: £1,247.40
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Switching capacity | 360 Gbit/s |
| Form factor | 1U |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -5 - 40 °C |
| Product colour | White |
| Power Consumption | 720W |
| Compliance certificates | CE |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Switching capacity | 360 Gbit/s |
| Forwarding rate | 238.095 Mpps |
| Throughput | 160 Gbit/s |
| Reset button | Yes |
| Product colour | White |
| Housing material | Steel |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Input current | 10:00 AM |
| DC input voltage | 52 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
Incl. VAT: £1,341.90
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
