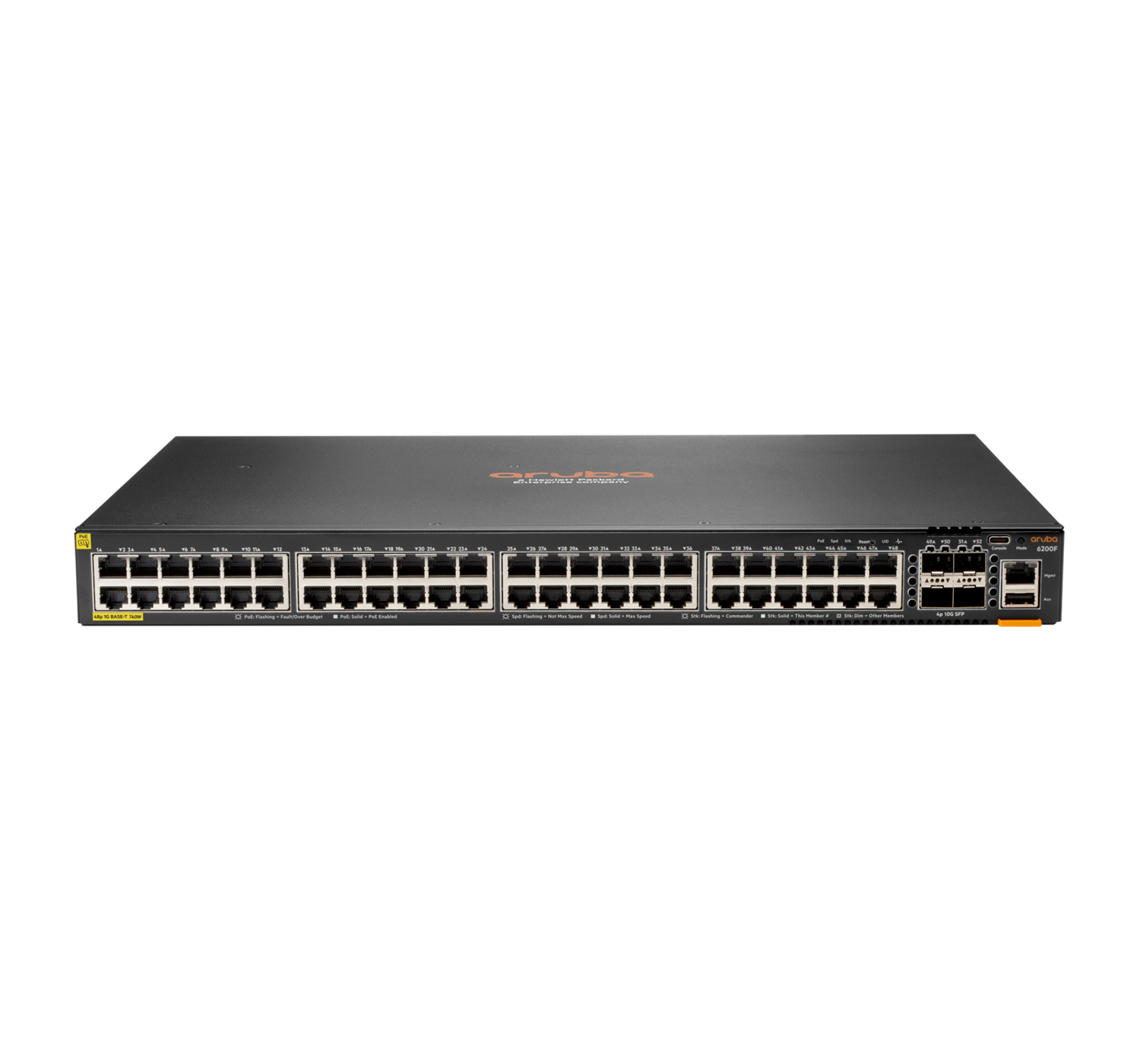

HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 740W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U(JL728B)
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, May 7
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 740W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U(JL728B)
Description
HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 740W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U(JL728B)
HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 740W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Optical fiber | |
| Transmission distance (max) | 10 km |
| Data transmission | |
| Throughput | 130.9 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | SDRAM / Flash |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 76 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 5.1 kg |
| Technical details | |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 8 MB |
| Memory type | SDRAM / Flash |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
Technical Table
