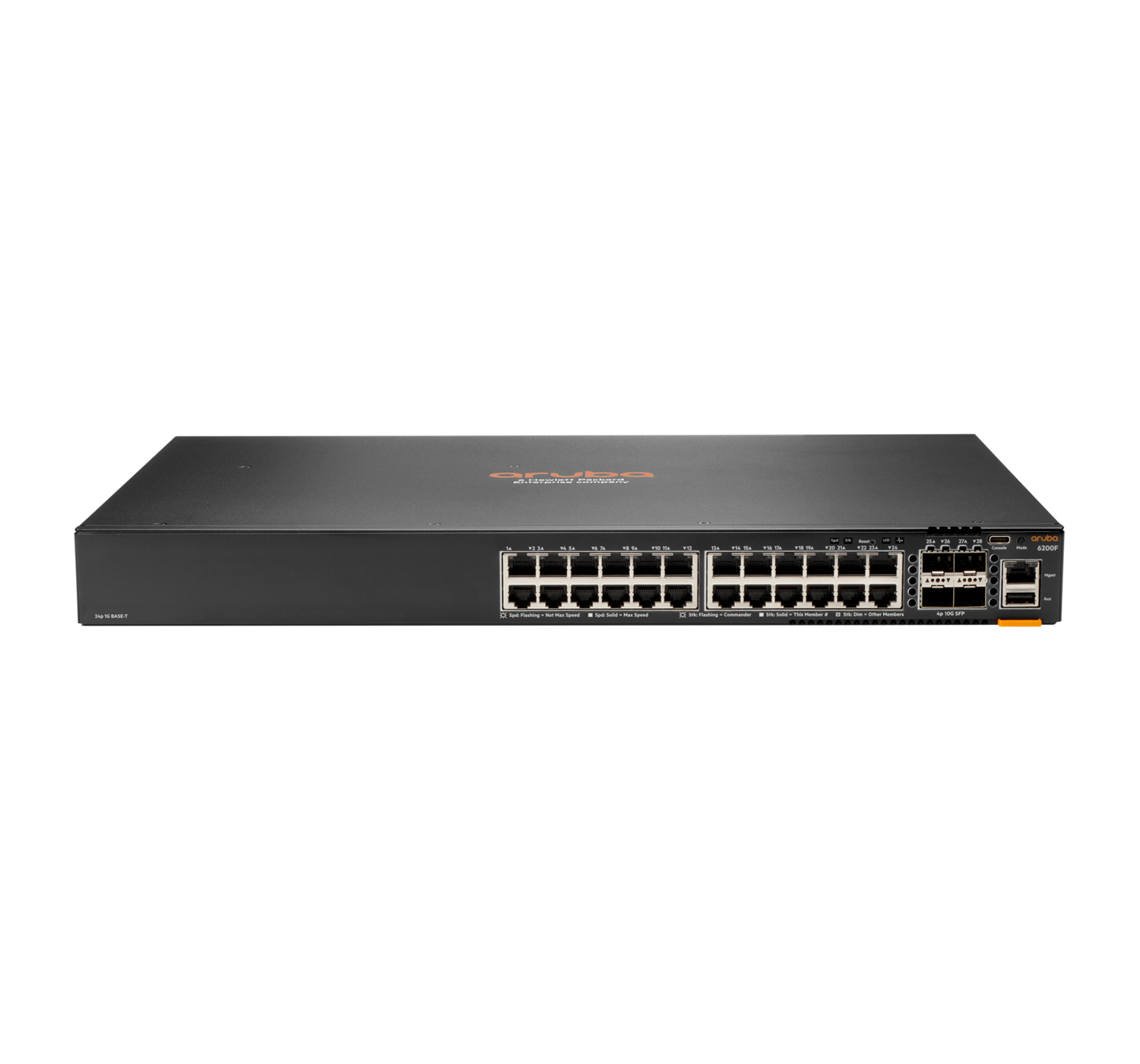

HPE Aruba JL725A 6200F 24G Class4 PoE 4SFP+ 370W L3 Managed Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L3 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| USB Type-A ports quantity | 1 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| MLD entries | 1024 |
| Transmission distance (max) | 10 km |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast support | Yes |
| MLD entries | 1024 |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | OSPFv2, OSPFv3, RIP-2 |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3048 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Width | 43.9 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.9 kg |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, May 18
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
HPE Aruba JL725A 6200F 24G Class4 PoE 4SFP+ 370W L3 Managed Switch
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L3 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| USB Type-A ports quantity | 1 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| MLD entries | 1024 |
| Transmission distance (max) | 10 km |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast support | Yes |
| MLD entries | 1024 |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | OSPFv2, OSPFv3, RIP-2 |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3048 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Width | 43.9 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.9 kg |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Description
HPE Aruba JL725A 6200F 24G Class4 PoE 4SFP+ 370W L3 Managed Switch
Simplified Configuration and Management
The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Smarter Segmentation
The HPE Aruba Networking CX 6200 Switch Series supports Dynamic Segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users.
Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.
Reduces time-consuming and error-prone task of adds, moves and changes.
Technical Table
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L3 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| USB Type-A ports quantity | 1 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| MLD entries | 1024 |
| Transmission distance (max) | 10 km |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast support | Yes |
| MLD entries | 1024 |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | OSPFv2, OSPFv3, RIP-2 |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3048 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Width | 43.9 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.9 kg |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
Reviews (0)
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, May 18
Dispatch time:
Loading timer...
Delivery Date & Time for:
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Reviews
There are no reviews yet.
Description
HPE Aruba JL725A 6200F 24G Class4 PoE 4SFP+ 370W L3 Managed Switch
Simplified Configuration and Management
The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Smarter Segmentation
The HPE Aruba Networking CX 6200 Switch Series supports Dynamic Segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users.
Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.
Reduces time-consuming and error-prone task of adds, moves and changes.
Technical Table
| Brand | HPE |
| Type | Network Switches |
| Switch Layer | L3 |
| Ports | 24 |
| Product colour | Black |
| Form Factor | 1U |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| USB Type-A ports quantity | 1 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| MLD entries | 1024 |
| Transmission distance (max) | 10 km |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast support | Yes |
| MLD entries | 1024 |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | OSPFv2, OSPFv3, RIP-2 |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power source | AC |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3048 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Width | 43.9 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.9 kg |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 16384 MB |
BESTSELLER PRODUCTS
SKU: USW-FLEX
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 5 |
| Switch layer | L2 |
| Switching capacity | 10 Gbps |
| Power consumption (max) | 46 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Product colour | White |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Switch type | Managed |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames support | Yes |
| Wall mountable | Yes |
| International Protection (IP) code | IP55 |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Status |
| Rack mounting | No |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Status |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 122.5 mm |
| Depth | 107.1 mm |
| Height | 28 mm |
| Weight | 230 g |
Available on Backorder
Get Instant Price
SKU: USW-FLEX-MINI-5
In Stock
Excl. VAT: £108.36
Incl. VAT: £130.04
Incl. VAT: £130.04
SKU: USW-LITE-16-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 16 |
| Power consumption (max) | 45 W |
| Product colour | white |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Wall mountable | Yes |
| Product colour | White |
| LED indicators | Network, PoE, System |
| Certification | CE, FCC, IC |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 191.7 mm |
| Depth | 185 mm |
| Height | 43.7 mm |
| Weight | 1.2 kg |
| Product colour | White |
| Harmonized System (HS) code | 85176990 |
| Certification | CE, FCC, IC |
In Stock
Excl. VAT: £155.34
Incl. VAT: £186.41
Incl. VAT: £186.41
SKU: USW-FLEX-XG
In Stock
Excl. VAT: £227.80
Incl. VAT: £273.36
Incl. VAT: £273.36
SKU: USW-Pro-24
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L3 |
| Ports | 24 |
| Power consumption (max) | 30 W |
| Product colour | Silver |
| Switch type | Managed |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 3.5 kg |
| Harmonized System (HS) code | 85176990 |
In Stock
Excl. VAT: £306.50
Incl. VAT: £367.80
Incl. VAT: £367.80
SKU: SG3210XHP-M2
In Stock
Excl. VAT: £352.62
Incl. VAT: £423.15
Incl. VAT: £423.15
SKU: USW-Enterprise-24-PoE
Key Features:
| Brand | Ubiquiti |
| Power consumption (max) | 550 W |
| Product colour | Silver |
| Switch type | Managed |
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| 10G support | Yes |
| Switching capacity | 124 Gbit/s |
| Forwarding rate | 92.25 Mpps |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 11.5 - 52 V |
| Power over Ethernet (PoE) power per port | 34.2 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | 10 - 95 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.11 kg |
In Stock
Excl. VAT: £595.46
Incl. VAT: £714.55
Incl. VAT: £714.55
SKU: USW-Pro-Max-48-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Power consumption | 720 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 167 Mpps |
| Throughput | 112 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 820 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 341.2 BTU/h |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Packet buffer memory | 2 MB |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| LED indicators | System |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
In Stock
Excl. VAT: £1,039.50
Incl. VAT: £1,247.40
Incl. VAT: £1,247.40
Reviews
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
