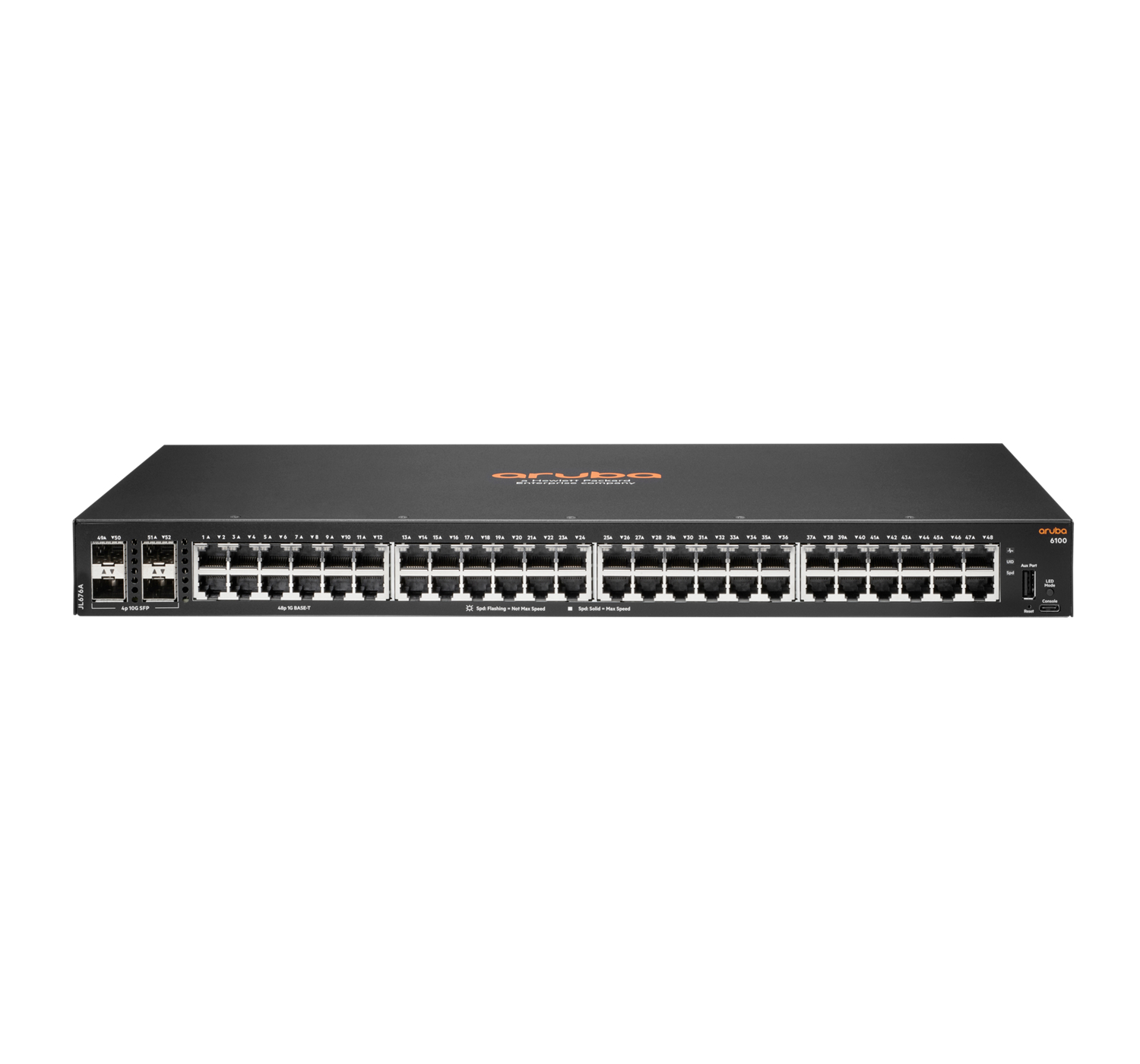

HPE Aruba CX 6100 JL676A 48G 4SFP+ Managed Switch 48-Port
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 44.2 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Throughput | 98.6 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Latency (10 Gbps) | 1.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Side-to-side airflow |
| Virtual stacking (units) | 16 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| VLAN support | Yes |
| Width | 443 mm |
| Depth | 247 mm |
| Height | 43 mm |
| Weight | 3.02 kg |
| Virtual stacking (units) | 16 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Harmonized System (HS) code | 85176990 |
Buy new:
Excl. VAT: £1,022.53
Excl Sale. VAT: £957.50
Incl. VAT: £1,227.03
Incl Sale. VAT: £1,149.00
Delivery Date:
Order Within:
Deliver to:
8 In Stock
8 In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
HPE Aruba CX 6100 JL676A 48G 4SFP+ Managed Switch 48-Port
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 44.2 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Throughput | 98.6 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Latency (10 Gbps) | 1.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Side-to-side airflow |
| Virtual stacking (units) | 16 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| VLAN support | Yes |
| Width | 443 mm |
| Depth | 247 mm |
| Height | 43 mm |
| Weight | 3.02 kg |
| Virtual stacking (units) | 16 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Harmonized System (HS) code | 85176990 |
Description
HPE Aruba CX 6100 JL676A 48G 4SFP+ Managed Switch 48-Port
Entry Level Layer 2 Access Switches
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.
Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6100 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.
Four built-in wire speed 1/10 GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
Technical Table
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 44.2 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Throughput | 98.6 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Latency (10 Gbps) | 1.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast support | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Side-to-side airflow |
| Virtual stacking (units) | 16 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| VLAN support | Yes |
| Width | 443 mm |
| Depth | 247 mm |
| Height | 43 mm |
| Weight | 3.02 kg |
| Virtual stacking (units) | 16 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Harmonized System (HS) code | 85176990 |
Excl. VAT: £1,022.53
Excl Sale. VAT: £957.50
Incl. VAT: £1,227.03
Incl Sale. VAT: £1,149.00
Delivery Date:
Dispatch time:
Delivery Date & Time for:
8 In Stock
8 In Stock
Returns
Support
Payment
Secure transaction
Reviews
There are no reviews yet.
