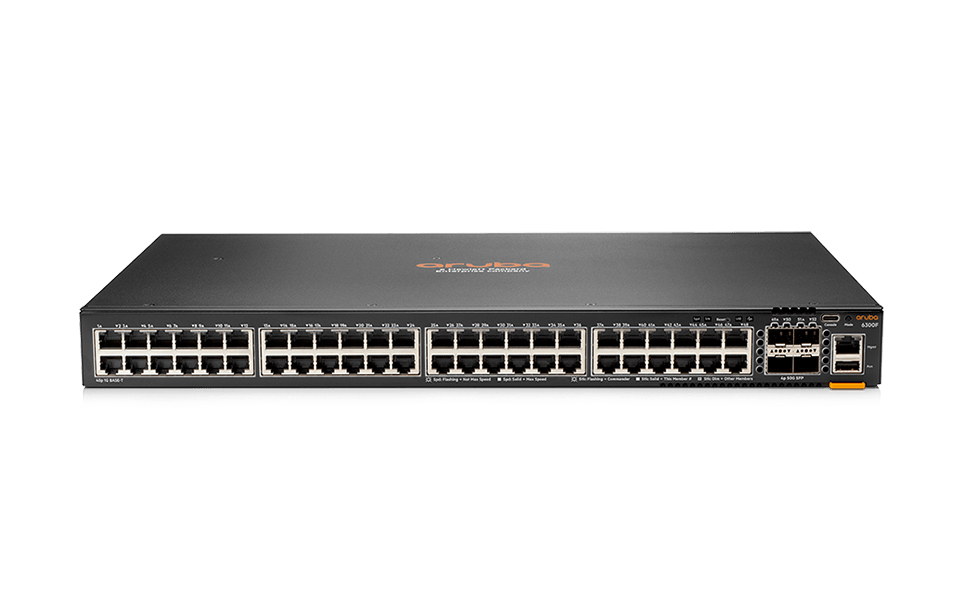

HPE JL667A Aruba CX 6300F Series 48-Port SFP56 Managed L3 Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 74 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Transmission distance (max) | 10 km |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32000 entries |
| Switching capacity | 496 Gbit/s |
| Number of queues | 8 |
| Number of multicast groups filtered | 8000 |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 8000 |
| DHCP features | DHCP relay, DHCP server |
| Number of multicast groups filtered | 8000 |
| Multicast support | Yes |
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Routing protocols | OSPF, OSPFv3 |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Certification | EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010 |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Noise level | 31.5 dB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Number of power supply units | 1 |
| Input current | 2.5/1.4 A |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3040 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Width | 442 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.46 kg |
| Rack mount kit | Yes |
| Physical stacking (units) | 10 |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Noise level | 31.5 dB |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 74 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Transmission distance (max) | 10 km |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32000 entries |
| Switching capacity | 496 Gbit/s |
| Number of queues | 8 |
| Number of multicast groups filtered | 8000 |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 8000 |
| DHCP features | DHCP relay, DHCP server |
| Number of multicast groups filtered | 8000 |
| Multicast support | Yes |
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Routing protocols | OSPF, OSPFv3 |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Certification | EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010 |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Noise level | 31.5 dB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Number of power supply units | 1 |
| Input current | 2.5/1.4 A |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3040 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Width | 442 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.46 kg |
| Rack mount kit | Yes |
| Physical stacking (units) | 10 |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Noise level | 31.5 dB |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Description
HPE JL667A Aruba CX 6300F Series 48-Port SFP56 Managed L3 Switch
Unified Management and Smarter Segmentation
The HPE Aruba Networking CX 6300 Switch Series is supported on HPE Aruba Networking Central for single point of control management that delivers enhanced network visibility and an expanded AI toolset, addressing the scale and demands of the most mission-critical environments.
Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better end-user experience and streamlined IT operations. Application recognition and control available through CX Advanced Feature Pack [1].
Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles [1].
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
High Performance and Power
The HPE Aruba Networking CX 6300 Switch Series uses a fully distributed architecture with Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100 GbE for a total of 200 to 400 Gbps of stacking throughput per switch.
CX 6300 Series switches may be deployed in a 2-member active-active design using HPE Aruba Networking Virtual Switching Extension (VSX) and an inter-switch link (ISL) for a high availability solution that maintains state synchronization and an independent control plane across both switches. [2]
Deploy wireless access points and IoT devices with CX 6300 Series models that offer high density HPE Smart Rate Multi-Gigabit Ethernet with Class 4 (30W), Class 6 (60W), and Class 8 (90W) PoE on each port (720W, 1440W, and 2880W max PoE budget options).
CX 6300L stackable, high-performance Layer 2-only switches with static routing available for customers needing scalability, high-capacity, and cost-effective connectivity in the access layer.
Automation and Analytics
The HPE Aruba Networking CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and a Time Series Database that stores configuration and operational state data, making it available to quickly resolve network issues.
Streamline network configurations at scale and provide AI-powered problem resolution for critical infrastructure platform with new AI insights in HPE Aruba Networking Central.
The HPE Aruba Networking CX Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. Advanced telemetry, automation help identify and troubleshoot network, system, application, and security issues through CLI, Python agents, and REST API.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.
HPE Aruba Networking Data Center Networking Solution <sup>[1]</sup>
Hewlett Packard Enterprise offers customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety HPE Compute, HPE Storage, HPE Networking that span virtualization, vSAN, HCI, HPC, MCS, Microsoft, SAP HANA, VMware, Nutanix application and IaaS service offerings.
The 10/25 and 40/100G CX switches can be deployed as part of an HPE integrated and mixed compute, storage and networking configuration and deployments.
These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.
Use these new tracking SKUs (R9FXXX) when CX switches are included in HPE integrated and mixed compute, storage and networking configuration and deployments.
Technical Table
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Black |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 74 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Console port | USB |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Transmission distance (max) | 10 km |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32000 entries |
| Switching capacity | 496 Gbit/s |
| Number of queues | 8 |
| Number of multicast groups filtered | 8000 |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 8000 |
| DHCP features | DHCP relay, DHCP server |
| Number of multicast groups filtered | 8000 |
| Multicast support | Yes |
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Routing protocols | OSPF, OSPFv3 |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Certification | EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010 |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Noise level | 31.5 dB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Number of power supply units | 1 |
| Input current | 2.5/1.4 A |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Operating altitude | 0 – 3040 m |
| Non-operating altitude | 0 – 4600 m |
| VLAN support | Yes |
| Width | 442 mm |
| Depth | 327 mm |
| Height | 43.9 mm |
| Weight | 4.46 kg |
| Rack mount kit | Yes |
| Physical stacking (units) | 10 |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Noise level | 31.5 dB |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
BESTSELLER PRODUCTS
Available on Backorder
Available on Backorder
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 8 |
| Power consumption (max) | 364 W |
| Form factor | 1U |
| Product colour | Silver |
| Housing material | Galvanized steel |
| Rack mounting | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| SFP+ module slots quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | No |
| 10G support | Yes |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| Throughput | 80 Gbit/s |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | System |
| Housing material | Galvanized steel |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| LED indicators | System |
| Power consumption (max) | 30 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 120 mm |
| Height | 43.7 mm |
| Weight | 2.65 kg |
| Rack mount kit | Yes |
| Cables included | AC |
| Harmonized System (HS) code | 85176990 |
| Rack mount kit | Yes |
| Cables included | AC |
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L2 |
| Switching capacity | 52 Gbit/s |
| Power consumption (max) | 40 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -15 - 40 °C |
| Product colour | Silver |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | No |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 77.376 Mpps |
| Certification | CE, FCC, IC |
| Product colour | Silver |
| LED indicators | LAN, System |
| Housing material | Steel |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| LED indicators | LAN, System |
| Power consumption (max) | 40 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 3.9 kg |
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Power consumption (max) | 60 W |
| Product colour | Silver |
| Switch type | Managed |
| VLAN support | Yes |
| Form factor | 1U |
| Rack mounting | Yes |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.944 Mpps |
| Authentication type | IEEE 802.1x, RADIUS |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, Speed |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.22 A |
| DC input voltage | 11.5 V |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4 kg |
| User guide | Yes |
| Harmonized System (HS) code | 85176990 |
| User guide | Yes |
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IPv4 routes | 64 |
| IGMP snooping | Yes |
| Throughput | 44000 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 88 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 65.472 Mpps |
| Number of VLANs | 1000 |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| Power consumption (max) | 450 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4.3 kg |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Form factor | 1U |
| Product colour | Silver |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| LED indicators | Activity, Link, PoE, Speed, System |
Key Features:
| Brand | Ubiquiti |
| Power consumption (max) | 550 W |
| Product colour | Silver |
| Switch type | Managed |
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| 10G support | Yes |
| Switching capacity | 124 Gbit/s |
| Forwarding rate | 92.25 Mpps |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 11.5 - 52 V |
| Power over Ethernet (PoE) power per port | 34.2 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | 10 - 95 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.11 kg |
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Switching capacity | 360 Gbit/s |
| Form factor | 1U |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -5 - 40 °C |
| Product colour | White |
| Power Consumption | 720W |
| Compliance certificates | CE |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Switching capacity | 360 Gbit/s |
| Forwarding rate | 238.095 Mpps |
| Throughput | 160 Gbit/s |
| Reset button | Yes |
| Product colour | White |
| Housing material | Steel |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Input current | 10:00 AM |
| DC input voltage | 52 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Power consumption | 720 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 167 Mpps |
| Throughput | 112 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 820 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 341.2 BTU/h |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Packet buffer memory | 2 MB |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| LED indicators | System |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
