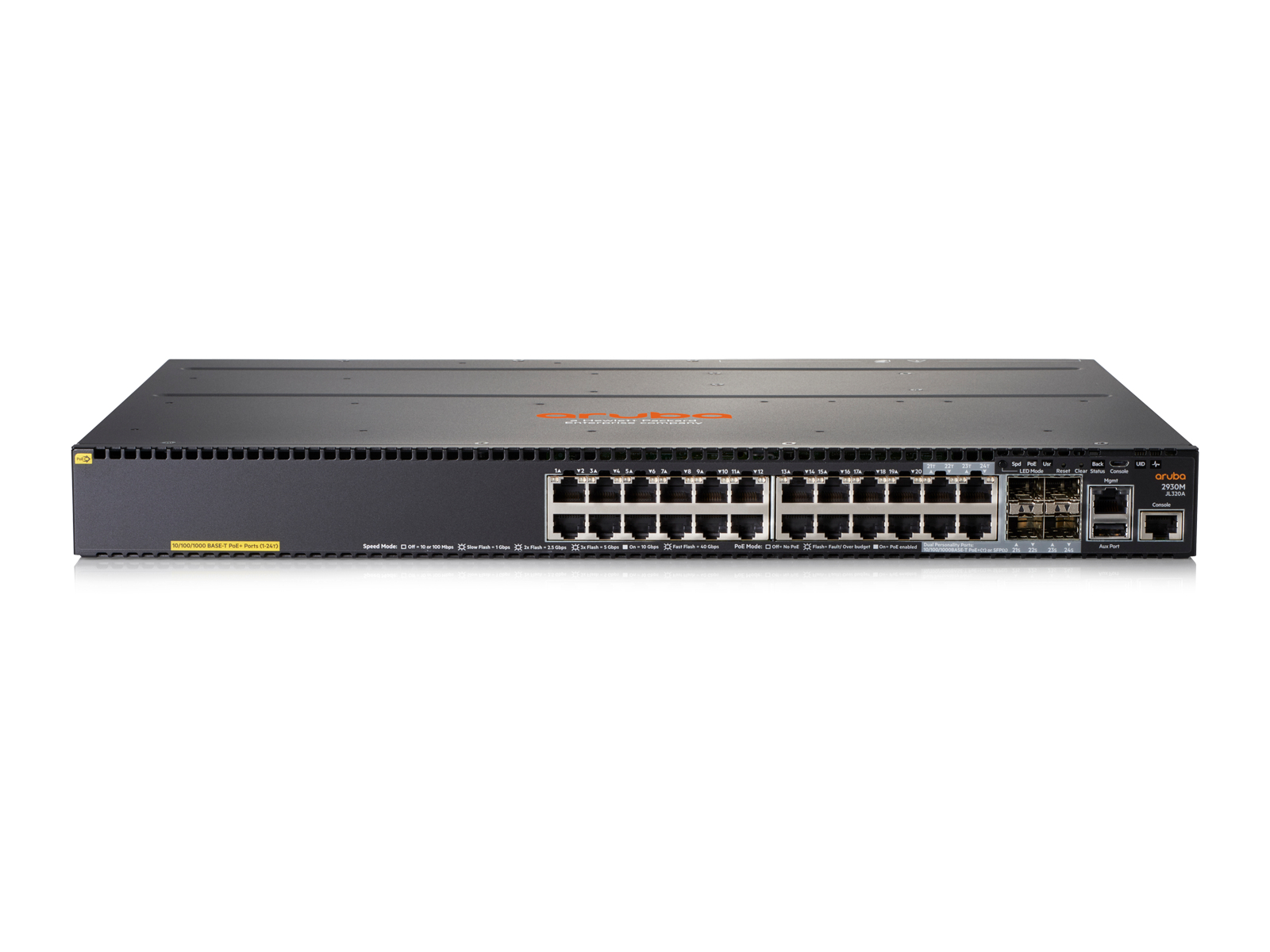

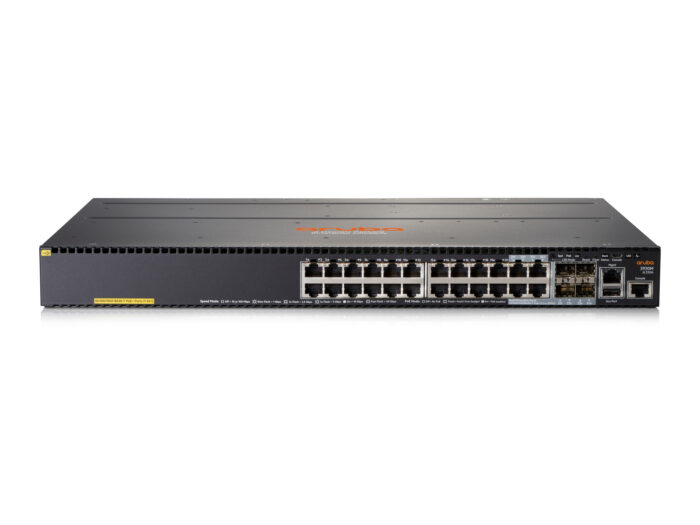

HPE Aruba JL320A Networking 2930M 24G PoE+ 1‑slot Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Black |
| Form Factor | 1U |
| Power consumption | 470 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Throughput | 95.2 Mpps |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 150 BTU/h |
| VLAN support | Yes |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 324.3 mm |
| Weight | 4.5 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Harmonized System (HS) code | 85176990 |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
HPE Aruba JL320A Networking 2930M 24G PoE+ 1‑slot Switch
| Brand | HPE |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Black |
| Form Factor | 1U |
| Power consumption | 470 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Throughput | 95.2 Mpps |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 150 BTU/h |
| VLAN support | Yes |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 324.3 mm |
| Weight | 4.5 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Harmonized System (HS) code | 85176990 |
Description
HPE Aruba JL320A Networking 2930M 24G PoE+ 1‑slot Switch
The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch offices. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, HPE Smart Rate, PoE+, robust QoS, SDN and requires no software licensing.
What’s new
– Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and on-premise with Aruba Airwave.
– Simplify with Zero Touch Provisioning and cloud-based Aruba Central support.
– Scale with modular 10 chassis stacking and up to 1440W PoE+.
– Modular 10GbE and 40GbE uplinks and HPE Smart Rate multi-gigabit support.
– Optimized for innovative SDN applications with OpenFlow.
Features
High-Performance Layer 3 Access Switches
– The Aruba 2930M Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
– Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
– Pay as you grow modular stacking (10 chassis) and modular 10GbE (SFP+) and 40GbE (QSFP+) uplinks. HPE Smart Rate multi-gigabit Ethernet support for high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE+ is needed.
– Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Tunnel Node, sFlow, IPv6 with no software licensing required.
– Designed with a power ProVision ASIC and support for OpenFlow, the Aruba 2930M is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.
Performance and Power at the Edge
– The Aruba 2930M Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
– Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
– Plug and play with up to 10 chassis stacking allowing automated failover enhances network resiliency and RPS support delivers power redundancy.
– Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones and can easily scale to 1440W.
Security and Quality of Service You Can Rely On
– The Aruba 2930M Switch Series includes security and quality of services (QoS) features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
– Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
– Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, port security, and MAC address lockout.
– Tunneled Node to transport network traffic on a per-port basis to the Aruba controller delivering authentication and network policies applied and enforced at the controller.
Simplify with Integrated Wired/Wireless Management
– The Aruba 2930M Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
– Aruba Airwave Network Management software provides an on-premise network management platform for wired and wireless network devices.
– Cloud-based management with Zero Touch Provisioning supported by Aruba Central.
– RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
– Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Technical Table
| Brand | HPE |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Black |
| Form Factor | 1U |
| Power consumption | 470 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Throughput | 95.2 Mpps |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 150 BTU/h |
| VLAN support | Yes |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 324.3 mm |
| Weight | 4.5 kg |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Harmonized System (HS) code | 85176990 |
