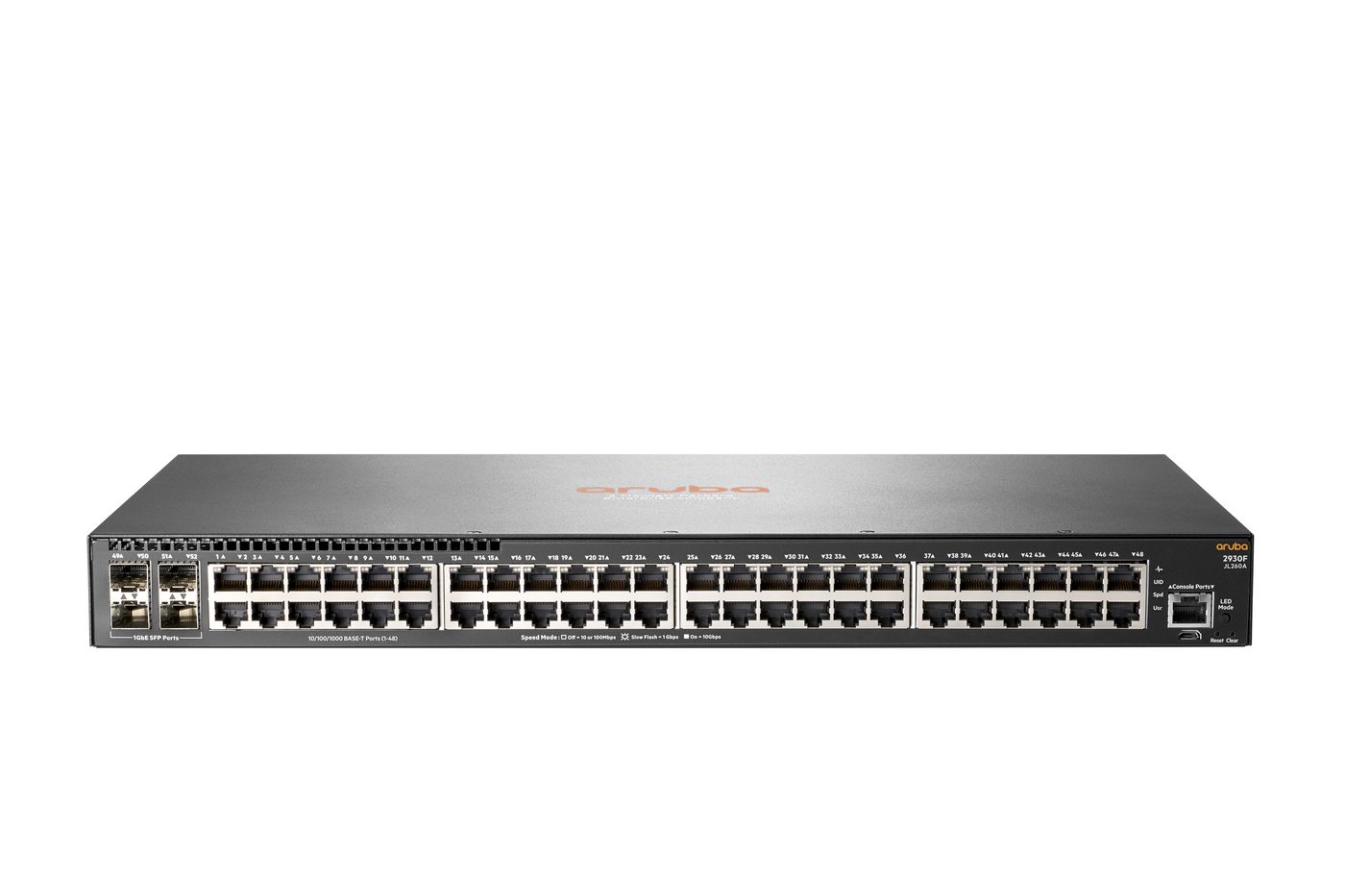

HP Aruba 2930F JL260A 48 Port Managed Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Grey |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 46.6 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-F, 100BASE-TX, 1000BASE-T |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-F, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Throughput | 77.4 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Routing protocols | IP |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 32.7 W |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 100 BTU/h |
| VLAN support | Yes |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 246.3 mm |
| Weight | 3.1 kg |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, Jun 11
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Grey |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 46.6 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-F, 100BASE-TX, 1000BASE-T |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-F, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Throughput | 77.4 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Routing protocols | IP |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 32.7 W |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 100 BTU/h |
| VLAN support | Yes |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 246.3 mm |
| Weight | 3.1 kg |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, Jun 11
Dispatch time:
Loading timer...
Delivery Date & Time for:
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Description
HP Aruba 2930F JL260A 48 Port Managed Switch
High-performance Access Layer Switches
The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1 GbE or 10 GbE uplinks and PoE+ models deliver right-size network access performance.
Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.
Performance and Power at the Edge
The HPE Aruba Networking 2930F Switch Series is designed with a powerful ProVision ASIC to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
HPE Aruba Networking Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
The HPE Aruba Networking 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplified Management for Your Network
The HPE Aruba Networking 2930F Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning supported by HPE Aruba Networking Central.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Technical Table
| Brand | HPE |
| Type | Network Switch – Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Product colour | Grey |
| Switch type | Managed |
|
Form factor |
1U |
| Power consumption | 46.6 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-F, 100BASE-TX, 1000BASE-T |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-F, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Throughput | 77.4 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast support | Yes |
| Routing protocols | IP |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Power supply included | Yes |
| AC input voltage | 200 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 32.7 W |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 100 BTU/h |
| VLAN support | Yes |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 246.3 mm |
| Weight | 3.1 kg |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
BESTSELLER PRODUCTS
SKU: USW-FLEX
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 5 |
| Switch layer | L2 |
| Switching capacity | 10 Gbps |
| Power consumption (max) | 46 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Product colour | White |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Switch type | Managed |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames support | Yes |
| Wall mountable | Yes |
| International Protection (IP) code | IP55 |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Status |
| Rack mounting | No |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Status |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 122.5 mm |
| Depth | 107.1 mm |
| Height | 28 mm |
| Weight | 230 g |
Available on Backorder
Get Instant Price
SKU: USW-FLEX-MINI-3
In Stock
£67.22£80.66 Ex VatInc Vat
SKU: USW-LITE-16-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 16 |
| Power consumption (max) | 45 W |
| Product colour | white |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Wall mountable | Yes |
| Product colour | White |
| LED indicators | Network, PoE, System |
| Certification | CE, FCC, IC |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 191.7 mm |
| Depth | 185 mm |
| Height | 43.7 mm |
| Weight | 1.2 kg |
| Product colour | White |
| Harmonized System (HS) code | 85176990 |
| Certification | CE, FCC, IC |
In Stock
£156.33£187.60 Ex VatInc Vat
SKU: USW-Aggregation
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 8 |
| Power consumption (max) | 364 W |
| Form factor | 1U |
| Product colour | Silver |
| Housing material | Galvanized steel |
| Rack mounting | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| SFP+ module slots quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | No |
| 10G support | Yes |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| Throughput | 80 Gbit/s |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | System |
| Housing material | Galvanized steel |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| LED indicators | System |
| Power consumption (max) | 30 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 120 mm |
| Height | 43.7 mm |
| Weight | 2.65 kg |
| Rack mount kit | Yes |
| Cables included | AC |
| Harmonized System (HS) code | 85176990 |
| Rack mount kit | Yes |
| Cables included | AC |
In Stock
£203.78£244.54 Ex VatInc Vat
SKU: UISP-S-PRO
In Stock
£295.28£354.34 Ex VatInc Vat
SKU: USW-Pro-24
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L3 |
| Ports | 24 |
| Power consumption (max) | 30 W |
| Product colour | Silver |
| Switch type | Managed |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 3.5 kg |
| Harmonized System (HS) code | 85176990 |
In Stock
£306.50£367.80 Ex VatInc Vat
SKU: USW-Enterprise-8-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 8 |
| Switch layer | L3 |
| Switching capacity | 80 Gbit/s |
| Power Consumption Max | 120 W |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -5 - 45 °C |
| Product colour | Stainless steel |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2:00 AM |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Width | 248 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
| Harmonized System (HS) code | 85176990 |
| Manual | Yes |
In Stock
£349.72£419.66 Ex VatInc Vat
SKU: SG3210XHP-M2
In Stock
£352.58£423.10 Ex VatInc Vat
SKU: USW-Pro-48
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L3 |
| Ports | 48 |
| Power consumption (max) | 60 W |
| Product colour | Silver |
| Switch type | Managed |
| VLAN support | Yes |
| Form factor | 1U |
| Rack mounting | Yes |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.944 Mpps |
| Authentication type | IEEE 802.1x, RADIUS |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC ETSI300-019-1.4 |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, Speed |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.22 A |
| DC input voltage | 11.5 V |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4 kg |
| User guide | Yes |
| Harmonized System (HS) code | 85176990 |
| User guide | Yes |
In Stock
£460.06£552.07 Ex VatInc Vat
SKU: USW-Pro-Max-24-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP+ modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 2 |
| VLAN support | Yes |
| 10G support | Yes |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Link, Network, Speed, Status |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 50 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.1 kg |
| Rack mount kit | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| LED indicators | Link, Network, Speed, Status |
| Rack mount kit | Yes |
| Cables included | Power |
In Stock
£581.50£697.80 Ex VatInc Vat
SKU: USW-ENTERPRISEXG-24
In Stock
£952.94£1,143.53 Ex VatInc Vat
Reviews
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
