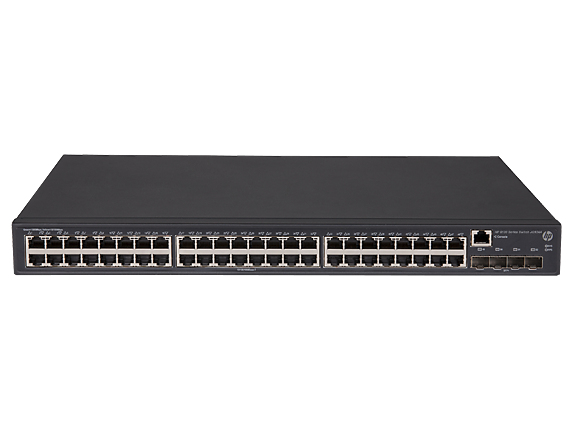

HPE SWITCH 5130-48G-4SFP+ EI L3 (JG934A)
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Buy new:
Get Instant Price
Delivery Date:
Tomorrow, May 7
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
Description
HPE SWITCH 5130-48G-4SFP+ EI L3 (JG934A)
HPE SWITCH 5130-48G-4SFP+ EI L3
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 3 MB |
| Stackable | Yes |
| Physical stacking (units) | 9 |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Technical details | |
| Physical stacking (units) | 9 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Data transmission | |
| Throughput | 130.9 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| Packet buffer memory | 3 MB |
| MAC address table | 16384 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Memory | |
| Packet buffer memory | 3 MB |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 45 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 38 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 260 mm |
| Height | 43.6 mm |
| Weight | 5 kg |
Technical Table
