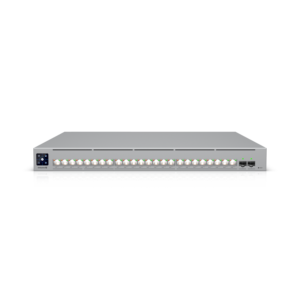

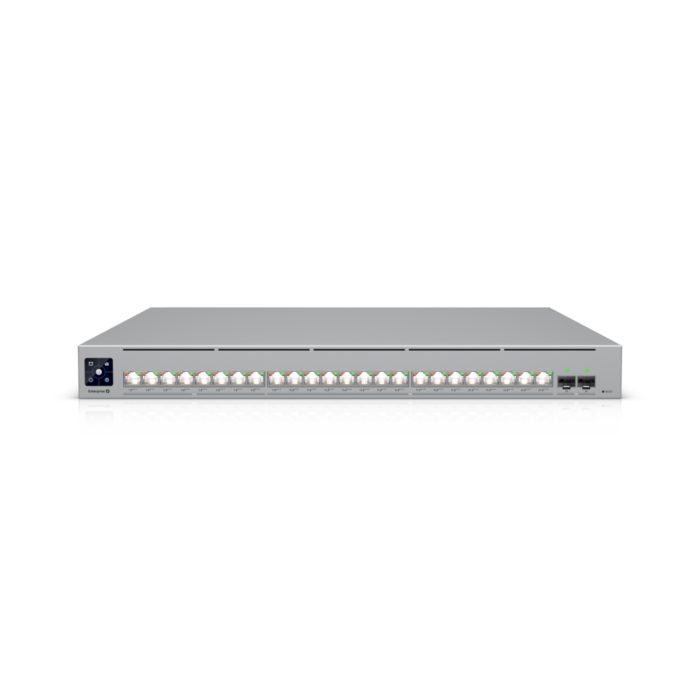

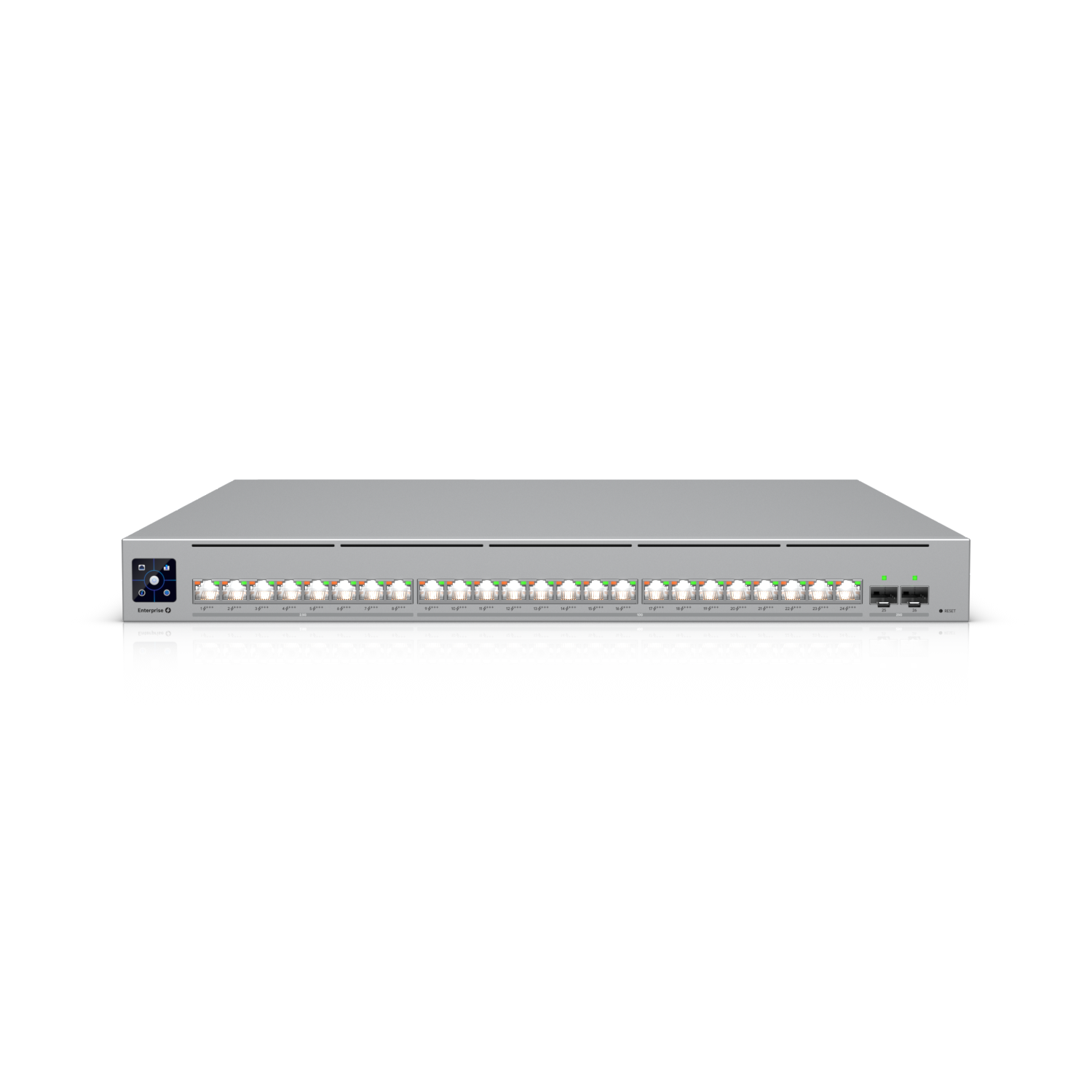

Ubiquiti ECS-24S-PoE Enterprise Campus 24 PoE Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Ubiquiti |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 16 x 10Gb Ethernet + 2 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 1050 W |
| Performance | Switching capacity: 460 Gbps Non-blocking switching throughput: 230 Gbps Forwarding rate: 342 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 12KV ESD Protector (air-gap discharge), 12KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44.24 cm x 49.6 cm x 4.37 cm |
| Weight | 9.46 kg |
| Designed For | P/N: UACC-AOC-SFP28-5M |
| Device Type | Switch – 24 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 16 x 10Gb Ethernet + 2 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 1050 W |
| Performance | Switching capacity: 460 Gbps Non-blocking switching throughput: 230 Gbps Forwarding rate: 342 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 12KV ESD Protector (air-gap discharge), 12KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Built-in Devices | 4 hot-swap fans, 1.3″ LCM touch screen display |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 600 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| Compliant Standards | ESD, FCC, IC |
| Width | 44.24 cm |
| Depth | 49.6 cm |
| Height | 4.37 cm |
| Weight | 9.46 kg |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 95% (non-condensing) |
Buy new:
Get Instant Price
Delivery Date:
Monday, May 18
Order Within:
Loading timer...
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
Ubiquiti ECS-24S-PoE Enterprise Campus 24 PoE Switch
| Brand | Ubiquiti |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 16 x 10Gb Ethernet + 2 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 1050 W |
| Performance | Switching capacity: 460 Gbps Non-blocking switching throughput: 230 Gbps Forwarding rate: 342 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 12KV ESD Protector (air-gap discharge), 12KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44.24 cm x 49.6 cm x 4.37 cm |
| Weight | 9.46 kg |
| Designed For | P/N: UACC-AOC-SFP28-5M |
| Device Type | Switch – 24 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 16 x 10Gb Ethernet + 2 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 1050 W |
| Performance | Switching capacity: 460 Gbps Non-blocking switching throughput: 230 Gbps Forwarding rate: 342 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 12KV ESD Protector (air-gap discharge), 12KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Built-in Devices | 4 hot-swap fans, 1.3″ LCM touch screen display |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 600 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| Compliant Standards | ESD, FCC, IC |
| Width | 44.24 cm |
| Depth | 49.6 cm |
| Height | 4.37 cm |
| Weight | 9.46 kg |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 95% (non-condensing) |
Description
Ubiquiti ECS-24S-PoE Enterprise Campus 24 PoE Switch
Other Range of Ubiquiti Unifi 24 Ports Switches
SKU: ECS-24S-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 16 x 10Gb Ethernet + 2 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 1050 W |
| Performance | Switching capacity: 460 Gbps Non-blocking switching throughput: 230 Gbps Forwarding rate: 342 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 12KV ESD Protector (air-gap discharge), 12KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44.24 cm x 49.6 cm x 4.37 cm |
| Weight | 9.46 kg |
| Designed For | P/N: UACC-AOC-SFP28-5M |
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 16 x 10Gb Ethernet + 2 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE Class 4 |
| PoE Budget | 1050 W |
| Performance | Switching capacity: 460 Gbps Non-blocking switching throughput: 230 Gbps Forwarding rate: 342 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ARP entries: 128000 Packet buffer size: 8 MB IPv4 routes (static): 256000 |
| MAC Address Table Size | 128K entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, standard mode, reset button, DHCP relay, Inter-VLAN Routing, static routing, LACP, advanced IGMP configuration, DHCP snooping, DHCP guardian, egress rate limit, flow control, MAC and IP-based ACLs support, Device isolation with ACLs, MAC based port restriction, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 12KV ESD Protector (air-gap discharge), 12KV ESD Protector (contact discharge), IGMP snooping, 802.1x authentication |
| Built-in Devices | 4 hot-swap fans, 1.3" LCM touch screen display |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 600 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| Compliant Standards | ESD, FCC, IC |
| Width | 44.24 cm |
| Depth | 49.6 cm |
| Height | 4.37 cm |
| Weight | 9.46 kg |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
