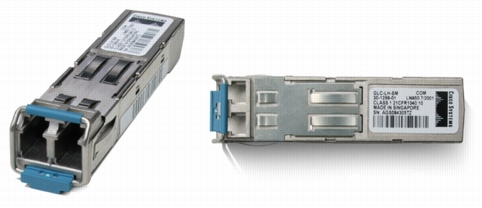

Cisco GLC-BX-D network transceiver module Fiber optic
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Cisco |
| Product Type | Network transceiver module |
| SFP transceiver type | Fiber optic |
| Cabling technology | 1000BASE-BX10 |
| Maximum data transfer rate | 1000 Mbit/s |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 1480 nm |
| Tx wavelength (max) | 1500 nm |
| Rx wavelength (min) | 1260 nm |
| Rx wavelength (max) | 1360 nm |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Weight | 75 g |
Buy new:
Get Instant Price
Delivery Date:
Order Within:
Deliver to:
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
| Brand | Cisco |
| Product Type | Network transceiver module |
| SFP transceiver type | Fiber optic |
| Cabling technology | 1000BASE-BX10 |
| Maximum data transfer rate | 1000 Mbit/s |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 1480 nm |
| Tx wavelength (max) | 1500 nm |
| Rx wavelength (min) | 1260 nm |
| Rx wavelength (max) | 1360 nm |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Weight | 75 g |
Get Instant Price
Delivery Date:
Dispatch time:
Delivery Date & Time for:
Returns
Support
Payment
Secure transaction
Description
Cisco GLC-BX-D network transceiver module Fiber optic
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1000BASE-BX10-D and 1000BASE-BX10-U SFP for Single-Fiber Bidirectional Applications
The 1000BASE-BX-D and 1000BASE-BX-U SFPs, compatible with the IEEE 802.3ah 1000BASE-BX10-D and 1000BASE-BX10-U standards, operate on a single strand of standard SMF.
A 1000BASE-BX10-D device is always connected to a 1000BASE-BX10-U device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices: 1000BASE-BX10-D transmits a 1490-nm channel and receives a 1310-nm signal, whereas 1000BASE-BX10-U transmits at a 1310-nm wavelength and receives a 1490-nm signal. Note in Figure 3 the presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1310-nm and 1490-nm light paths.
The GLC-BX-D and GLC-BX-U SFPs also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Technical Table
| Brand | Cisco |
| Product Type | Network transceiver module |
| SFP transceiver type | Fiber optic |
| Cabling technology | 1000BASE-BX10 |
| Maximum data transfer rate | 1000 Mbit/s |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 1480 nm |
| Tx wavelength (max) | 1500 nm |
| Rx wavelength (min) | 1260 nm |
| Rx wavelength (max) | 1360 nm |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Weight | 75 g |
