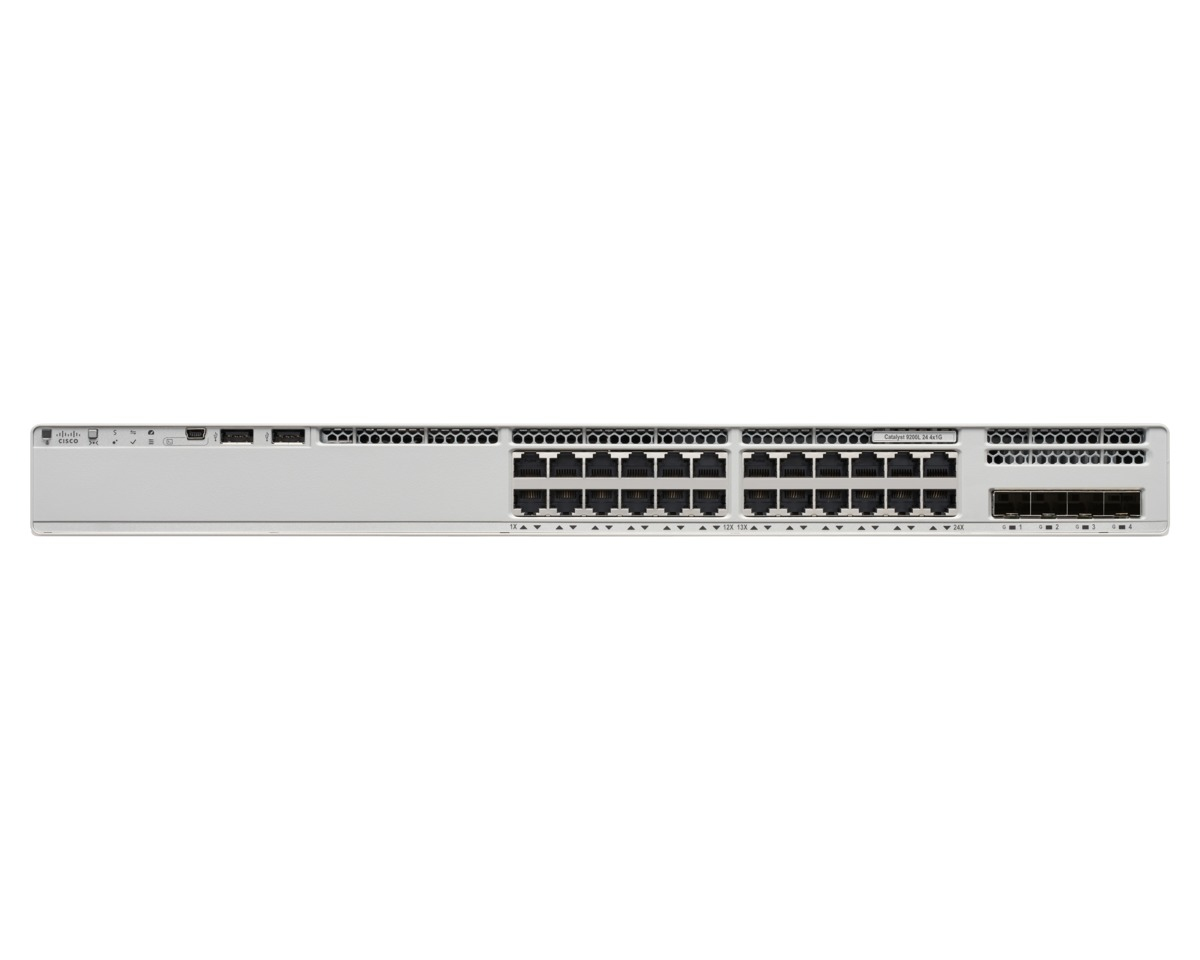

Cisco Catalyst C9200-24PXG-A Managed Network Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Cisco |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Power | 740 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 3000 |
| Number of VLANs | 1024 |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Multicast MAC address table | 1000 entries |
| Number of VLANs | 1024 |
| Jumbo frames | 9198 |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 125 W |
| Redundant power supply (RPS) support | Yes |
| Input current | 12 – 6 A |
| Security algorithms | 128-bit AES |
| Access Control List (ACL) | Yes |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 5.5 kg |
Buy new:
Excl. VAT: £4,002.50
Incl. VAT: £4,803.00
Delivery Date:
Monday, Apr 27
Order Within:
Loading timer...
Deliver to:
In Stock
In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
Cisco Catalyst C9200-24PXG-A Managed Network Switch
| Brand | Cisco |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Power | 740 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 3000 |
| Number of VLANs | 1024 |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Multicast MAC address table | 1000 entries |
| Number of VLANs | 1024 |
| Jumbo frames | 9198 |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 125 W |
| Redundant power supply (RPS) support | Yes |
| Input current | 12 – 6 A |
| Security algorithms | 128-bit AES |
| Access Control List (ACL) | Yes |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 5.5 kg |
Description
Cisco Catalyst C9200-24PXG-A Managed Network Switch
Extend Intent-Based Networking Everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Technical Table
| Brand | Cisco |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Power | 740 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 3000 |
| Number of VLANs | 1024 |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Multicast MAC address table | 1000 entries |
| Number of VLANs | 1024 |
| Jumbo frames | 9198 |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 125 W |
| Redundant power supply (RPS) support | Yes |
| Input current | 12 – 6 A |
| Security algorithms | 128-bit AES |
| Access Control List (ACL) | Yes |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 5.5 kg |
Reviews (0)
Buy new:
Excl. VAT: £4,002.50
Incl. VAT: £4,803.00
Delivery Date:
Monday, Apr 27
Dispatch time:
Loading timer...
Delivery Date & Time for:
In Stock
In Stock
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Reviews
There are no reviews yet.
Description
Cisco Catalyst C9200-24PXG-A Managed Network Switch
Extend Intent-Based Networking Everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Technical Table
| Brand | Cisco |
| Type | Network Switch |
| Switch Layer | L3 |
| Product colour | Grey |
| Power | 740 W |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 3000 |
| Number of VLANs | 1024 |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Multicast MAC address table | 1000 entries |
| Number of VLANs | 1024 |
| Jumbo frames | 9198 |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 125 W |
| Redundant power supply (RPS) support | Yes |
| Input current | 12 – 6 A |
| Security algorithms | 128-bit AES |
| Access Control List (ACL) | Yes |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| IPv6 multicast entries | 1500 |
| IPv4 multicast entries | 3000 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Certification | RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Width | 445 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 5.5 kg |
BESTSELLER PRODUCTS
SKU: USW-FLEX-MINI-3
In Stock
Excl. VAT: £66.98
Incl. VAT: £80.37
Incl. VAT: £80.37
SKU: USW-LITE-8-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 8 |
| Switch layer | L2 |
| Switching capacity | 8 Gbit/s |
| Form factor | 1U |
| Power consumption (typical) | 52 W |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -15 - 40 °C |
| Product colour | White |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 163.7 mm |
| Depth | 99.6 mm |
| Height | 31.7 mm |
| Weight | 450 g |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Product colour | White |
| Stackable | No |
| Rack mounting | No |
| LED indicators | Yes |
In Stock
Excl. VAT: £86.03
Incl. VAT: £103.24
Incl. VAT: £103.24
SKU: USW-FLEX-MINI-5
In Stock
Excl. VAT: £109.08
Incl. VAT: £130.89
Incl. VAT: £130.89
SKU: USW-LITE-16-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 16 |
| Power consumption (max) | 45 W |
| Product colour | white |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Wall mountable | Yes |
| Product colour | White |
| LED indicators | Network, PoE, System |
| Certification | CE, FCC, IC |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 191.7 mm |
| Depth | 185 mm |
| Height | 43.7 mm |
| Weight | 1.2 kg |
| Product colour | White |
| Harmonized System (HS) code | 85176990 |
| Certification | CE, FCC, IC |
In Stock
Excl. VAT: £147.60
Incl. VAT: £177.12
Incl. VAT: £177.12
SKU: USW-Enterprise-8-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 8 |
| Switch layer | L3 |
| Switching capacity | 80 Gbit/s |
| Power Consumption Max | 120 W |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -5 - 45 °C |
| Product colour | Stainless steel |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2:00 AM |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Width | 248 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
| Harmonized System (HS) code | 85176990 |
| Manual | Yes |
In Stock
Excl. VAT: £340.14
Incl. VAT: £408.17
Incl. VAT: £408.17
SKU: SG3210XHP-M2
In Stock
Excl. VAT: £352.62
Incl. VAT: £423.15
Incl. VAT: £423.15
SKU: USW-Pro-Max-24-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP+ modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 2 |
| VLAN support | Yes |
| 10G support | Yes |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Link, Network, Speed, Status |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 50 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.1 kg |
| Rack mount kit | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| LED indicators | Link, Network, Speed, Status |
| Rack mount kit | Yes |
| Cables included | Power |
In Stock
Excl. VAT: £545.50
Incl. VAT: £654.60
Incl. VAT: £654.60
SKU: USW-PRO-48-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L2/L3 |
| Power consumption | 600 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Switch type | Managed |
| VLAN support | Yes |
| Form factor | 1U |
| Product colour | Silver |
| Rack mounting | Yes |
| Switch type | Managed |
| Switch layer | L2/L3 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Throughput | 88000 Mpps |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 130.944 Mpps |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Speed, System |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Number of power supply units | 1 |
| Input current | 11.54 A |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 600 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.25 kg |
| Harmonized System (HS) code | 85176990 |
In Stock
Excl. VAT: £755.50
Incl. VAT: £906.60
Incl. VAT: £906.60
SKU: USW-Enterprise-48-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Switching capacity | 360 Gbit/s |
| Form factor | 1U |
| AC input voltage | 100 - 240 V |
| Operating temperature (T-T) | -5 - 40 °C |
| Product colour | White |
| Power Consumption | 720W |
| Compliance certificates | CE |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Switching capacity | 360 Gbit/s |
| Forwarding rate | 238.095 Mpps |
| Throughput | 160 Gbit/s |
| Reset button | Yes |
| Product colour | White |
| Housing material | Steel |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Input current | 10:00 AM |
| DC input voltage | 52 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
In Stock
Excl. VAT: £1,092.00
Incl. VAT: £1,310.40
Incl. VAT: £1,310.40
Reviews
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
