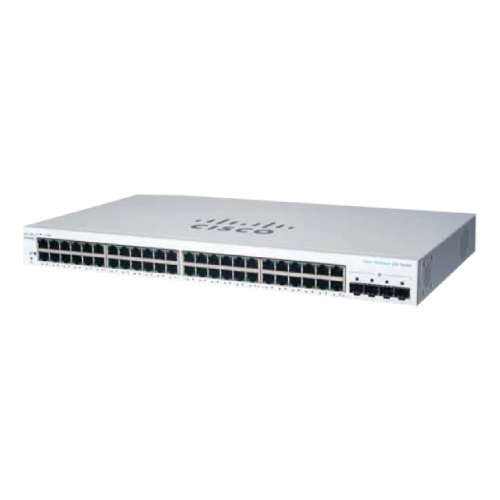

Cisco CBS220-48T-4G 48-Port Smart Managed Rackmount Gigabit Switch w/ 4 x 1G SFP Ports, 220 Series
Description
Cisco CBS220-48T-4G 48-Port Smart Managed Rackmount Gigabit Switch w/ 4 x 1G SFP Ports, 220 Series
Cisco CBS220-48T-4G 48-Port Smart Managed Rackmount Gigabit Switch w/ 4 x 1G SFP Ports, 220 Series
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Multicast MAC address table | 8192 entries |
| Number of VLANs | 256 |
| Jumbo frames | 9216 |
| Packet buffer memory | 12 MB |
| MAC address table | 8192 entries |
| Switching capacity | 104 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 74.38 Mpps |
| Performance | |
| Packet buffer memory | 12 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast MAC address table | 8192 entries |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Memory | |
| Packet buffer memory | 12 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Reset button | Yes |
| Country of origin | China |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Market segment | Business |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Power | |
| Power plug type | Type C |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 – 70 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Heat dissipation | 124.54 BTU/h |
| Weight & dimensions | |
| Width | 257 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 3.18 kg |
| Packaging data | |
| Package width | 419.1 mm |
| Package depth | 574 mm |
| Package height | 109.2 mm |
| Package weight | 5.12 kg |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Packaging content | Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Country of origin | China |
Technical Table
