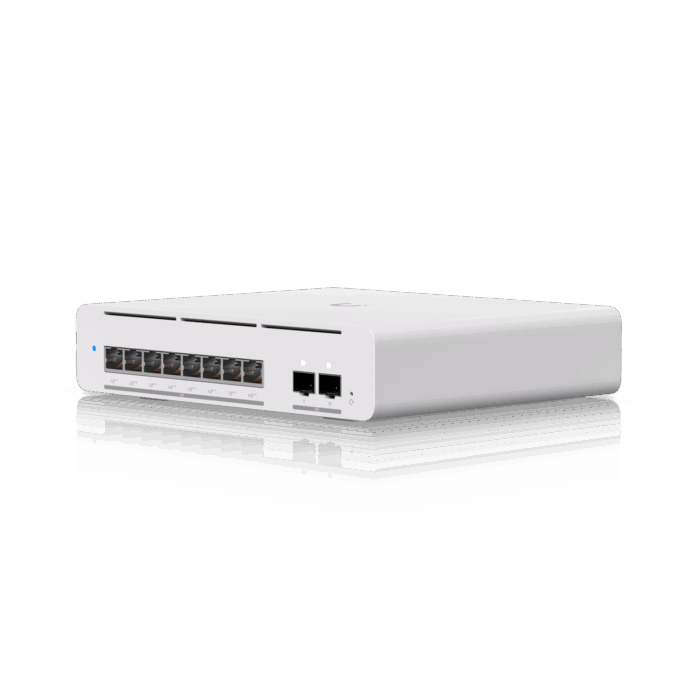

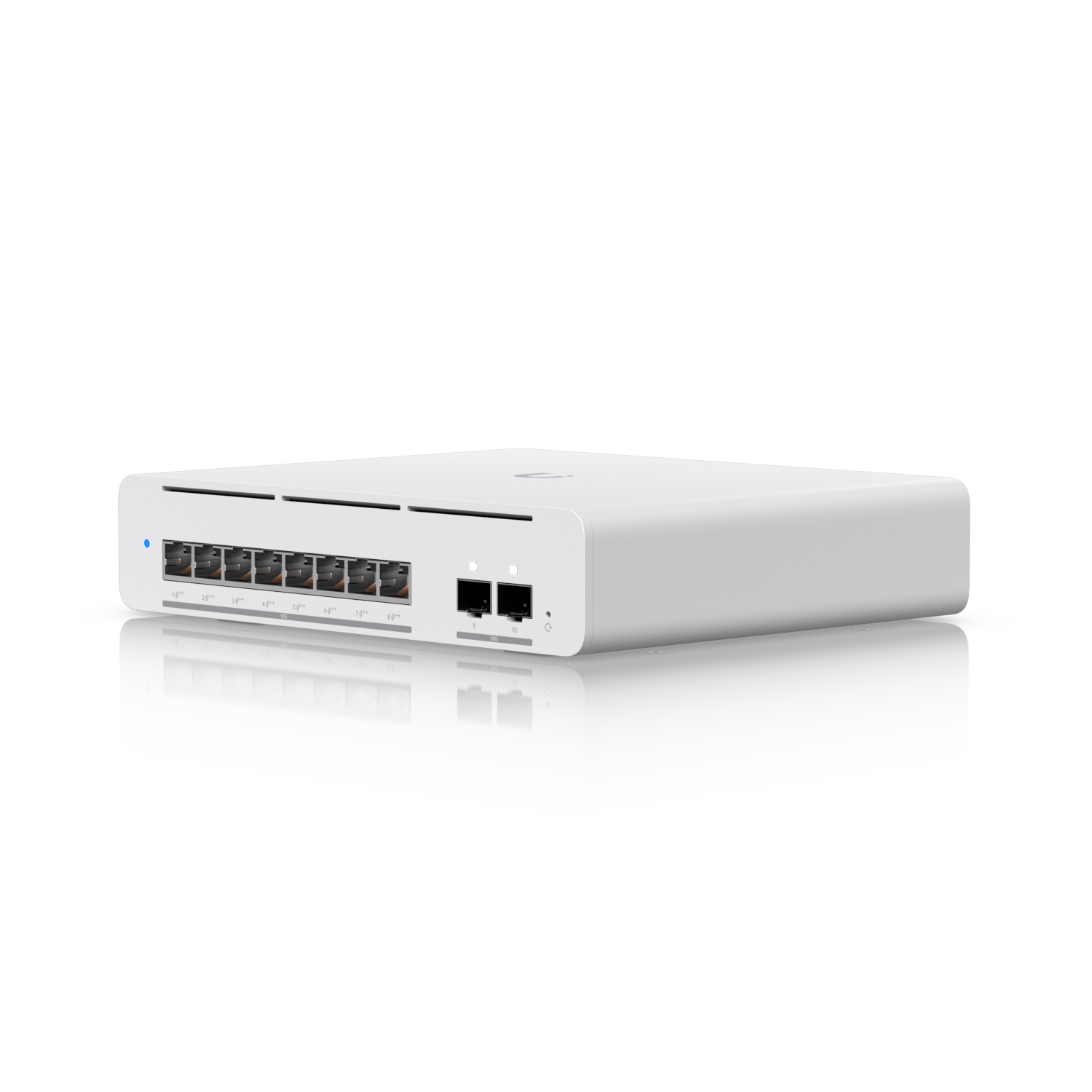

Ubiquiti UniFi 8-Port L3 Managed USW-Pro-XG-8-PoE 10GbE PoE Access Switch
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
| Brand | Ubiquiti |
| Type | Network Switch – Managed |
| Ports | 8 |
| Switch layer | L3 |
| Power consumption | 155 W |
| Ports type | Ethernet (100/1000/10000) |
| Power over Ethernet (PoE) | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| 10G Ethernet (copper) ports quantity | 8 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 149 Mpps |
| Throughput | 100 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | No |
| Power consumption (max) | 220 W |
| Power supply included | Yes |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 155 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Width | 210.4 mm |
| Depth | 173.8 mm |
| Height | 43.7 mm |
| Weight | 1.6 kg |
| Manual | Yes |
| Cables included | Power |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| LED indicators | System |
| Manual | Yes |
| Cables included | Power |
Buy new:
Excl. VAT: £386.50
Incl. VAT: £463.80
Delivery Date:
Monday, May 18
Order Within:
Loading timer...
Deliver to:
2 In Stock
2 In Stock
Secure Payment method
Returns
14 day refund/replacements
Payments
Secure Transactions
Support
Live chat Support
Not Sure How this Product will Suit You?
[product_pdf]
Ubiquiti UniFi 8-Port L3 Managed USW-Pro-XG-8-PoE 10GbE PoE Access Switch
| Brand | Ubiquiti |
| Type | Network Switch – Managed |
| Ports | 8 |
| Switch layer | L3 |
| Power consumption | 155 W |
| Ports type | Ethernet (100/1000/10000) |
| Power over Ethernet (PoE) | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| 10G Ethernet (copper) ports quantity | 8 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 149 Mpps |
| Throughput | 100 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | No |
| Power consumption (max) | 220 W |
| Power supply included | Yes |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 155 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Width | 210.4 mm |
| Depth | 173.8 mm |
| Height | 43.7 mm |
| Weight | 1.6 kg |
| Manual | Yes |
| Cables included | Power |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| LED indicators | System |
| Manual | Yes |
| Cables included | Power |
Description
Ubiquiti UniFi 8-Port L3 Managed USW-Pro-XG-8-PoE 10GbE PoE Access Switch
TheUbiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE) is a compact, fully managed Layer 3 switch designed for high-performance networking in small to medium-sized environments. It combines advanced switching capabilities with robust Power over Ethernet (PoE) support, making it ideal for powering devices like access points, IP cameras, and VoIP phones.
Key Features
- Eight (8) 10GbE RJ45 ports (10G/5G/2.5G/1G/100M) supporting up to 60W PoE++ per port
- Two (2) 10G SFP+ uplinks for high-speed fibre connectivity
- Total PoE budget of 155W
- Layer 3 switching with inter-VLAN routing, static routes, DHCP server, and relay
- Etherlighting visual port activity indicators (see accessories tab for Etherlighting cables).
- 200 Gbps switching capacity and 149 Mpps forwarding rate
- Supports up to 1,000 VLANs and 32K MAC addresses
- Compact desktop form factor, wall-mountable
Etherlighting and PoE++ Support
The USW-Pro-XG-8-PoE offers eight (8) multi-speed 10GbE RJ45 ports with PoE++ support, delivering a total PoE budget of 155W — ideal for powering next-generation access points, IP cameras, and other high-performance devices. The two (2) 10G SFP+ ports provide robust fibre uplink options, while Etherlighting technology enables intuitive port status monitoring to streamline troubleshooting.
Professional-Grade Performance
With a 200 Gbps switching capacity and 149 Mpps forwarding rate, this switch is engineered for low-latency, high-throughput environments. It supports up to 1,000 VLANs and a MAC address table of 32,000 entries, handling complex network configurations with ease. Layer 3 features such as inter-VLAN routing, DHCP server and relay, and static routing provide advanced traffic segmentation and control.
Technical Table
| Brand | Ubiquiti |
| Type | Network Switch – Managed |
| Ports | 8 |
| Switch layer | L3 |
| Power consumption | 155 W |
| Ports type | Ethernet (100/1000/10000) |
| Power over Ethernet (PoE) | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| 10G Ethernet (copper) ports quantity | 8 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 149 Mpps |
| Throughput | 100 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | No |
| Power consumption (max) | 220 W |
| Power supply included | Yes |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 155 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Width | 210.4 mm |
| Depth | 173.8 mm |
| Height | 43.7 mm |
| Weight | 1.6 kg |
| Manual | Yes |
| Cables included | Power |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| LED indicators | System |
| Manual | Yes |
| Cables included | Power |
Reviews (0)
Buy new:
Excl. VAT: £386.50
Incl. VAT: £463.80
Delivery Date:
Monday, May 18
Dispatch time:
Loading timer...
Delivery Date & Time for:
2 In Stock
2 In Stock
Returns
14 days return/refund
Support
Payment
Secure transaction
Secure Payment method
Reviews (0)
Reviews
There are no reviews yet.
Description
Ubiquiti UniFi 8-Port L3 Managed USW-Pro-XG-8-PoE 10GbE PoE Access Switch
TheUbiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE) is a compact, fully managed Layer 3 switch designed for high-performance networking in small to medium-sized environments. It combines advanced switching capabilities with robust Power over Ethernet (PoE) support, making it ideal for powering devices like access points, IP cameras, and VoIP phones.
Key Features
- Eight (8) 10GbE RJ45 ports (10G/5G/2.5G/1G/100M) supporting up to 60W PoE++ per port
- Two (2) 10G SFP+ uplinks for high-speed fibre connectivity
- Total PoE budget of 155W
- Layer 3 switching with inter-VLAN routing, static routes, DHCP server, and relay
- Etherlighting visual port activity indicators (see accessories tab for Etherlighting cables).
- 200 Gbps switching capacity and 149 Mpps forwarding rate
- Supports up to 1,000 VLANs and 32K MAC addresses
- Compact desktop form factor, wall-mountable
Etherlighting and PoE++ Support
The USW-Pro-XG-8-PoE offers eight (8) multi-speed 10GbE RJ45 ports with PoE++ support, delivering a total PoE budget of 155W — ideal for powering next-generation access points, IP cameras, and other high-performance devices. The two (2) 10G SFP+ ports provide robust fibre uplink options, while Etherlighting technology enables intuitive port status monitoring to streamline troubleshooting.
Professional-Grade Performance
With a 200 Gbps switching capacity and 149 Mpps forwarding rate, this switch is engineered for low-latency, high-throughput environments. It supports up to 1,000 VLANs and a MAC address table of 32,000 entries, handling complex network configurations with ease. Layer 3 features such as inter-VLAN routing, DHCP server and relay, and static routing provide advanced traffic segmentation and control.
Technical Table
| Brand | Ubiquiti |
| Type | Network Switch – Managed |
| Ports | 8 |
| Switch layer | L3 |
| Power consumption | 155 W |
| Ports type | Ethernet (100/1000/10000) |
| Power over Ethernet (PoE) | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| 10G Ethernet (copper) ports quantity | 8 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 149 Mpps |
| Throughput | 100 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | No |
| Power consumption (max) | 220 W |
| Power supply included | Yes |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 155 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Width | 210.4 mm |
| Depth | 173.8 mm |
| Height | 43.7 mm |
| Weight | 1.6 kg |
| Manual | Yes |
| Cables included | Power |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| LED indicators | System |
| Manual | Yes |
| Cables included | Power |
BESTSELLER PRODUCTS
SKU: USW-FLEX
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 5 |
| Switch layer | L2 |
| Switching capacity | 10 Gbps |
| Power consumption (max) | 46 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Product colour | White |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Switch type | Managed |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Jumbo frames support | Yes |
| Wall mountable | Yes |
| International Protection (IP) code | IP55 |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Status |
| Rack mounting | No |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Status |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 122.5 mm |
| Depth | 107.1 mm |
| Height | 28 mm |
| Weight | 230 g |
Available on Backorder
Get Instant Price
SKU: USW-LITE-16-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Switch Layer | L2 |
| Ports | 16 |
| Power consumption (max) | 45 W |
| Product colour | white |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Wall mountable | Yes |
| Product colour | White |
| LED indicators | Network, PoE, System |
| Certification | CE, FCC, IC |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 191.7 mm |
| Depth | 185 mm |
| Height | 43.7 mm |
| Weight | 1.2 kg |
| Product colour | White |
| Harmonized System (HS) code | 85176990 |
| Certification | CE, FCC, IC |
In Stock
Excl. VAT: £155.34
Incl. VAT: £186.41
Incl. VAT: £186.41
SKU: USW-16-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 16 |
| Switch layer | L2 |
| Power consumption | 42 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Throughput | 18000 Mpps |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 26.78 Mpps |
| Authentication type | IEEE 802.1x, RADIUS |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Activity, Link, PoE, Speed, System |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 48 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 2.8 kg |
In Stock
Excl. VAT: £227.50
Incl. VAT: £273.00
Incl. VAT: £273.00
SKU: UISP-S-PRO
In Stock
Excl. VAT: £292.34
Incl. VAT: £350.80
Incl. VAT: £350.80
SKU: USW-48
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L2 |
| Switching capacity | 52 Gbit/s |
| Power consumption (max) | 40 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -15 - 40 °C |
| Product colour | Silver |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | No |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 77.376 Mpps |
| Certification | CE, FCC, IC |
| Product colour | Silver |
| LED indicators | LAN, System |
| Housing material | Steel |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| LED indicators | LAN, System |
| Power consumption (max) | 40 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 3.9 kg |
In Stock
Excl. VAT: £307.53
Incl. VAT: £369.03
Incl. VAT: £369.03
SKU: USW-48-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L2 |
| Power consumption | 195 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 77.38 Mpps |
| Throughput | 52 Gbit/s |
| Authentication type | RADIUS |
| Certification | CE, FCC, IC |
| Form factor | 1U |
| Product colour | Stainless steel |
| LED indicators | Activity, Link, Speed |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Fanless | Yes |
| LED indicators | Activity, Link, Speed |
| Power consumption (max) | 45 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC/DC |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 4.52 kg |
| Manual | Yes |
In Stock
Excl. VAT: £436.50
Incl. VAT: £523.80
Incl. VAT: £523.80
SKU: USW-Pro-24-POE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 24 |
| Switch layer | L3 |
| Power consumption | 400 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet (PoE) | Yes |
| Management protocols | VigorACS, VigorConnect, Vigor |
| Routing protocols | CDP, EIGRP, OSPF, RIP, VRRP |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IPv4 routes | 64 |
| IGMP snooping | Yes |
| Throughput | 44000 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 88 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 65.472 Mpps |
| Number of VLANs | 1000 |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| Power consumption (max) | 450 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4.3 kg |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Form factor | 1U |
| Product colour | Silver |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| LED indicators | Activity, Link, PoE, Speed, System |
In Stock
Excl. VAT: £540.50
Incl. VAT: £648.60
Incl. VAT: £648.60
SKU: USW-ENTERPRISEXG-24
In Stock
Excl. VAT: £874.50
Incl. VAT: £1,049.40
Incl. VAT: £1,049.40
SKU: USW-Pro-Max-48-PoE
Key Features:
| Brand | Ubiquiti |
| Type | Network Switch - Managed |
| Ports | 48 |
| Switch layer | L3 |
| Power consumption | 720 W |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 167 Mpps |
| Throughput | 112 Gbit/s |
| Number of VLANs | 1000 |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Reset button | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | System |
| Housing material | SGCC |
| Rack mounting | Yes |
| Power consumption (max) | 820 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 341.2 BTU/h |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
| Sustainability compliance | Yes |
| Packet buffer memory | 2 MB |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packet buffer memory | 2 MB |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| LED indicators | System |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
In Stock
Excl. VAT: £1,039.50
Incl. VAT: £1,247.40
Incl. VAT: £1,247.40
Reviews
WHAT OUR CLIENTS ARE SAYING
Don't Just Take our Words for it. Here's What Some of Our Customers have to say about their experiences about T.I Digital Solution LTD
Reviews
There are no reviews yet.
